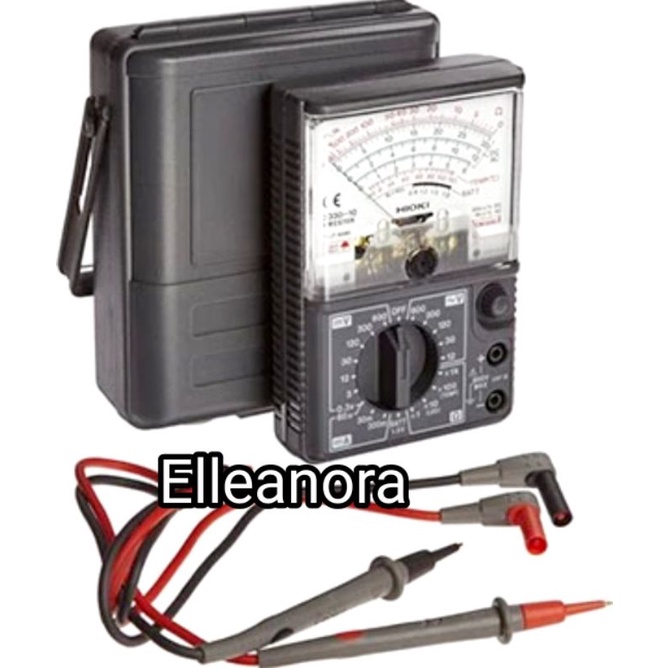

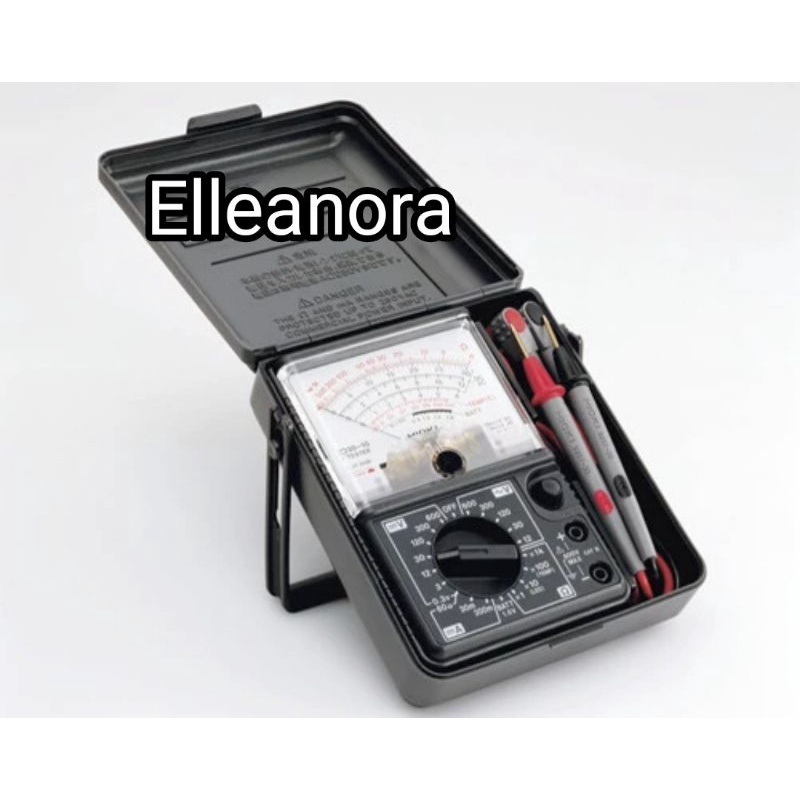

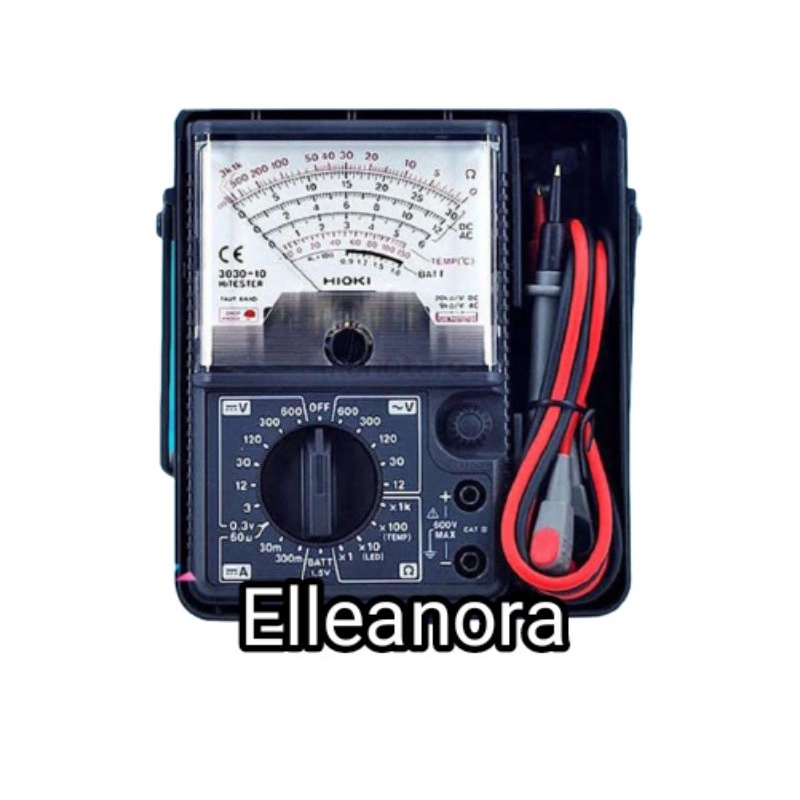

Multitester Hioki 3030-10 Original

Detail Multitester Hioki 3030-10 Original

Multitester Hioki 3030-10 Original

Brand : Hioki
Type: 3030-10
Made in Japan

DC voltage range 0.3 V (16.7 kΩ/V), 3/12/30/120/300/600 V (20 kΩ/V)
Accuracy: ±2.5 % f.s. Max. rated voltage: 600 V
AC voltage range 12 V (9 kΩ/V) Accuracy: ±4 % f.s.
30/120/300/600 V (9 kΩ/V) Accuracy: ±2.5 % f.s.
Average rectifier effective value, Max. rated voltage: 600 V
DC current range 60 µA/30 m/300 mA (300 mV internal voltage drop)
Accuracy: ±3 % f.s.
Resistance range 0 to 3 kΩ (center scale 30 Ω), R × 1, R × 10, R × 100, R × 1 k
Accuracy: ±3 % of scale length
Battery check 0.9 to 1.8 V, load resistance 10 Ω, Accuracy: ±6 % f.s.
Temperature scale Note: The 3030-10 includes a temperature measurement scale, but because the optional Thermister Temperature Probe 9021-01 has been discontinued, the scale is not available for new customers.
Power supply For resistance measurement range, R6P (AA) ×2 batteries
Dimensions and mass 95 mm (3.74 in) W × 141 mm (5.55 in) H × 39 mm (1.54 in) D, 280 g (9.9 oz)
Accessories Test Lead L9207-30 ×1, Spare fuse ×1, R6P (AA) manganese batteries ×2, Instruction manual ×1, Carrying case 9390 ×1
es (Red/ Black each 1)
