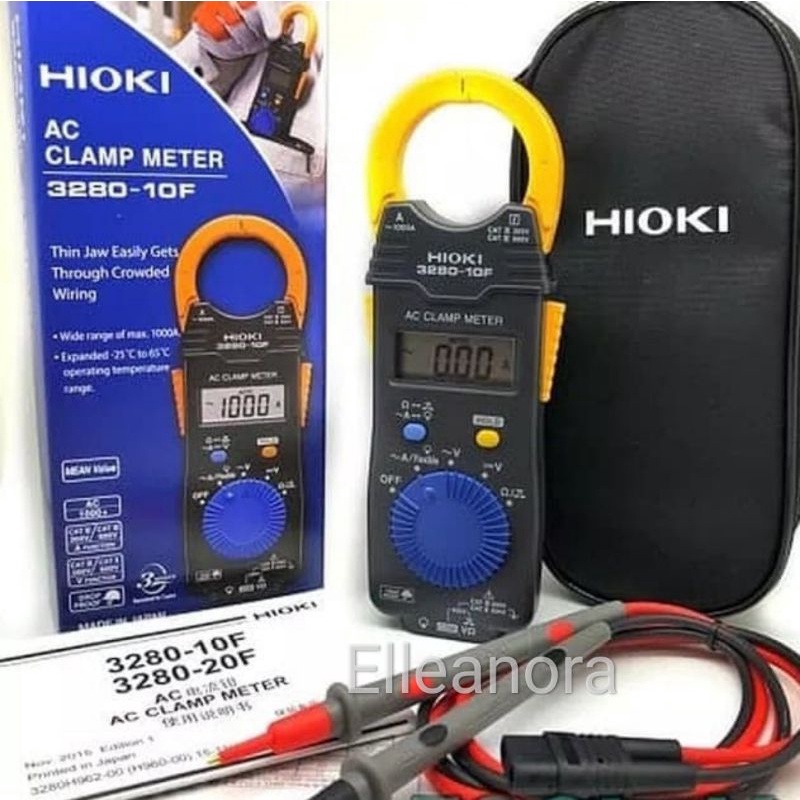

Hioki clamp meters are best-in-class measuring devices incorporating Hioki s expertise in current sensing technology. The 3280-10F is an average rectifying 1000A AC clamp meter that features a broad operating temperature range of -25C to 65C, thin and compact clamp core and optional flexible current sensor that you can attach to let you get into the tightest spots.
CAT IV 300 V (Current) CAT III 600 V (Current) CAT III 300 V (Voltage) CAT II 600 V (Voltage)
Key Features Measure the fundamental waveform component using the average rectified method Expanded -25 C to 65 C operating temperature range Connect the CT6280 flexible sensor to measure up to 4199 A in thick or paired wires Drop proof design withstands drop from a height of 1 meter
Specs: AC Current: 41.99 to 1000 A, 3 ranges (50 to 60 Hz, Average rectified), Basic accuracy: 1.5 % rdg. 5 dgt. DC Voltage: 419.9 mV to 600 V, 5 ranges, Basic accuracy: 1.0 % rdg. 3 dgt. AC Voltage: 4.199 V to 600 V, 4 ranges (45 to 500 Hz, Average rectified), Basic accuracy: 1.8 % rdg. 7 dgt. Crest factor: N/A Resistance: 419.9 to 41.99 M, 6 ranges, Basic accuracy: 2 % rdg. 4 dgt. Other functions: Continuity: Buzzer sounds at 50 40 or less, Data hold, Auto power save, Drop-proof from height of 1 meter Display: LCD, max. 4199 dgt., Display refresh rate: 400 ms Environmental protection: IP40 dustproof and waterproof Power supply: Coin type lithium battery (CR2032) 1, Continuous use 120 hours Core jaw diameter: 33 mm (1.30 in) Dimensions and mass: 57 mm (2.24 in) W 175 mm (6.89 in) H 16 mm (0.63 in) D, 100 g (3.5 oz) Accessories: CARRYING CASE 9398 1, TEST LEAD L9208 1, Coin type lithium battery (CR2032) 1, Instruction manual 1
