Spesifikasi : Fast measurement of current, voltage, power, and power factor The CM3286 series can measure a variety of parameters, including current, voltage, power, power factor, frequency, phase order, and energy (via simple integration).
Principal measurement parameters Voltage: 80.0 V to 600.0 V Current: 0.060 A to 600.0 A Power: 0.005 kW to 360.0 kW (single-phase) 0.020 kW to 623.5 kW (balanced 3-phase/3-wire) 0.040 kW to 1080 kW (balanced 3-phase/4-wire)
2. Transmission of measured values to a smartphone simply by holding the value (Model CM3286-01 only) When the user holds a measured value, that value is automatically transmitted to a smartphone or tablet via Bluetooth® wireless communications. In addition, the GENNECT Cross app can be used to create simple reports (in PDF format) and to save measurement data in CSV format for later editing in Excel.
3. Assistance in detecting electricity theft Electricity theft by the methods described below is a major problem in developing nations such as the countries of Southeast Asia. The CM3286 series provides functionality to help users detect such theft

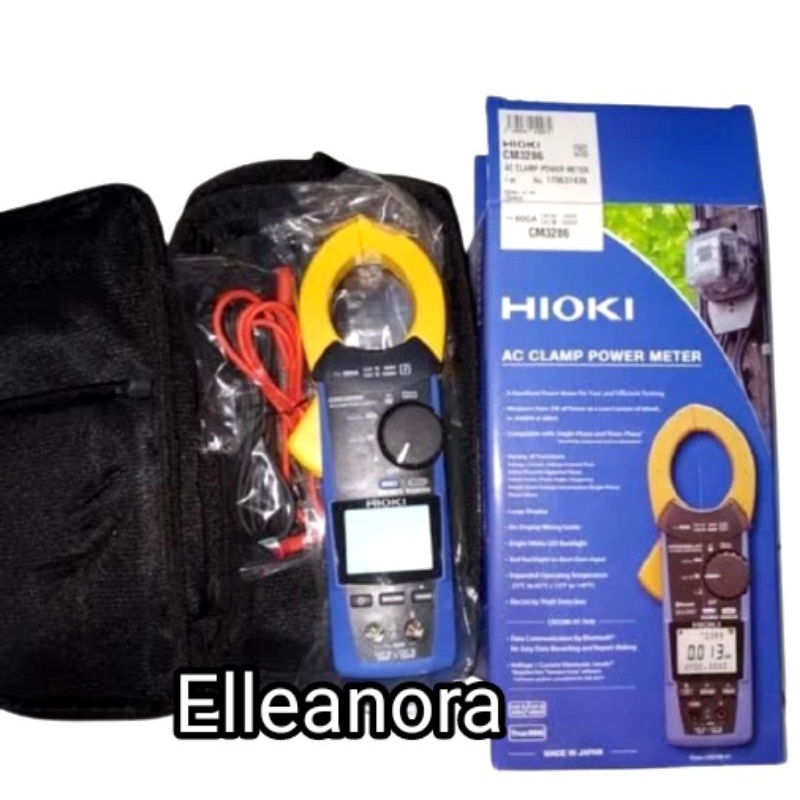

Clamp On Power Tester Damage-resistant jaws Rotary switch that can be turned with a single hand Dustproof and waterproof: IP54 White backlight Wide viewing angle display Measure power ranging from 5 W at a low current of 60 mA to 360 kW In addition to current, voltage, and power, measure simple integral power consumption and phase sequence
