Multimeter Digital Hioki DT4222

Detail Multimeter Digital Hioki DT4222

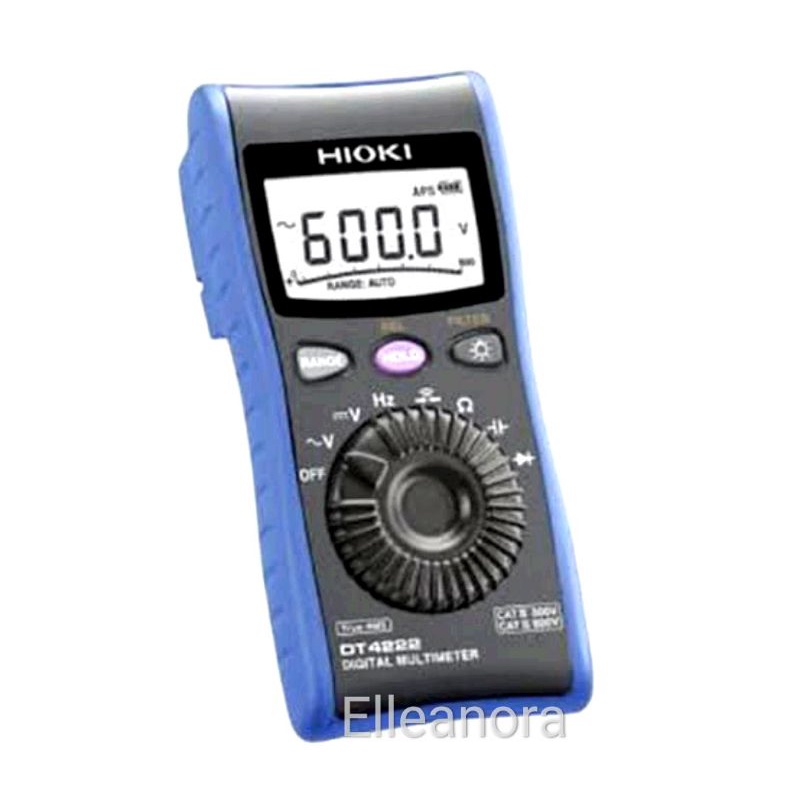

Multimeter Digital Hioki DT4222

The Hioki DT4200 Digital Multimeter Series consist of a complete lineup of 9 models ranging from professional to industrial to pocket meters, delivering a super fast response rate and safety features that take electrical testing to a higher level. The DT4222 is a pocket-sized digital multimeter designed specifically for general purpose testing, with ±0.5% DC V accuracy and wide 40 Hz to 1 kHz AC V bandwidth. CAT IV 300 V, CAT III 600 V

Key Features
• Achieving a high level of safety in a compact body and lightweight design
• Resistance, Capacitance measurement and diode testing (DT4222)
• Robust design capable of withstanding a drop from a height of 1 m
• Test leads conveniently wrap around the back • ±0.5% DC V basic accuracy, wide 40 Hz to 1 kHz AC V frequency characteristics • Low-pass filter cuts high harmonics (when measuring inverter fundamental waveforms)
• Broad -10 (14°F) to 50°C (122°F) operating temperature range
• Display backlight

* DC Voltage: 600.0 mV to 600.0 V, 4 ranges, Basic accuracy: ±0.5 % rdg. ±5 dgt.
* AC Voltage: 6.000 V to 600.0 V, 3 ranges, Frequency characteristics: 40 Hz - 1 kHz
Basic accuracy 40 - 500 Hz : ±1.0 % rdg. ±3 dgt. (True RMS, crest factor 3)
* Resistance600.0 Ω to 60.00 MΩ, 6 ranges, Basic accuracy: ±0.9 % rdg. ±5 dgt.
* C (capacitance)1.000 μF to 10.00 mF, 5 ranges, Basic accuracy: ±1.9 % rdg. ±5 dgt.
* FrequencyAC V measurement: 99.99 Hz (5 Hz or more) to 9.999 kHz, 3 ranges
Basic accuracy: ±0.1 % rdg. ±2 dgt.
* Continuity CheckContinuity threshold [ON]: 25 Ω or less (buzzer sound), [OFF]: 245 Ω or more
Response time: 0.5 ms or more
* Diode test: Open terminal voltage: 2.5 V or less, Testing current 0.5 mA or less,
Threshold of forward voltage: 0.15 V to 1.5 V
* Dimensions and mass:74 × 149 × 38 mm D,190 g (6.7 oz) (with batteries and holster)
* AccessoriesTest Lead DT4911 ×1, Holster ×1, Instruction manual ×1, LR03 alkaline battery ×1
