Detail Tespen Voltage Detector Hioki 3481-20 Original

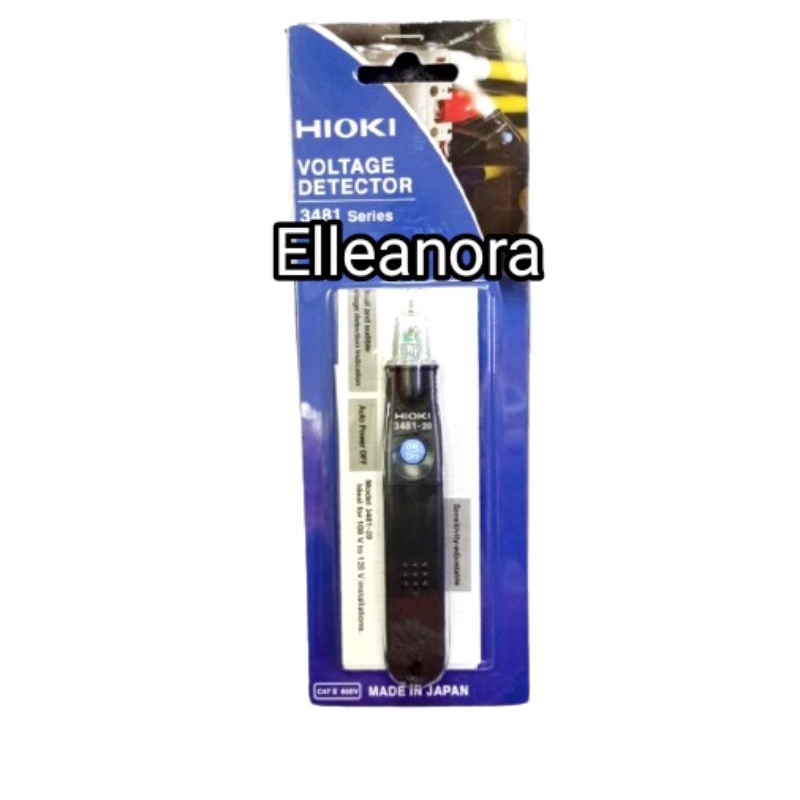

Tespen Voltage Detector Hioki 3481-20 Original
Brand : Hioki Type: 3481-20 Made in Japan
Hioki leads the industry in non-metallic contact test and measurement technology that promotes safety on the worksite. The Hioki 3481 is a pen-style, non-metallic contact voltage detector with a bright LED light that promotes safety and work efficiency even in dim worksites. When voltage is detected, the LED lights red along with an audio signal.
Key Features
• Non-contact detection of AC voltage from 40 V to 600 V with bright LED light • Pen-style, compact detector with pocket clip • Both visual and audible voltage detection indication • Meets safety standards for CAT IV 600 V environments • Prevent dead batteries with battery self-check function and auto power-off function
Specs: * Measurement function: Voltage detection * Operating voltage range: 40 V to 600 V AC (When brought into contact with a 2 mm^2 insulated cable equivalent to 600 V polyvinyl chloride insulated wire) Maximum sensitivity variable range 40 V to 80 V AC (80 V at the time of shipment) * Operating frequency: 50 Hz/ 60 Hz * Pilot light: Red LED lights up and the buzzer sounds when the wire is live * Battery check: White LED is dim or out when the batteries are low. *Auto power off: The power will be turned off automatically if the instrument remains idle for 3 minutes after the power is turned on.Power supplyLR44 button alkaline batteries ×3, Continuous use: 5 hr (Power ON standby state) * Dimensions and mass20 mm (0.79 in)W× 126 mm (4.96 in)H× 15 mm (0.59 in)D (excluding projections), 30 g (1.1 oz) (including LR44 button alkaline batteries) * AccessoriesInstruction manual ×1, LR44 button alkaline batteries ×3 (for trial purposes only)
