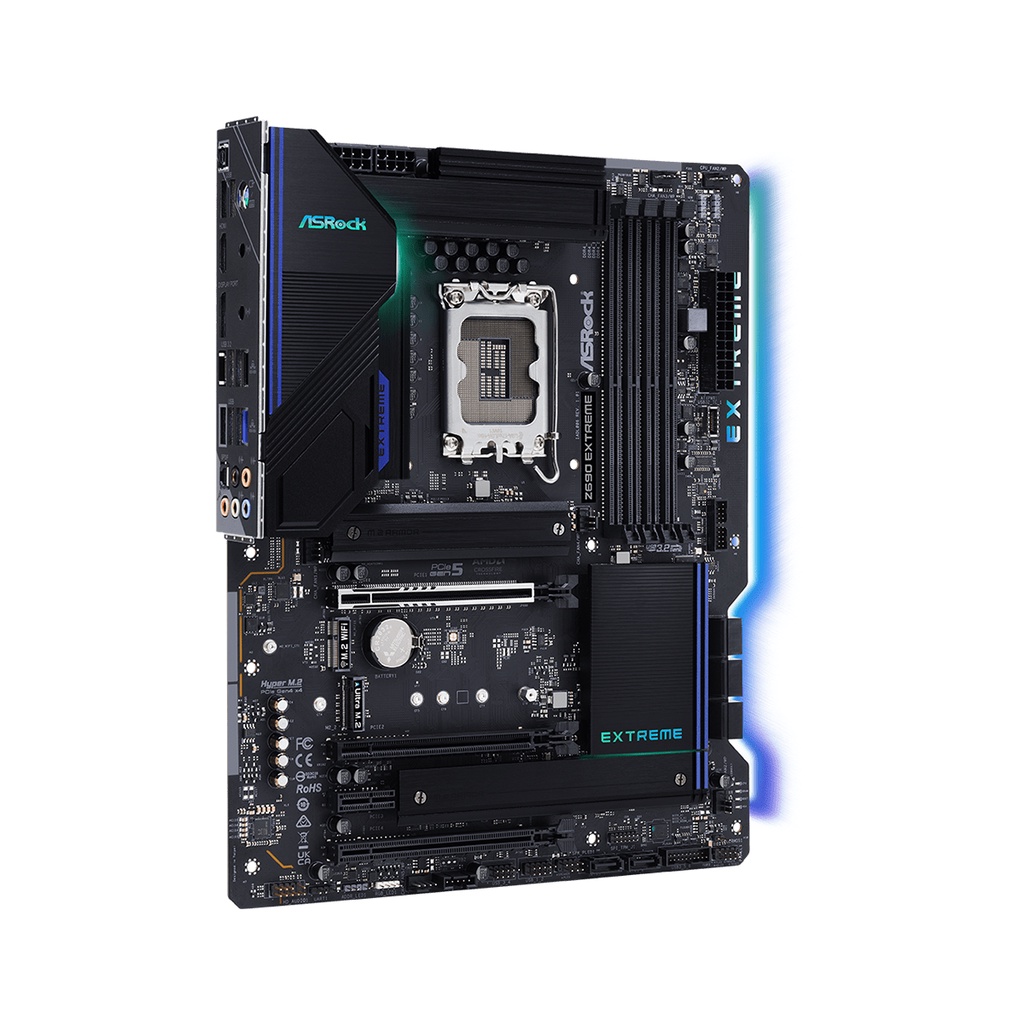

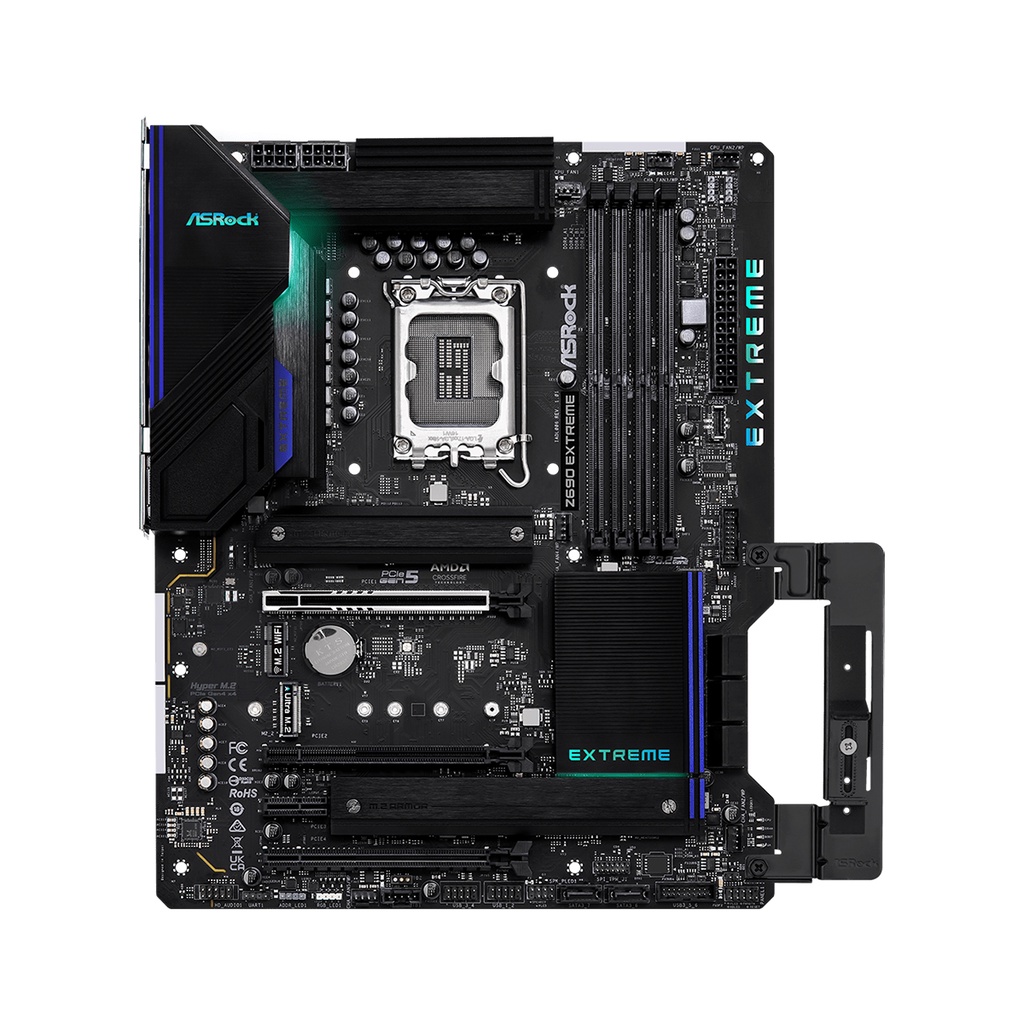

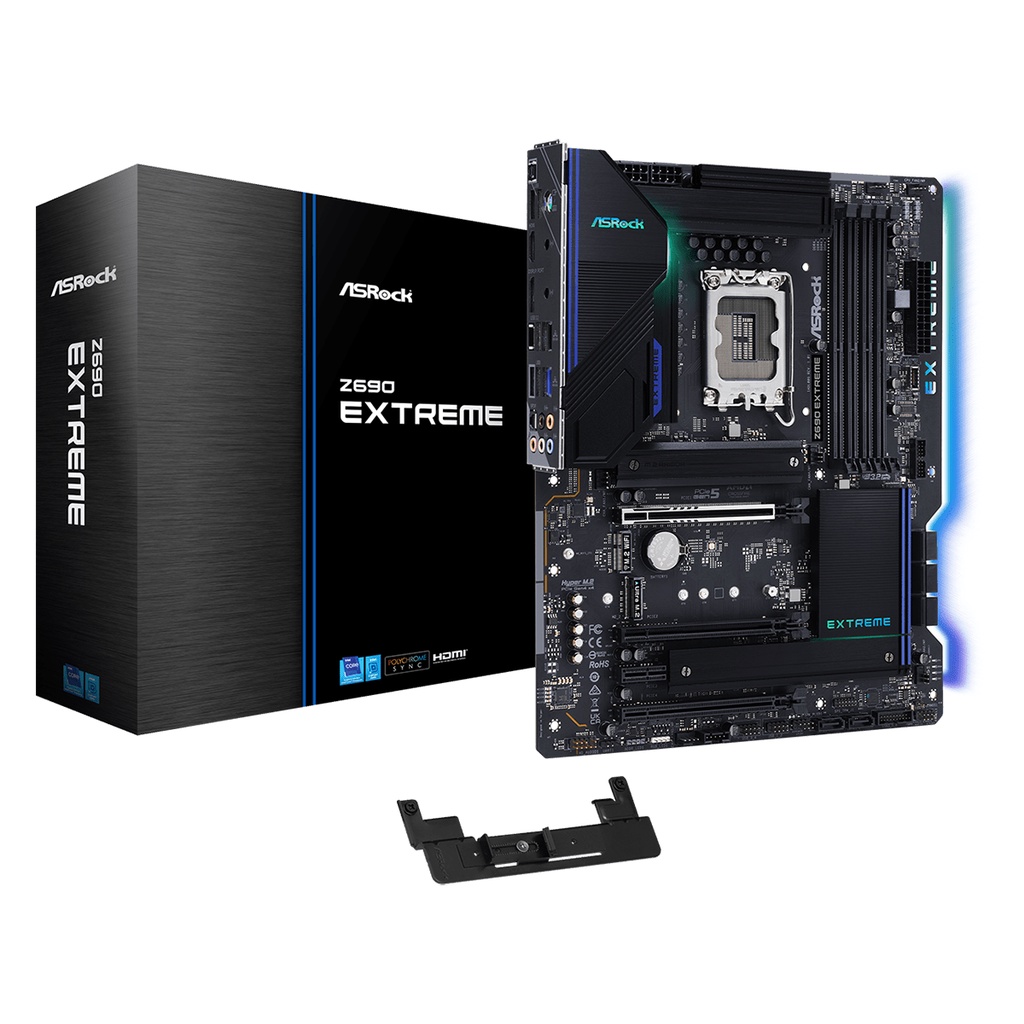

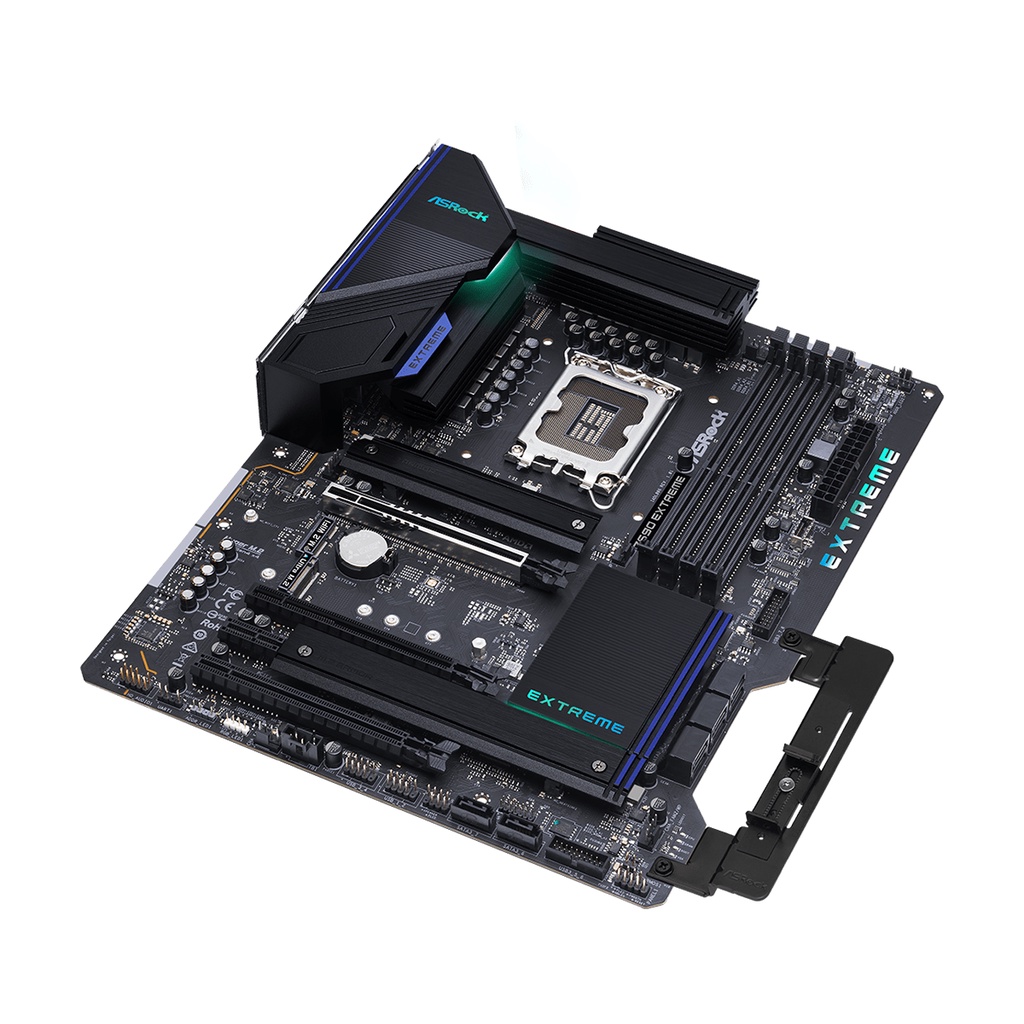

Detail ASROCK MOTHERBOARD Intel Gen Z690 mATX Z690 Extreme (DDR4)
Terima kasih Sudah berkunjung di Kurnia Abadi Semesta.
Demi kenyamanan bersama terkait harga, stock, warna, dll, harap konfirmasi terlebih dahulu sebelum order.
Terima kasih
Z690 Extreme
Supports 12th Gen Intel® Core™ Processors (LGA1700)
13 Phase SPS Dr.MOS Power Design
Supports DDR4 5000MHz (OC)
1 PCIe 5.0 x16, 1 PCIe 4.0 x16, 1 PCIe 3.0 x16, 1 PCIe 3.0 x1

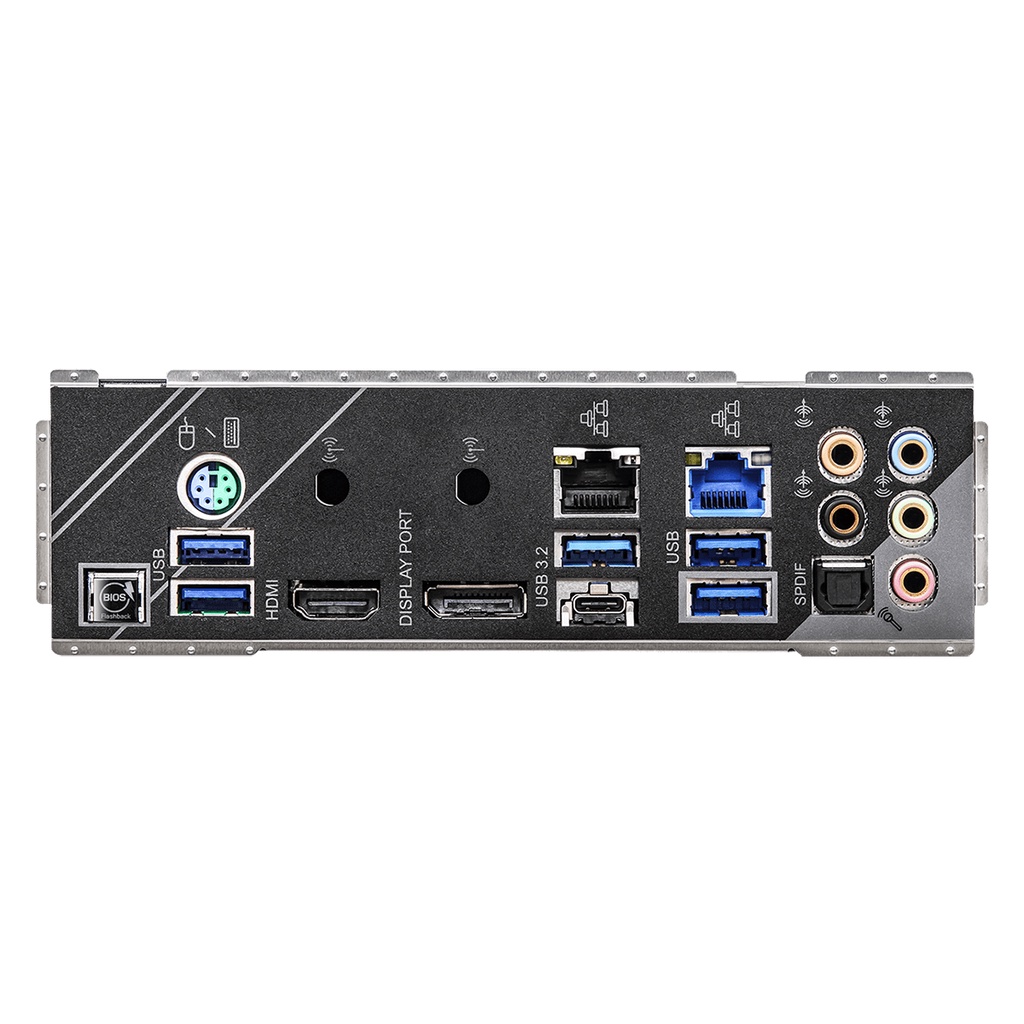

Graphics Output Options: HDMI, DisplayPort
Realtek ALC1220 7.1 CH HD Audio Codec, Nahimic Audio
8 SATA3
2 Hyper M.2 (PCIe Gen4 x4)
1 Ultra M.2 (PCIe Gen3 x4 & SATA3)
1 USB 3.2 Gen2x2 Front Type-C
2 USB 3.2 Gen2 (Rear Type A+C)
8 USB 3.2 Gen1 (4 Rear, 4 Front)
Dragon 2.5G LAN, Intel® Gigabit LAN
ASRock Graphics Card Holder
Spesifications :
Unique Feature
ASRock USB 3.2 Gen2
- ASRock Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)
- ASRock USB 3.2 Gen2 Type-A Port (10 Gb/s)
- ASRock USB 3.2 Gen2 Type-C Port (10 Gb/s)
CPU
- Supports 12th Gen Intel® Core™ Processors (LGA1700)
- Digi Power design
- 13 Power Phase design
- Supports Intel® Hybrid Technology
- Supports Intel® Turbo Boost Max 3.0 Technology
Memory
- Dual Channel DDR4 Memory Technology
- 4 x DDR4 DIMM Slots
- Supports DDR4 non-ECC, un-buffered memory up to 5333+(OC)*
- Supports ECC UDIMM memory modules (operate in non-ECC mode)
- Max. capacity of system memory: 128GB**
Slots
CPU:
- 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*
Chipset:
- 1 x PCIe 4.0 x16 Slot (PCIE2), supports x4 mode*
- 1 x PCIe 3.0 x16 Slot (PCIE4), supports x4 mode*
- 1 x PCIe 3.0 x1 Slot (PCIE3)*
- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVi (Integrated WiFi/BT)
- Supports AMD CrossFire™
- 15μ Gold Contact in VGA PCIe Slot (PCIE1)
Storage
CPU:
- 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
Chipset:
- 1 x Ultra M.2 Socket (M2_2, Key M), supports type 2230/2242/2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s)
OS :
- Microsoft® Windows® 10 64-bit / 11 64-bit
Gambar produk
