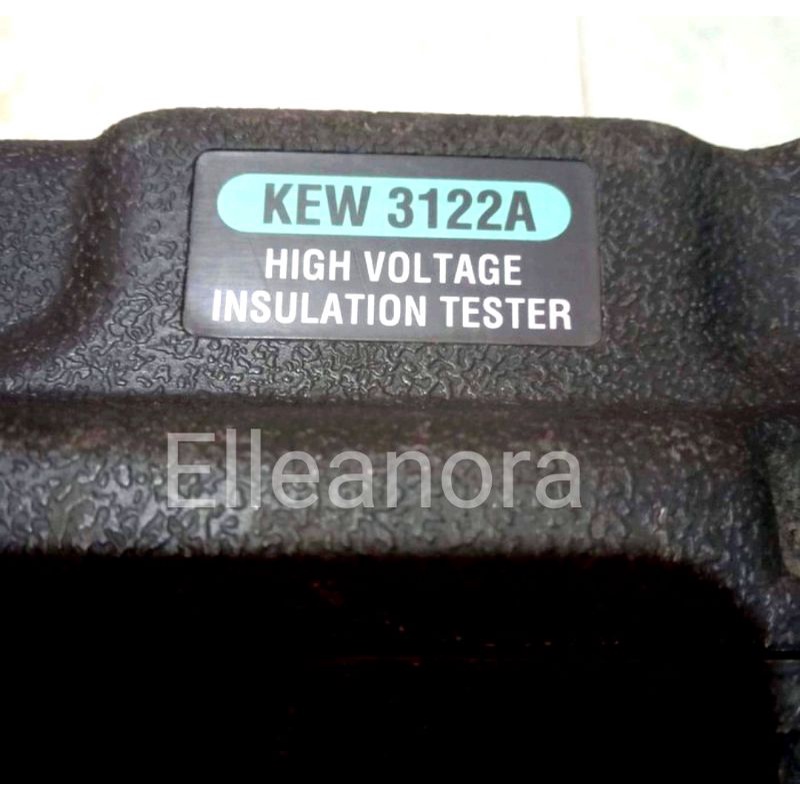

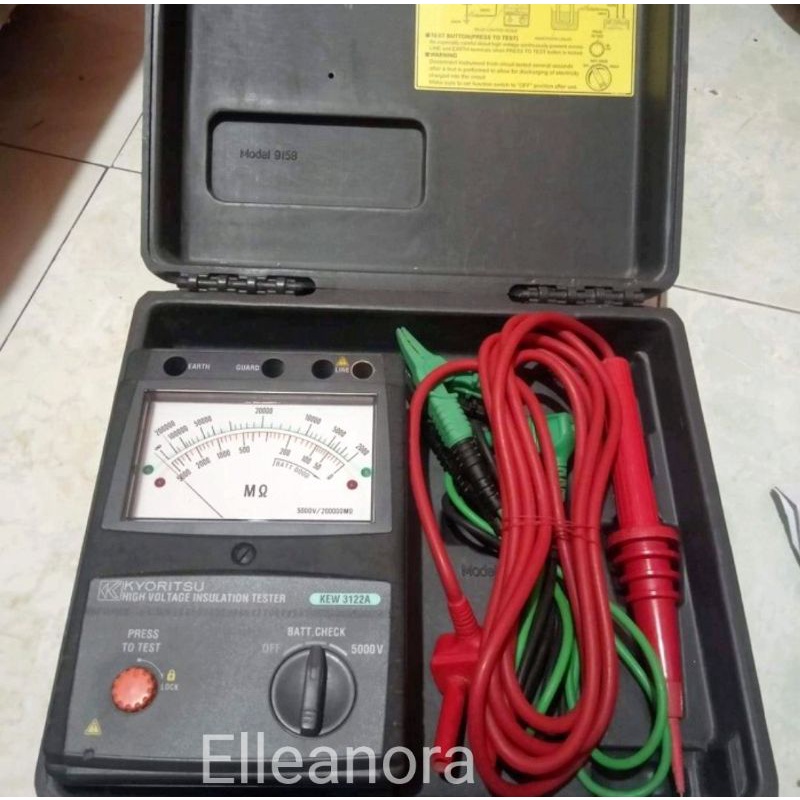

Marger High Voltage Insulation Tester Kyoritsu KEW 3122A Original

Detail Marger High Voltage Insulation Tester Kyoritsu KEW 3122A Original

Marger High Voltage Insulation Tester Kyoritsu KEW 3122A Original

Specs :
5000V / 5KV
Rugged desn with a hard carrying case for field use
Detachable Hh Voltage probe
Automatic ranges, hh and low scales, indicated by different LED's
Drip proof
3121A 3122A 3123A
DC test voltage 2500V 5000V 5000V 10000V
Measuring ranges
(automatic change) 2G/100G
(Auto-ranging) 5G/200G
(Auto-ranging) 5G/200G
(Auto-ranging) 10G/400G
(Auto-ranging)
First effective
measuring ranges 0.1 - 50G 0.2 - 100G 0.2 - 100G 0.4 - 200G
Accuracy 5% rdg
Other ranges accuracy 10% rdg or 0.5% of scale length
Withstand voltage 5000V AC for 1 minute
Insulation Resistance
DC Test Voltage 5000V
Measuring ranges
(automatic change) 5G/200G (Auto-ranging)
First effective measuring range 0.2 - 100G
Accuracy 5% rdg
Other ranges accuracy 10% rdg or 0.5% of scale length
General
Power source R6 (AA) (1.5V) 8
Dimensions 200 (L) 140 (W) 80 (D) mm
Weht approx. 1kg
Included Accessories 7165A ( probe) (3m)
7224A (Earth cord) (1.5m)
7225A (Guard code) (1.5m)
9158 (Hard case)
R6 (AA) 8
Instruction manual
Optional Accessories 7168A
( probe with alator clip)
8019 (Hook type prod)
8324 (Adaptor for recorder)
7253 (Longer probe with allator clip) (15m)
