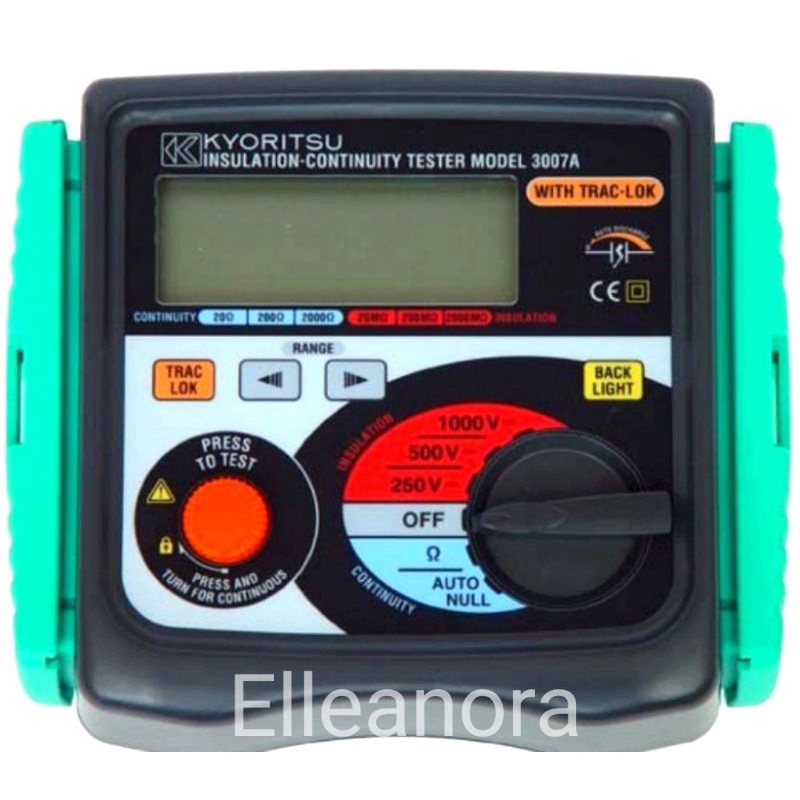

Detail Digital Insulation Tester Kyoritsu 3007A Original
Digital Insulation Tester Kyoritsu 3007A Original
Specs: Digital Insulation Tester 3007A Insulation Resistance Test Voltage 250V/ 500V/ 1000V Measuring Ranges ( Mid-scale Value) 20M / 200M / 2000M Output Voltage on open circuit Rated test voltage+ 20% , -0% Nominal Current 1mA DC min. Output Short Circuit Current 1.5 mA DC approx. Accuracy | 1.5% rdg 5dgt ( 20M / 200M ) | 10% rdg 3dgt ( 2000M ) Continuity Test Measuring Ranges ( Mid-scale Value) 20 / 200 / 2000 Output Voltage on open circuit 7~ 12V DC Measuring Current 200mA DC min. Accuracy | 1.5% rdg 5dgt ( 20 ) | 1.5% rdg 3dgt ( 200 / 2000 ) AC Voltage AC Voltage range 0-600V AC Accuracy | 5% rdg 3dgt General Safety Standard IEC 61010-1 CAT.III 300V Pollution Degree 2 IEC 61010-2-031 IEC 61557-1/ 2/ 4 IP Rating IEC 60529-IP54 EMC Standard IEC 61326-1 Withstand Voltage 3700V AC for 1 minute Power Source R6P ( AA) ( 1.5V) 8 Dimensions 185( L) 167( W) 89( D) mm Weight 990g approx Accessories 7122B ( Test leads) Pouch for test leads 8923 ( F500mA/ 600V fuse) 2 R6P ( AA) 8 Shoulder Strap Instruction Manual
