AC DC Clamp Meter Kyoritsu KEW-2055 / Tang Ampere Kyoritsu KEW-2055
Merek: Kyoritsu | Lihat selengkapnya produk Perlengkapan Rumah dari KyoritsuDeskripsi singkat
Perlengkapan Rumah > Perkakas > Electrical Tester & Multimeter > AC DC Clamp Meter Kyoritsu KEW-2055 / Tang Ampere Kyoritsu KEW-2055
- Pengiriman Ekspres
- Barang yang diperiksa
- Bayar di tempat berlaku
- Kualitas, Prestise
- Pengembalian produk
- Dukung pembuatan faktur
Produk Terkait

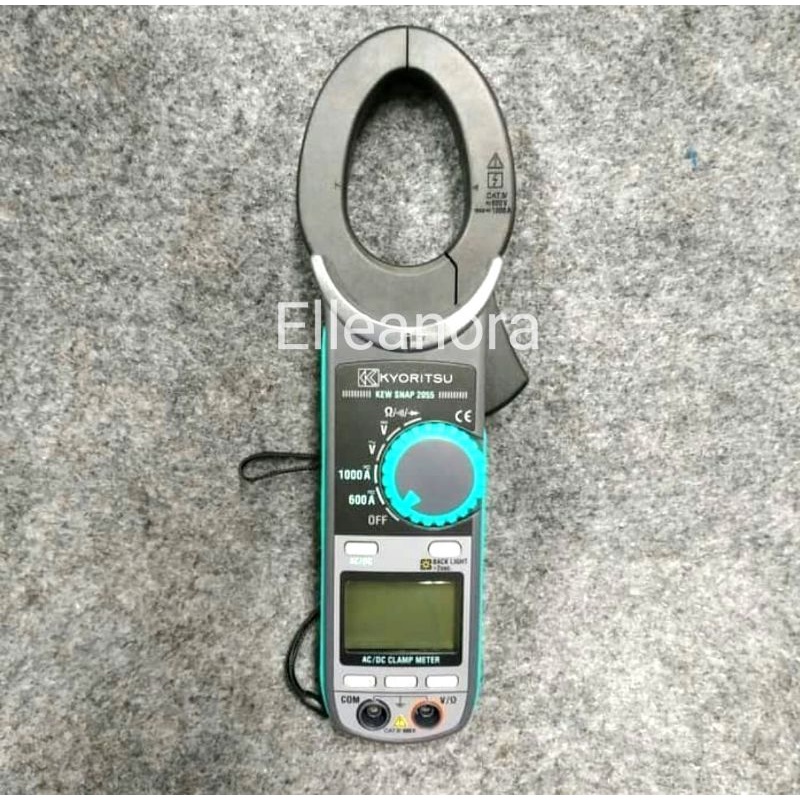

Detail AC DC Clamp Meter Kyoritsu KEW-2055 / Tang Ampere Kyoritsu KEW-2055
AC DC Clamp Meter Kyoritsu KEW-2055 / Tang Ampere Kyoritsu KEW-2055* Designed to meet international safety standard IEC 61010-1 CAT IV 600V.
* CAT IV Clamp Meters can measure the Voltage and Current in both every low and high power circuits.
* Very useful for power distribution companies, power utilities and maintenance fields.
Specs:
* AC A: 0 - 600.0/1000A
- 1.5%rdg5dgt (50/60Hz)
- 3.0%rdg5dgt (40 - 400Hz)
* DC A: 0 - 600.0/1000A 1.5%rdg5dgt
* AC V: 6/60/600V Auto Ranging
- 1.3%rdg4dgt (50/60Hz)
- 3.0%rdg5dgt (40 - 400Hz)
* DC V: 600m/6/60/600V Auto Ranging 1.0%rdg3dgt
* Ohm: 600/6k/60k/600k/6M/60M (Auto Ranging)
1%rdg5dgt (600 - 6M) / 5%rdg8dgt (60M)
* Continuity buzzer: Buzzer Sounds at 100
* Frequency/DUTY: 10/100/1k/10kHz (Auto Ranging) / 0.1 - 99.9%
* Conductor size: '40mm
* Safety Standard: IEC 61010-1 CAT IV 600V,
- IEC 61010-031,
- IEC 61010-2-032,
- IEC 61326
* Power source: R03 (1.5V) (AAA) 2
* Dimensions: 254(L) 82(W) 36(D)mm
* Weight: 310g

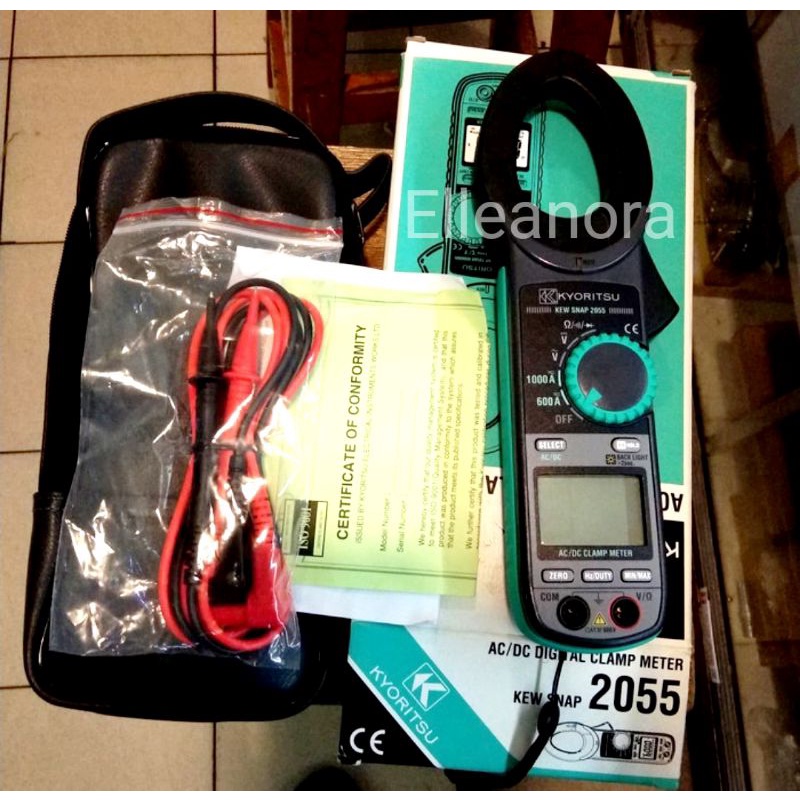

* Included Accessories
- 7066A (Test leads)
- 9094 (Carrying case)
- Instruction Manual
Gambar produk
