Detail Analog Insulation Tester Kyoritsu 3165 Original

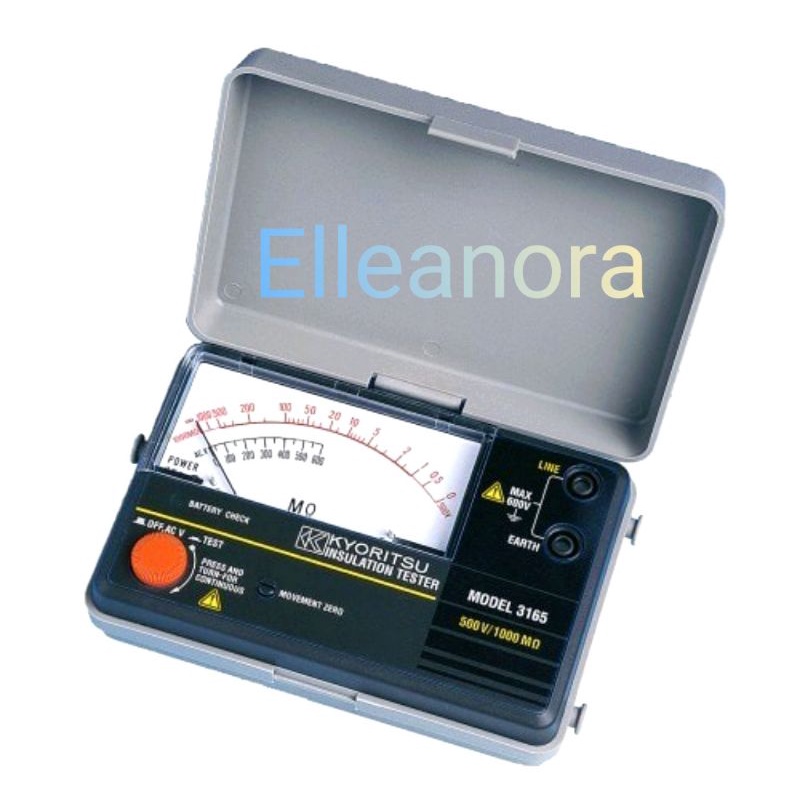

Analog Insulation Tester Kyoritsu 3165 Original
Expanded megohm scale for easy reading. • New robust housing case to prevent damage. • AC voltmeter scale for easy reading. • Neck strap for both hand’s operation.
DC Test Voltage 500V Max. effective scale value 1000MΩ Mid-scale value 20MΩ First effective measuring range 1 - 500MΩ Accuracy ±5% rdg Second effective measuring ranges 0.5/1000MΩ Accuracy ±10% rdg AC Voltage
AC voltage range 600V Accuracy ±3% of full scale value Dimensions 90(L) × 137(W) × 40(D)mm

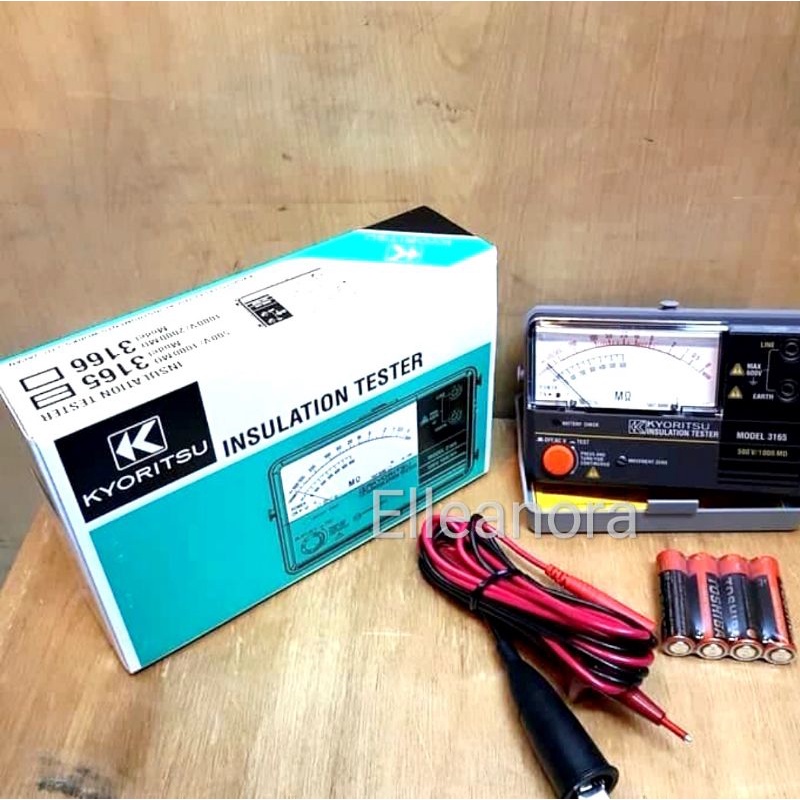

Included Accessories 7025 (Test leads) 9067 (Pouch for test lead) Neck Strap Battery R6 (AA) × 4 Instruction Manual
