Tang Ampere Kyoritsu 2046R / Digital Clamp Meter Kyoritsu 2046R

Designed to meet international safety standard IEC 61010-1 CAT.IV 600V.
CAT.IV Clamp Meters can measure the Voltage and Current in both very low and high power circuits.
Thus, very useful for power distribution companies, power utilities and maintenance fields.
True RMS enables an accurate measurement.

AC A 0~ 600.0A
| 2.0% rdg 5dgt ( 50/ 60Hz)
| 3.5% rdg 5dgt ( 40~ 500Hz)
DC A 0~ 600.0A
| 1.5% rdg 5dgt
AC V 6/ 60/ 600V
Auto Ranging
| 1.5% rdg 4dgt ( 50/ 60Hz)
| 3.5% rdg 5dgt ( 40~ 400Hz)
DC V 600m/ 6/ 60/ 600V
Auto Ranging
| 1.0% rdg 3dgt
600/ 6k/ 60k/ 600k/ 6M/ 60M ( Auto Ranging)
| 1% rdg 5dgt ( 600~ 6M) / 5% rdg 8dgt ( 60M)
Continuity buzzer Buzzer Sounds at 100
Frequency/ DUTY 10/ 100/ 1k/ 10kHz ( Auto Ranging) / 0.1~ 99.9%
Temperature -50 C ~ + 300 C ( With the use of Temperature probe 8216)
Conductor Size 33mm
Withstand Voltage 6880V AC for 5 seconds
Safety Standard IEC 61010-1 CAT.IV 600V,
IEC 61010-031,
IEC 61010-2-032,
IEC 61326
Power Source R03 ( 1.5V) ( AAA) 2
Dimensions 243( L) 77( W) 36( D) mm
Weight 300g
Accessories 7066A ( Test leads)
9094 ( Carrying case)
Instruction Manual
Optional 8008 ( Multi-Tran)
8216 ( Temperature probe)

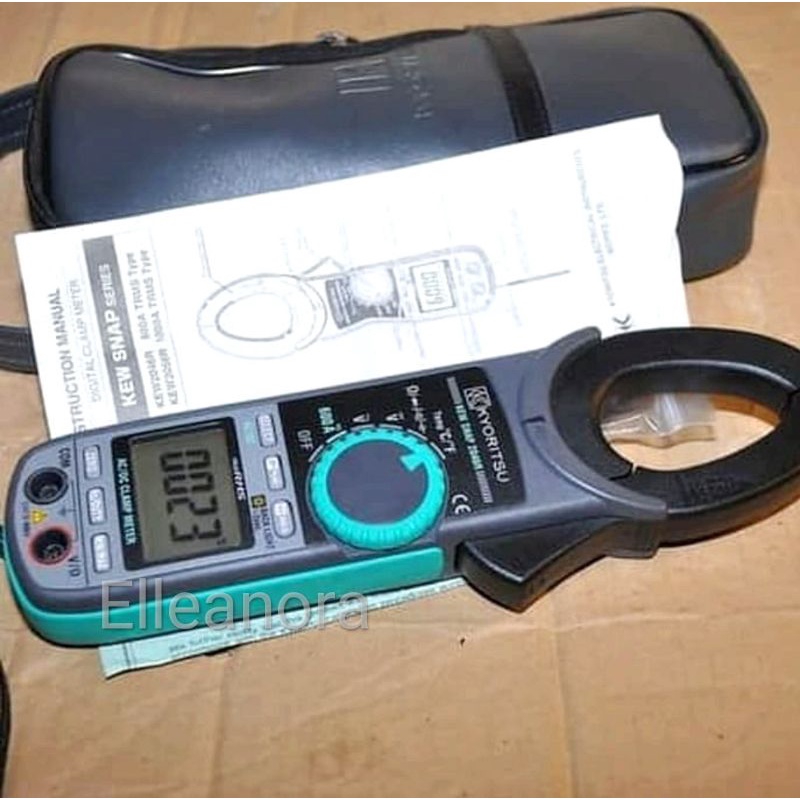

Gambar produk
