Detail Digital Insulation Continuity Testers Kyoritsu KEW 3023A Original
Digital Insulation Continuity Testers Kyoritsu KEW 3023A Original
Specifications
Insulation resistance
Test voltage : 100/250/500/1000V
Measuring range (Auto range) :
* 4.000/40.00/200.0MΩ (100V)
* 4.000/40.00/400.0/2000MΩ (250/500/1000V)
Mid-scale value : 5MΩ (100/250V) | 50MΩ (500/1000V)
First effective measuring range :
0.2 - 20MΩ (100V)
0.2 - 40MΩ (250V)
0.2 - 200MΩ (500V)
0.2 - 1000MΩ (1000V)
Accuracy : ±2%rdg±6dgt
Second effective measuring range lower : 0.110 - 0.199MΩ
Second effective measuring range upper :
20.01 - 200.0MΩ (100V)
40.01 - 2000MΩ (250V)
200.1 - 2000MΩ (500V)
1001 - 2000MΩ (1000V)
Accuracy : ±5%rdg±6dgt
Rated current : DC 1 - 1.2mA
Output short circuit current : 1.5mA max
Ω/Continuity
Auto range : 40.00/400.0Ω
Accuracy : ±2%rdg±8dgt
Output voltage on open circuit : 5V±20%
Output short circuit current : DC 220±20mA
Fuse : Quick acting ceramic fuse 0.5A/600V (Ø6.35×32mm)
AC Voltage
AC voltage range : AC 20 - 600V (50/60Hz) | DC -20 - -600V/+20 - +600V
Accuracy : ±3%rdg±6dgt
General
Applicable standards : IEC 61010-1 CAT III 600V, IEC 61557-1,2,4, IEC 61326-1 (EMC), IEC 60529 (IP40)
Power source : R6 × 6 or LR6 × 6
Dimensions / Weight : 105(L) × 158(W) × 70(D)mm / 600g approx.
Included Accessories : 7150A (Remote control switch set) 9121 (Shoulder strap) R6 (AA) × 6 Instruction Manual

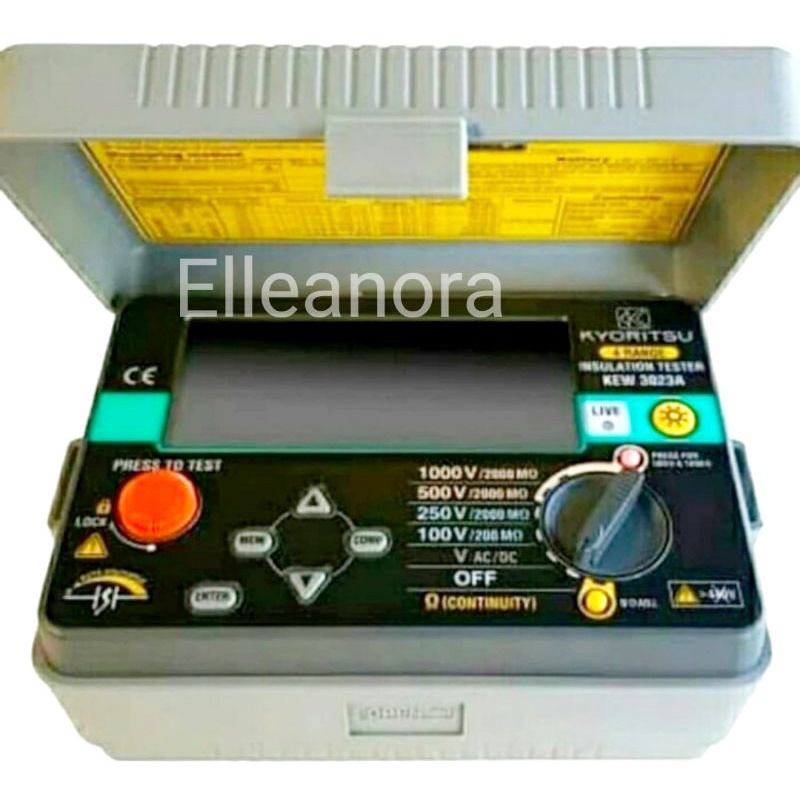

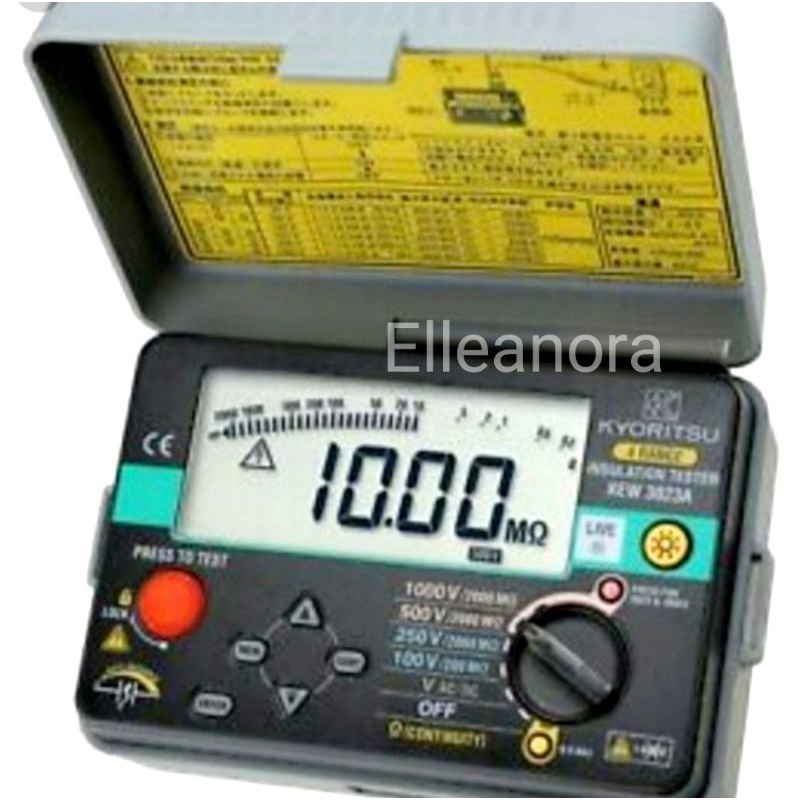

Gambar produk
