Detail Digital Earth Tester Kyoritsu 4105AH Original

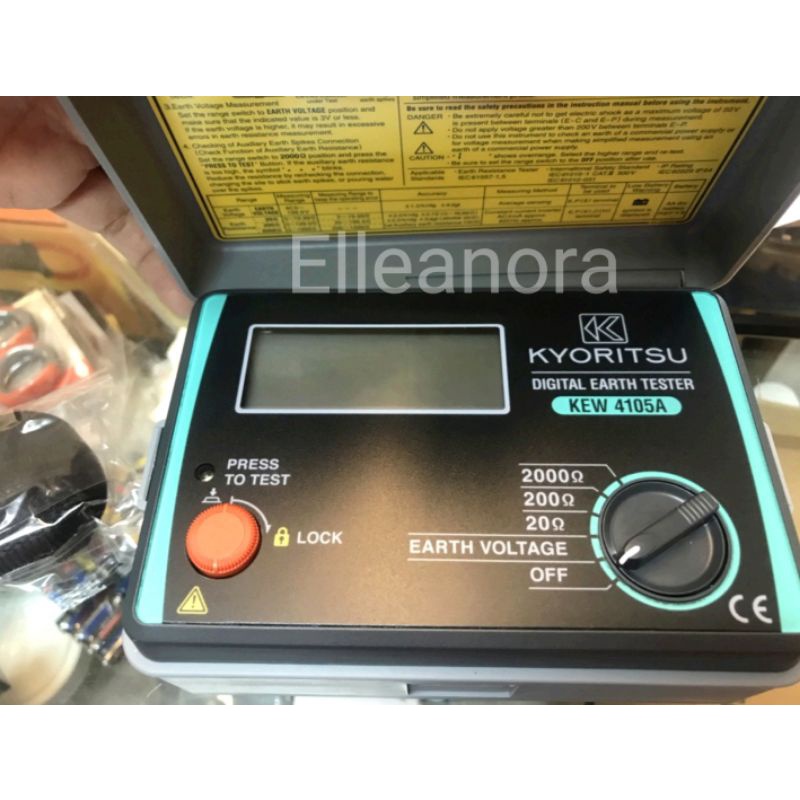

Digital Earth Tester Kyoritsu 4105AH Original
Measurement
Ranges Earth Resistance: 0 - 20/0 - 200/0 - 2000
Earth Voltage [50,60Hz]: 0 - 200V AC
Accuracy Earth Resistance: 2%rdg0.1 (20range)
|2%rdg3dgt (200/2000range)
Earth Voltage: 1%rdg4dgt
Overload Protection Earth Resistance: 280V AC for 10 seconds
across 2 of the 3 terminals
Earth Voltage: 300V AC for 1 minute
Safety Standard IEC 61010-1 CAT III 300V Pollution Degree 2, IEC 61557
Applicable Standards IEC 60529 IP54
Withstand Voltage 3700V AC for 1 minute
Power Source R6 (AA) (1.5V) 6
Dimensions 105(L) 158(W) 70(D)mm
Weight 550g approx.

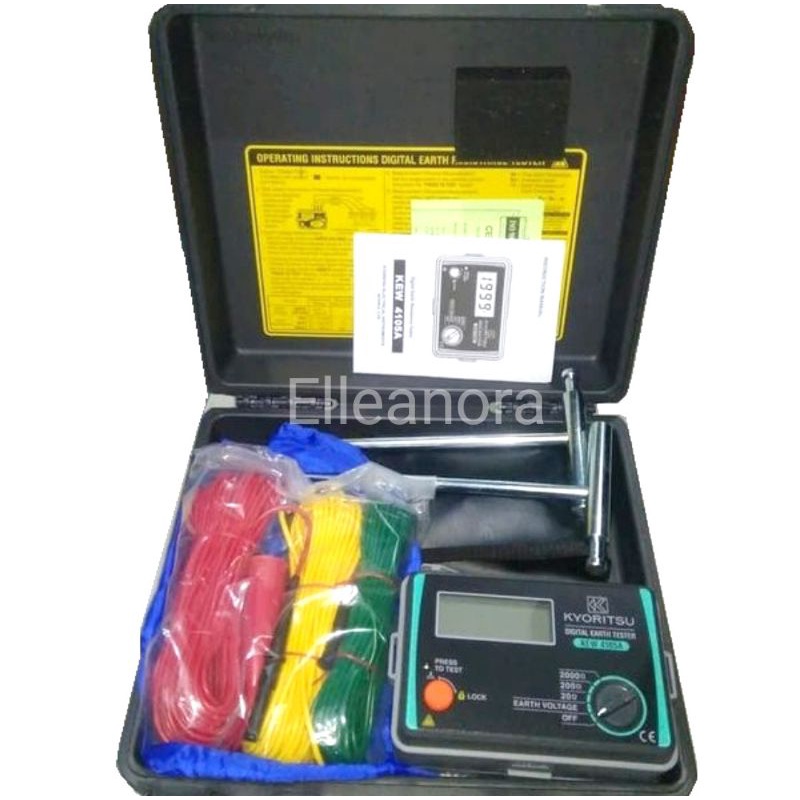

Accessories 7095A (Earth resistance test leads) 1set
(red-20m, yellow-10m, green-5m)
8032 (Auxiliary earth spikes) 1set
7127A (Simplified measurement probe) 1set
R6 (AA) 6
Neck strap
Instruction Manual
