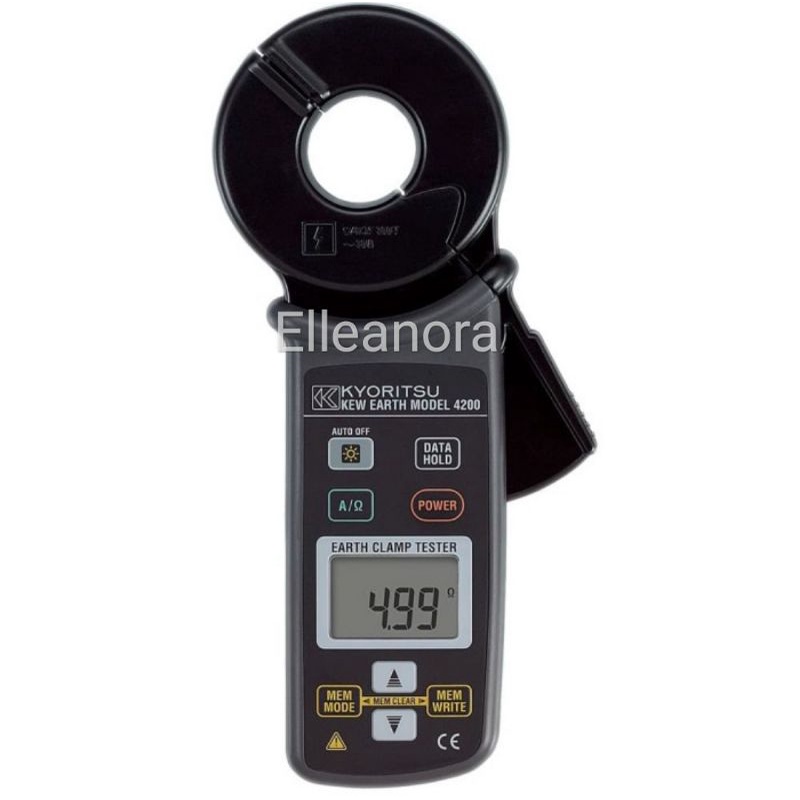

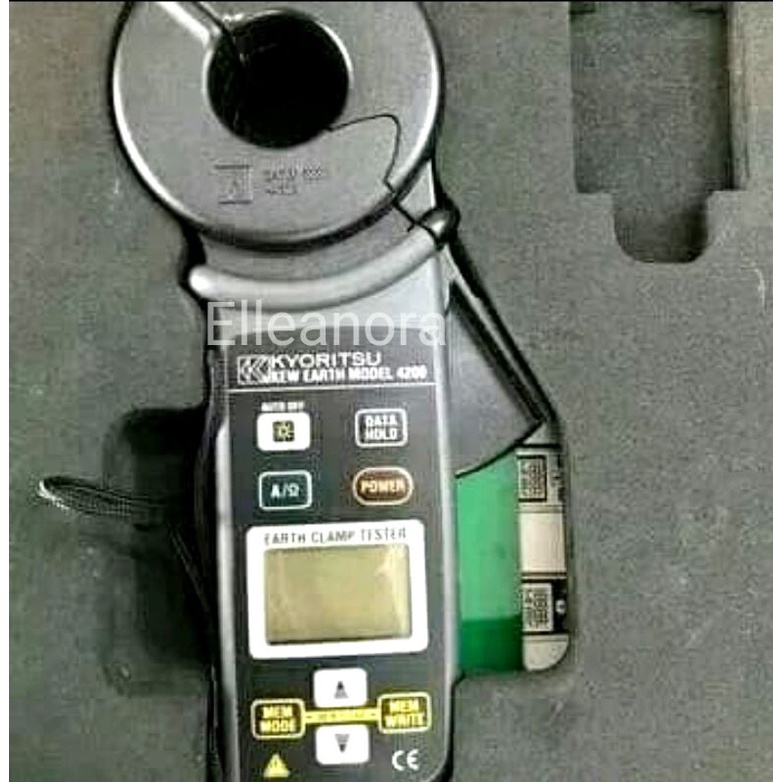

Digital Earth Clamp Tester Kyoritsu 4200 Original

Detail Digital Earth Clamp Tester Kyoritsu 4200 Original

Digital Earth Clamp Tester Kyoritsu 4200 Original

Earth resistance Auto range
20.00/200.0/1500Ω
±1.5%±0.05Ω(0.00 - 20.99Ω)
±2%±0.5Ω(16.0 - 99.9Ω)
±3%±2Ω(100.0 - 209.9Ω)
±5%±5Ω(160 - 399Ω)
±10%±10Ω(400 - 599Ω)
AC current (50Hz/60Hz) Auto range
Values are displayed, but accuracy isn't guaranted(600 - 1580Ω)
100.0/1000mA/10.00/30.0A
±2%±0.7mA(0.0 - 104.9mA)
±2%(80mA - 31.5A)
Operating indication : Earth resistance function :
Constant voltage injection
Current detection (Frequency : Approx.2400Hz)
Dual Integration
AC current function : Successive approximation

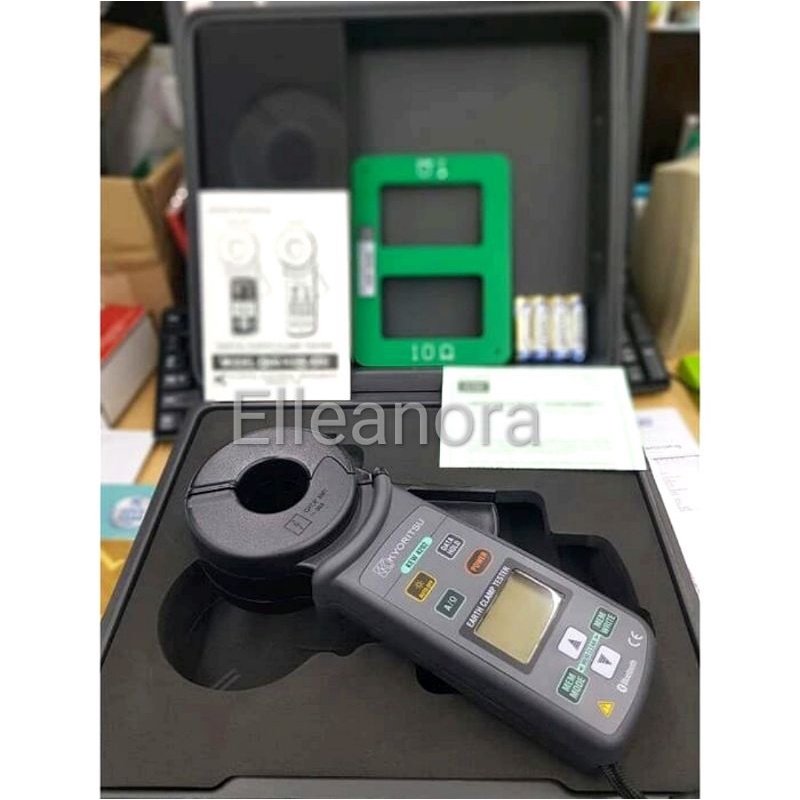

Included Accessories :
R6 x 4, Instruction manual
8304 (Resister for operation check)
9166 (Carrying case hard)
