Detail Digital Clamp Meter True RMS Kyoritsu 2300R Original

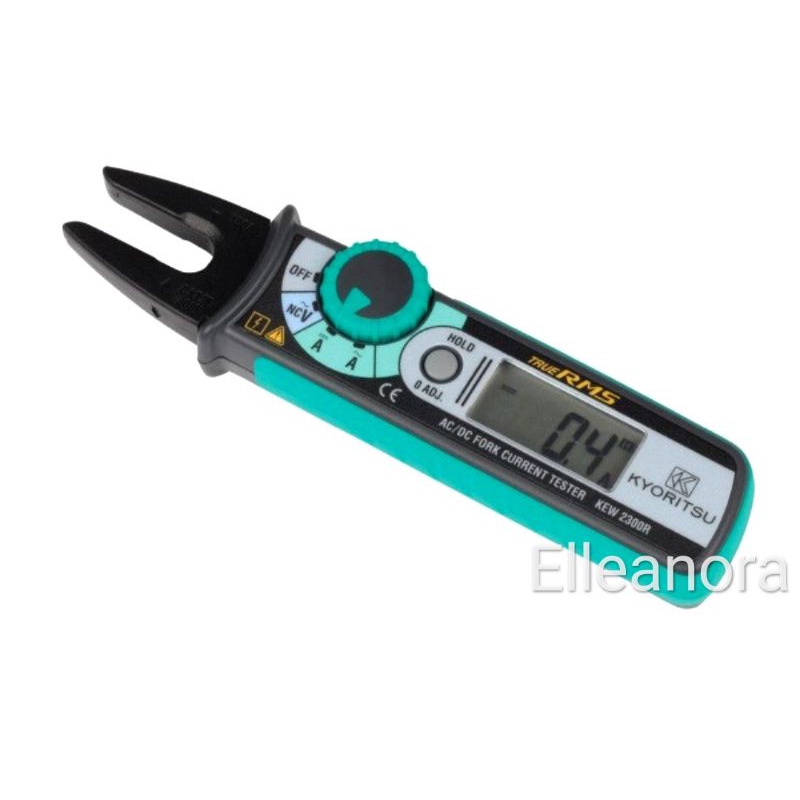

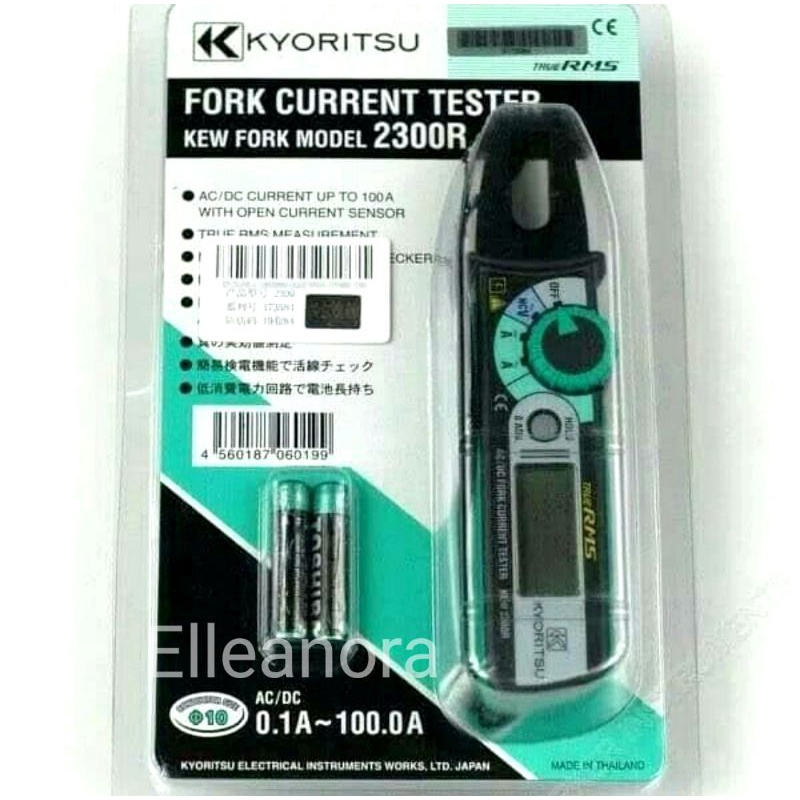

Digital Clamp Meter True RMS Kyoritsu 2300R Original
*) True RMS reading is an essential feature for accurate measurement. *) Non Contact voltage function indicates the presence of AC voltage by warning the user with an audible signal. *) Set the DC current range to zero in one touch with the Zero Adjust function. *) Auto power off.
Range Measuring Range Accuracy. *) Current Measurement AC A 0 to 100.0A DC A 0 to 100.0A |2.0%rdg5dgt (50/60Hz) |2.0%rdg5dgt *) Conductor Size Max 10mm *) Non Contact Voltage Detect AC voltage without contacting with socket wire During voltage detection, "Hi" flashes and a buzzer sounds intermittently *) Dimensions 161.3(L) 40.2(W) 30.3(D)mm *) Crest Factor 2.5 *) Weight 110g (with batteries) *) Maximum Digit 1,049 *) Applicable Standards IEC 61010-1 CAT III 300V Pollution Degree 2 *) Power Source R03 (AAA) 2 *) Accessories Carrying Case R03 (AAA) 2 Instruction Manual
