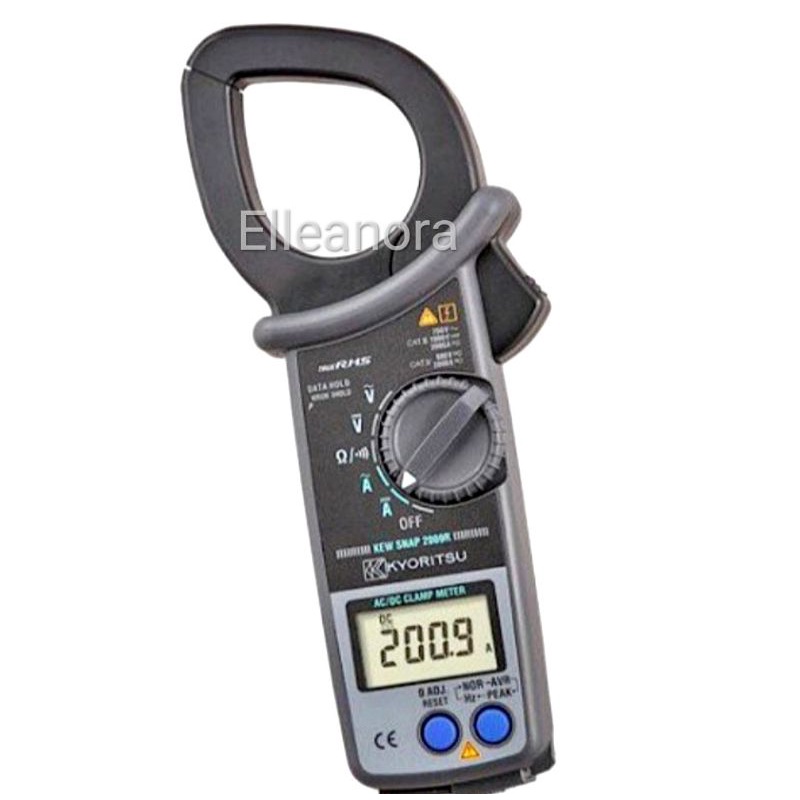

Digital Clamp Meter Kyoritsu 2009R True RMS

Detail Digital Clamp Meter Kyoritsu 2009R True RMS

Digital Clamp Meter Kyoritsu 2009R True RMS

CAT.IV Clamp Meter can measure the Voltage and Current in both very low and high power circuits.
Accurate True-RMS reading of AC current or voltage with distorted waveform.
Can measure AC and DC currents up to 2000A.

A
400.0/ 2000A

1.3% rdg 3dgt ( 0~ 400.0A, 150~ 1700A) ( 45~ 66Hz)
2.0% rdg 5dgt ( 0~ 400.0A, 150~ 1700A) ( 20Hz~ 1kHz)
2.3% rdg 3dgt ( 1701~ 2000A) ( 45~ 66Hz)
DC A 400.0/ 2000A 1.3% rdg 2dgt
AC V
40.00/ 400.0/ 750V

1.0% rdg 3dgt ( 45~ 66Hz)
1.5% rdg 5dgt ( 20Hz~ 1kHz)
DC V 40.00/ 400.0/ 1000V 1.0% rdg 2dgt
400.0/ 4000 | 1.5% rdg 2dgt
( Electronic protection ( no fuse) up to 600V)
Continuity buzzer Buzzer sounds below 20
Hz 10.0 ~ 4000Hz 1.5% rdg 5dgt
( Input sensitivityCurrent: more than 40AVoltage: more than 10V)
Output
Recorder : DC400mV against AC/ DC400.0A
DC200mV against AC/ DC2000A
Withstand voltage 6880V AC for 5 seconds
Conductor size 55mm max.
Applicable standards IEC 61010-1 CAT.IV 600V, CAT.III 1000V Pollution degree 2
IEC 61010-031, IEC 61010-2-032, IEC 61326-1, IEC 61326-2-1
Power Source R6P ( 1.5V) 2
Dimensions 250( L) 105( W) 49( D) mm
Weight Approx. 540g ( including batteries)
Accessories 7107A ( Test leads) , 8201 ( Output plug) , 9094 ( Carrying case)
R6P ( AA) ( 1.5V) 2, Instruction Manual
Optional 8008 ( Multi-Tran) ( AC only) , 7256 ( Output cord)
