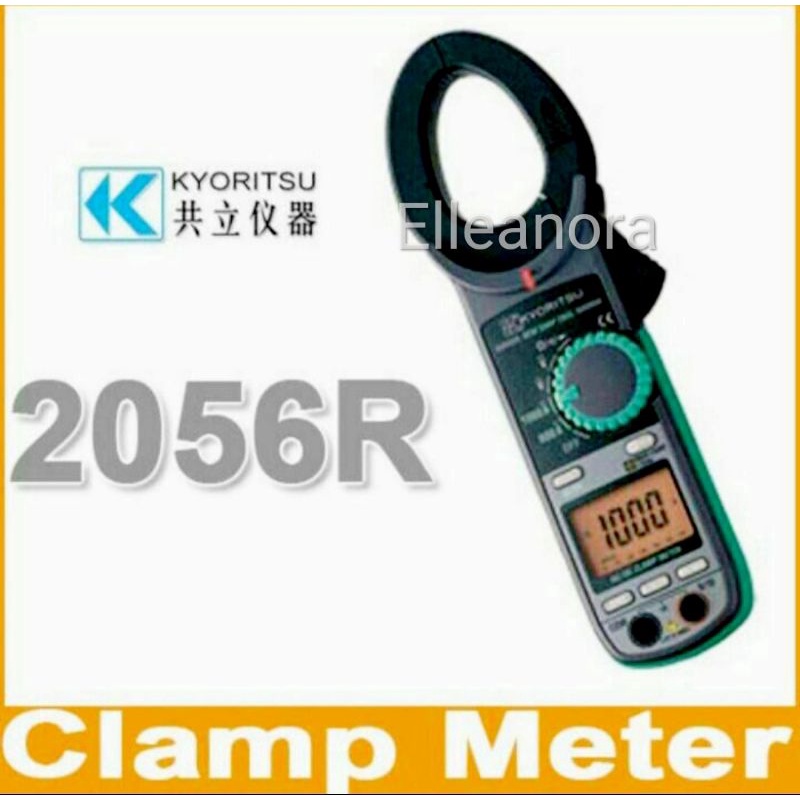

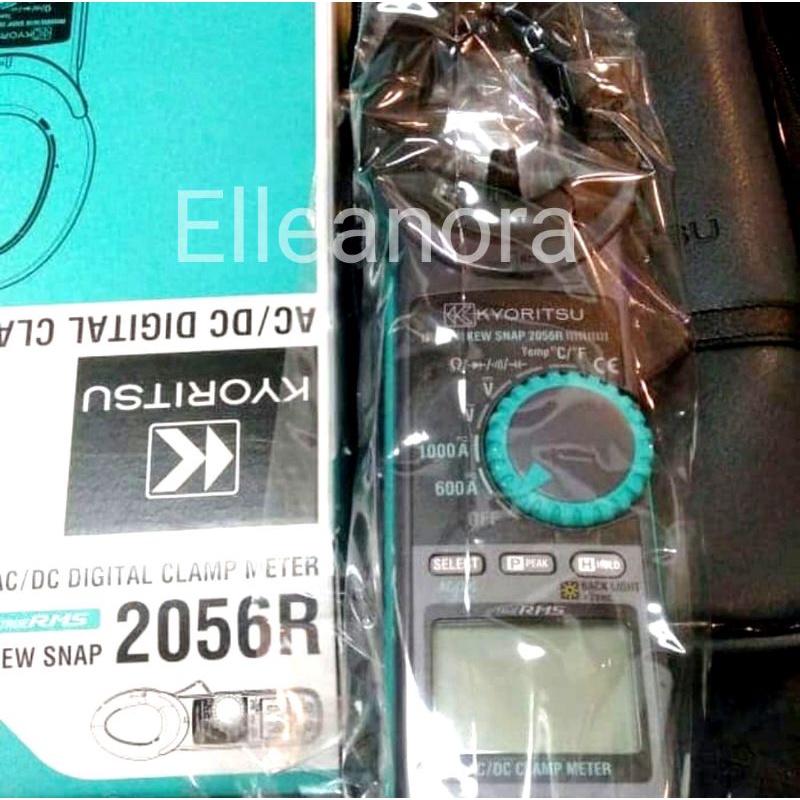

Detail Digital Clamp Meter AC DC 1000A Kyoritsu 2056R Original
Digital Clamp Meter AC DC 1000A Kyoritsu 2056R Original
Designed to meet international safety standard IEC 61010-1 CAT IV 600V. CAT IV Clamp Meters can measure the Voltage and Current in both very low and high power circuits. Thus, very useful for power distribution companies, power utilities and maintenance fields. True RMS enables an accurate measurement.
AC A 0 - 600.0/1000A |2.0%rdg5dgt (50/60Hz) |3.5%rdg5dgt (40 - 500Hz) DC A 0 - 600.0/1000A |1.5%rdg5dgt AC V 6/60/600V Auto Ranging |1.5%rdg4dgt (50/60Hz) |3.5%rdg5dgt (40 - 400Hz) DC V 600m/6/60/600V Auto Ranging 1.0%rdg3dgt 600/6k/60k/600k/6M/60M (Auto Ranging) 1%rdg5dgt (600 - 6M) / 5%rdg8dgt (60M) Continuity buzzer Buzzer Sounds at 100 Frequency/DUTY 10/100/1k/10kHz (Auto Ranging) / 0.1 - 99.9% Temperature -50C - +300C (With the use of Temperature probe 8216) Conductor Size 40mm Withstand Voltage 6880V AC for 5 seconds Safety Standard IEC 61010-1 CAT IV 600V, IEC 61010-031, IEC 61010-2-032 IEC 61326 Power Source R03 (1.5V) (AAA) 2 Dimensions 254(L) 82(W) 36(D)mm Weight 310g Accessories 7066A (Test leads) 9094 (Carrying case) Instruction Manual Optional 8008 (Multi-Tran) 8216 (Temperature probe)
