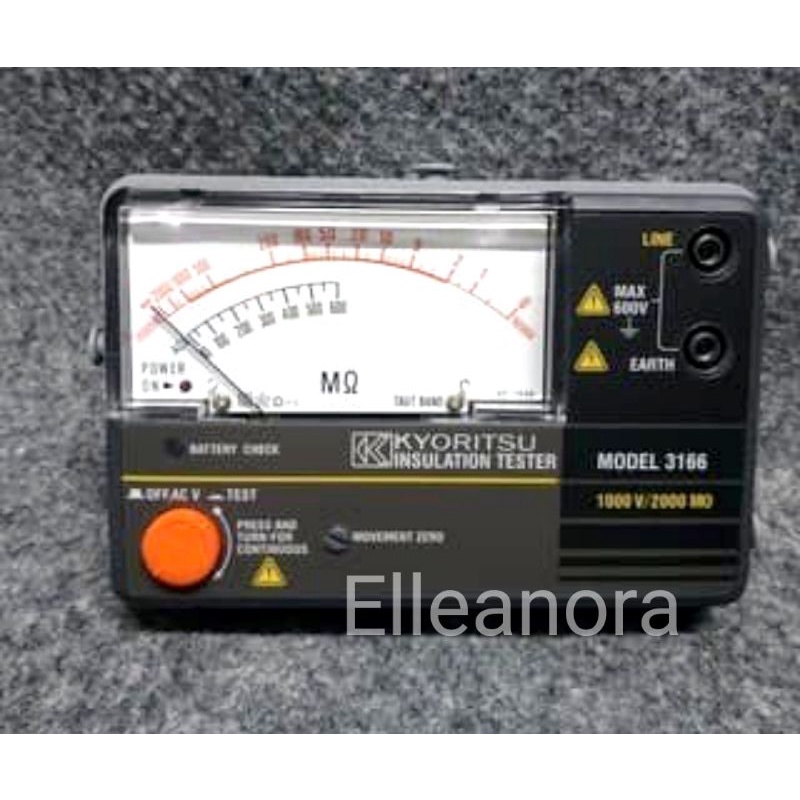

Analog Insulation Tester Kyoritsu 3166 Original

Merek: Kyoritsu | Lihat selengkapnya produk Perlengkapan Rumah dari Kyoritsu
Perlengkapan Rumah > Perkakas > Electrical Tester & Multimeter > Analog Insulation Tester Kyoritsu 3166 Original
Tersedia
Periksa harganya...
Lihat tempat menjual
Toko:3lleanoraLihat semua produk Perlengkapan Rumah oleh 3lleanora
  • Pengiriman Ekspres
  • Barang yang diperiksa
  • Bayar di tempat berlaku
  • Kualitas, Prestise
  • Pengembalian produk
  • Dukung pembuatan faktur
DeskripsiSpesifikasi

Detail Analog Insulation Tester Kyoritsu 3166 Original

Analog Insulation Tester Kyoritsu 3166 Original

specs :
• 1000V/2000MΩ
• Expanded megohm scale for easy reading.
• New robust housing case to prevent damage.
• AC voltmeter scale for easy reading.
• Neck strap for both hand’s operation.

*Insulation Resistance

DC Test Voltage =1000V
Max. effective scale value =2000MΩ
Mid-scale value =50MΩ
First effective measuring range =2 - 1000MΩ
Accuracy =±5% rdg
Second effective measuring ranges=1/2000MΩ
Accuracy =±10% rdg

*AC Voltage

AC Voltage =600V
Accuracy =±3% of full scale value

*General

Power source =R6 (AA) (1.5V) × 4
Dimensions =90(L) × 137(W) × 40(D)mm
Weight =330g approx.
Included Accessories =7025 (Test leads)
9067 (Pouch for test lead)
Neck Strap
R6 (AA) × 4
Instruction Manual

Gambar produk

Analog Insulation Tester Kyoritsu 3166 Original
Analog Insulation Tester Kyoritsu 3166 Original
Analog Insulation Tester Kyoritsu 3166 Original
Analog Insulation Tester Kyoritsu 3166 Original
