Detail AC DC Clamp Meter Kyoritsu KEW-2003A KEW 2003A

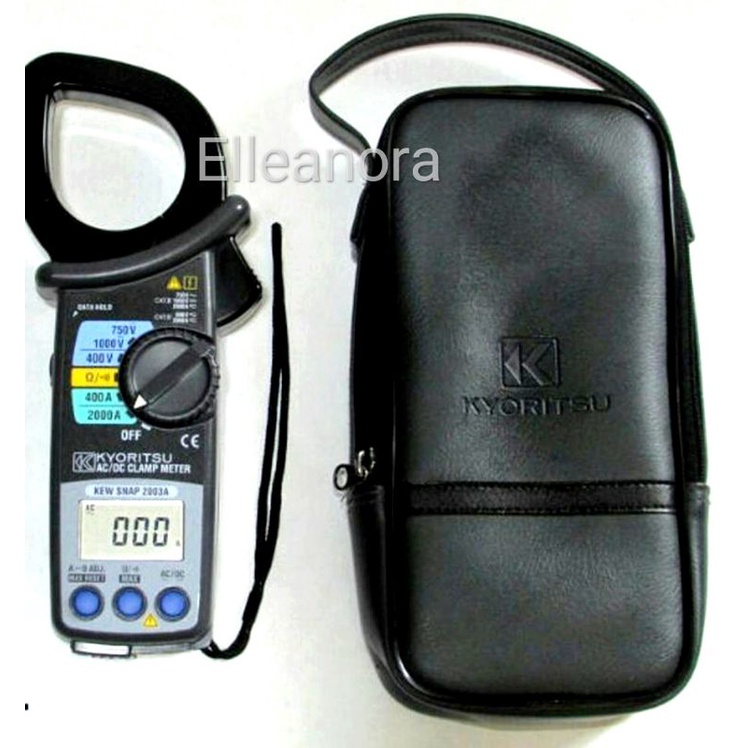

AC DC Clamp Meter Kyoritsu KEW-2003A KEW 2003A

Brand: Kyoritsu Japan
Type: KEW2003A

* Equipped to measure both AC and DC current with transformer jaws of large diameter.
* Can measure AC and DC currents up to 2000A.
* Output terminal for connection to recorders.

Specs:
* AC A:
- 400A/2000A (0 - 1000A)
±1.5%rdg±2dgt [50/60Hz]
±3%rdg±4dgt [40 - 500Hz]
±5%rdg±4dgt [500Hz - 1kHz]
- 2000A (1001 - 2000A)
±3%rdg±2dgt [50/60Hz]
* DC A: 400/2000A ±1.5%rdg±2dgt
* AC V: 400/750V
±1.5%rdg±2dgt [50/60Hz]
±1.5%rdg±4dgt [40Hz - 1kHz]
* DC V: 400/1000V ±1%rdg±2dgt
* Ohm: 400/4000Ω ±1.5%rdg±2dgt
* Continuity buzzer: buzzer sounds below 50±35Ω
* Conductor size: Ø55mm max.
* Frequency response: 40Hz - 1kHz
* Output Recorder :
- DC400mV against AC/DC400A
- DC200mV against AC/DC2000A
* Safety Standard: IEC 61010-1 CAT IV 600V , CAT III 1000V, IEC 61010-031,IEC 61010-2-032
* Power source: R6 (AA) (1.5V) × 2
* Dimensions: 250(L) × 105(W) × 49(D)mm
* Weight: 530g approx.
* Included Accessories
- 7107A (Test leads)
- 8201 (Output Plug)
- 9094 (Carrying Case)
- R6 (AA) × 2
- Instruction Manual
