Detail AC Clamp Meter Kyoritsu KEW-2002PA KEW 2002PA

AC Clamp Meter Kyoritsu KEW-2002PA KEW 2002PA

Brand: Kyoritsu Japan
Type: KEW2002PA

• Can measure large AC current up to 2000A.
• Peak hold function.
• 55mm-dia large tear drop shaped jaw

Specs:
*AC A:
- 400A (0 - 400A), ±1%rdg±3dgt [50/60Hz], ±2%rdg±3dgt [40Hz - 1kHz]
- 2000A (0 - 1500A), ±1%rdg±3dgt [50/60Hz], ±3%rdg±3dgt [40Hz - 1kHz]
- 2000A (1500 - 2000A), ±3.0%rdg [50/60Hz]
* AC V 40/400/750V, ±1%rdg±2dgt [50/60Hz], ±1.5%rdg±3dgt [40Hz - 1kHz]
* DC V: 40/400/1000V ±1%rdg±2dgt
* Ohm: 400Ω/4k/40k/400kΩ ±1.5%rdg±2dgt
* Continuity buzzer buzzer sounds below 50±35Ω
* Conductor size Ø55mm max.
* Frequency response : 40Hz - 1kHz
* Output Recorder :
- DC400mV against AC400A
- DC200mV against AC2000A
* Safety Standard: IEC 61010-1 CAT III 600V, CAT II 1000V, IEC 61010-2-031, IEC 61010-2-032
* Power source: R6 (AA) (1.5V) × 2
* Dimensions: 247(L) × 105(W) × 49(D)mm
* Weight: 470g approx.

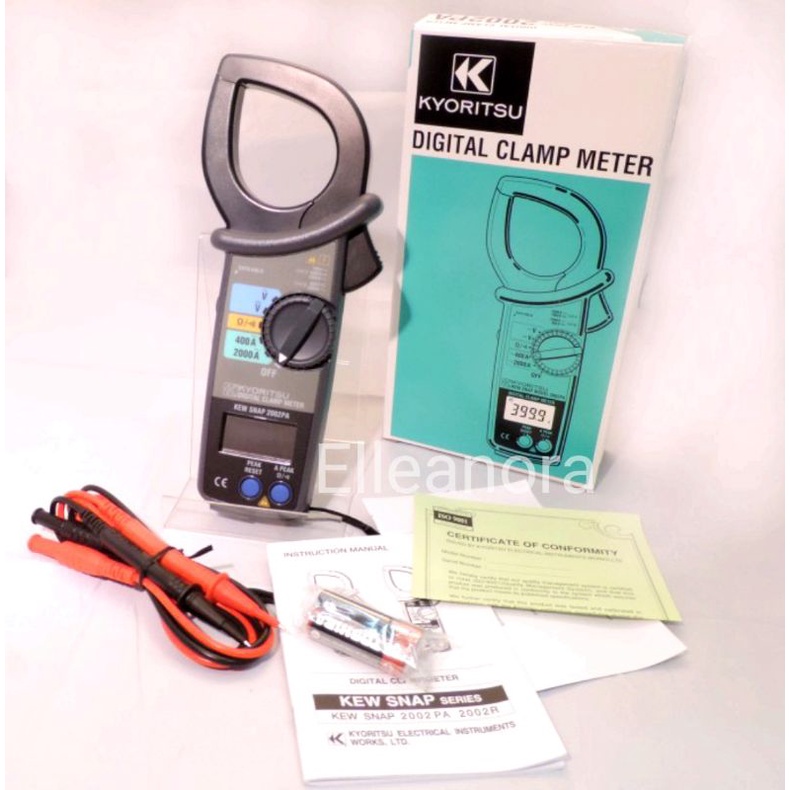

* Included Accessories:
- 7107A (Test leads)
- 8201 (Output Plug)
- 9094 (Carrying Case)
- R6 (AA) × 2
- Instruction Manual
