ASROCK MOTHERBOARD Intel Gen H510 mATX H510M-HDV/M.2

Detail ASROCK MOTHERBOARD Intel Gen H510 mATX H510M-HDV/M.2

Terima kasih Sudah berkunjung di Kurnia Abadi Semesta.
Demi kenyamanan bersama terkait harga, stock, warna, dll, harap konfirmasi terlebih dahulu sebelum order.
Terima kasih

H510M-HDV/M.2
Supports 10th Gen Intel® Core™ Processors and 11th Gen Intel® Core™ Processors
Supports DDR4 3200MHz (OC)
1 x PCIe 4.0 x16, 1 x PCIe 3.0 x1
Graphics Output Options: HDMI, DVI-D, D-Sub
7.1 CH HD Audio (Realtek ALC897 Audio Codec)
4 SATA3, 1 x Ultra M.2 (PCIe Gen3 x4 & SATA3)
4 x USB 3.2 Gen1 (2 x Rear, 2 x Front)
6 x USB 2.0 (4 x Rear, 2 x Front)
Intel® Gigabit LAN

CPU
- Supports 10th Gen Intel® Core Processors and 11th Gen Intel® Core Processors (LGA1200)
- 5 Power Phase design
- Supports Intel® Turbo Boost Max 3.0 Technology
Chipset
- Intel® H510

Memory
- Dual Channel DDR4 Memory Technology
- 2 x DDR4 DIMM Slots
- Supports DDR4 3200(OC) / 2933 / 2800 / 2666 / 2400 / 2133 non-ECC, un-buffered memory
- Supports ECC UDIMM memory modules (operate in non-ECC mode)
- Max. capacity of system memory: 64GB
- Supports Intel® Extreme Memory Profile (XMP) 2.0

Graphics
- 11th Gen Intel® Core Processors support Intel® Xe Graphics Architecture (Gen 12). 10th Gen Intel® Core Processors support Gen 9 Graphics
- Three graphics output options: D-Sub, DVI-D and HDMI
- Supports HDMI 2.0 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz with 11th Gen Intel® Core Processors
- Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096x2160) @ 30Hz with 10th Gen Intel® Core Processors
- Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz
- Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz
- Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.0 Port (Compliant HDMI monitor is required)
- Supports HDCP 2.2 with DVI-D and HDMI Ports (HDCP 2.3 ready with 11th Gen Intel® Core Processors)

Slots
11th Gen Intel® Core Processors
- 1 x PCI Express 4.0 x16 Slot
10th Gen Intel® Core Processors
- 1 x PCI Express 3.0 x16 Slot
- 1 x PCI Express 3.0 x1 Slot

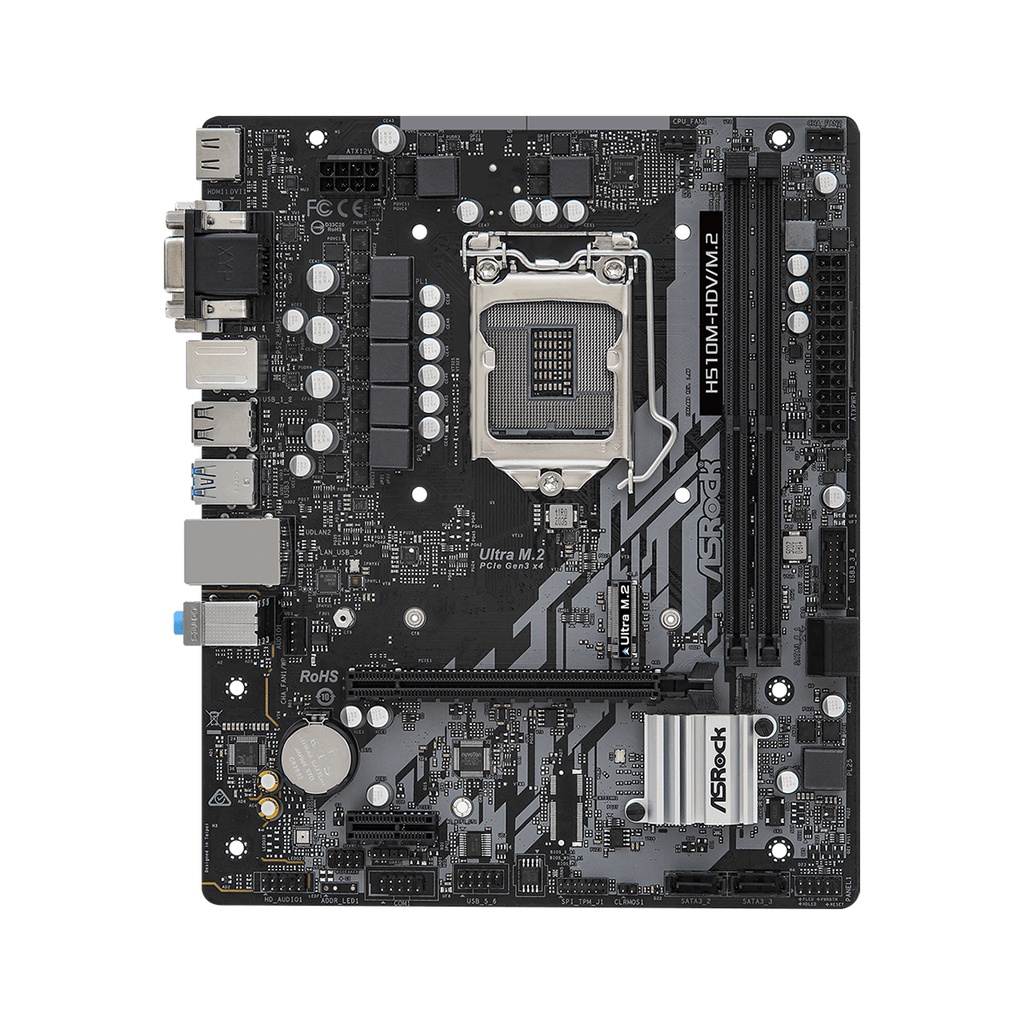

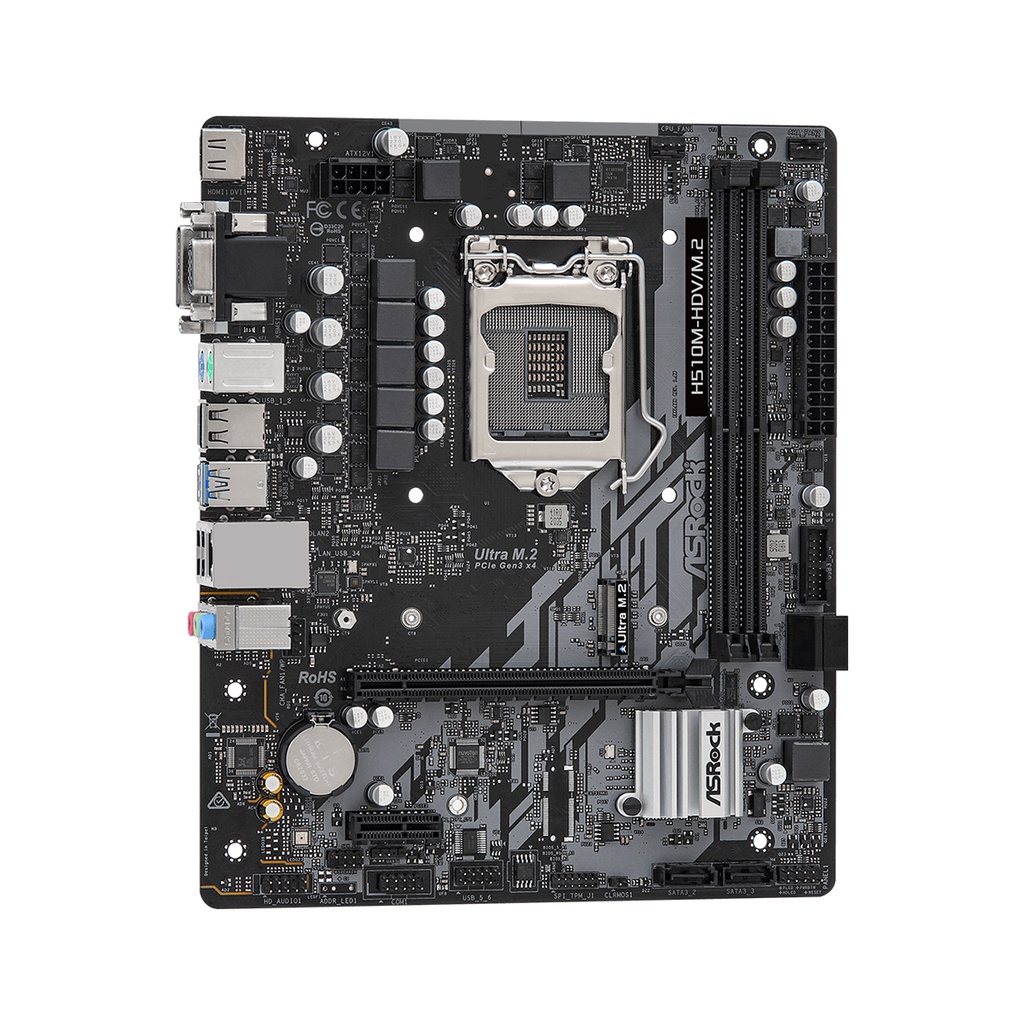

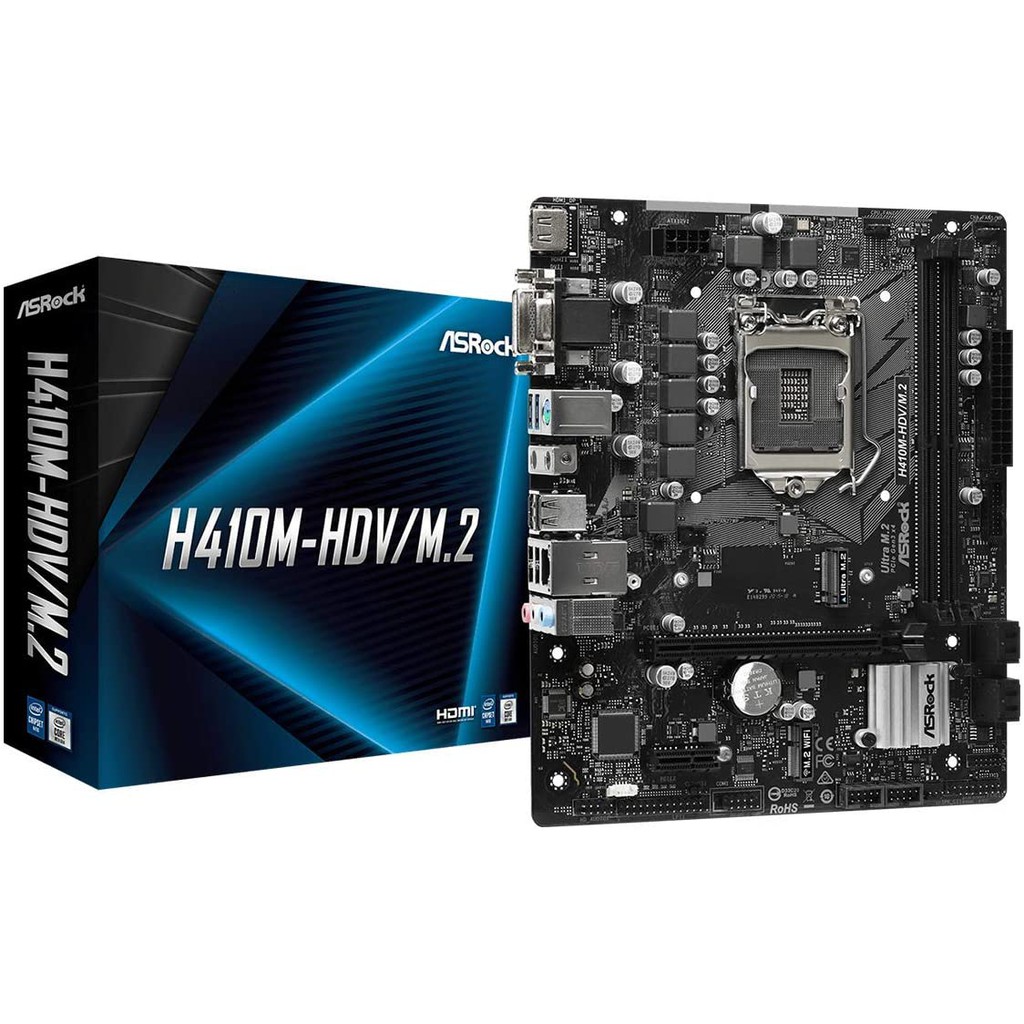

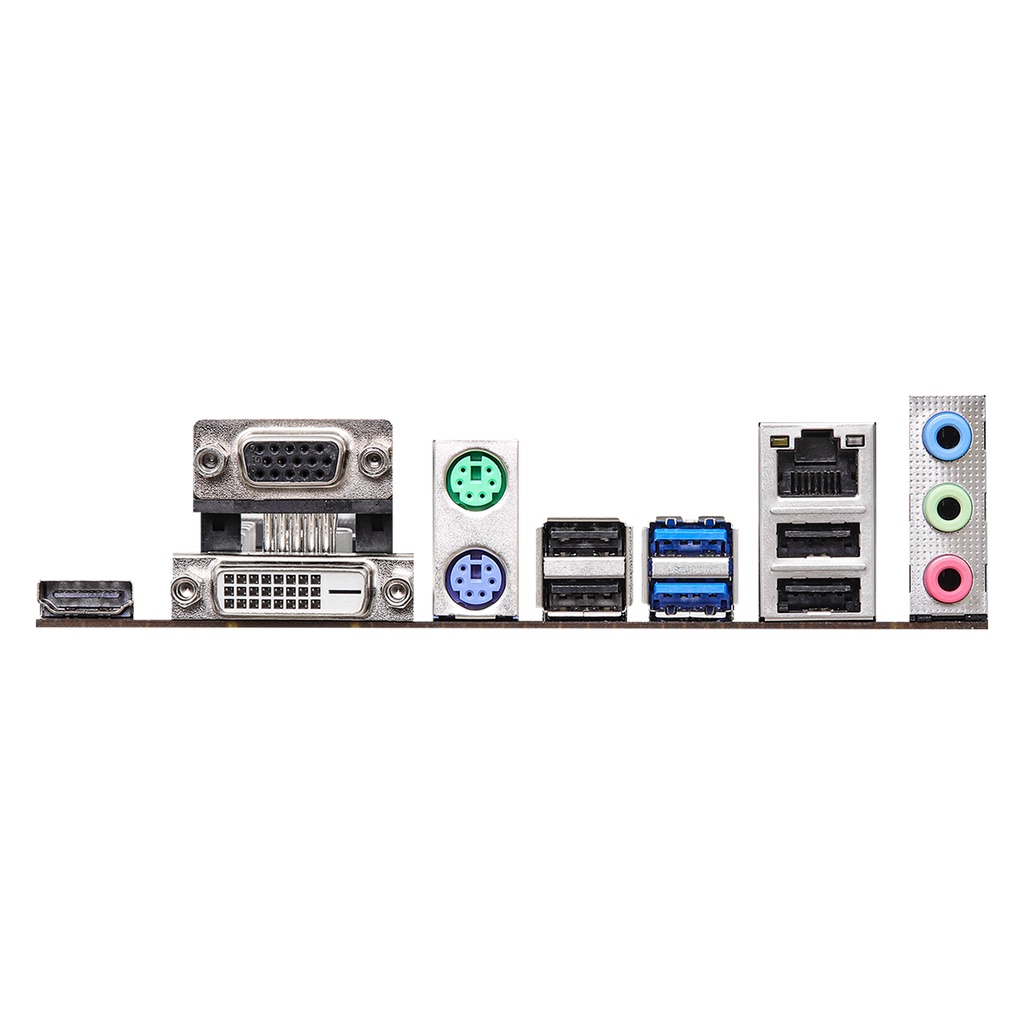

Gambar produk
