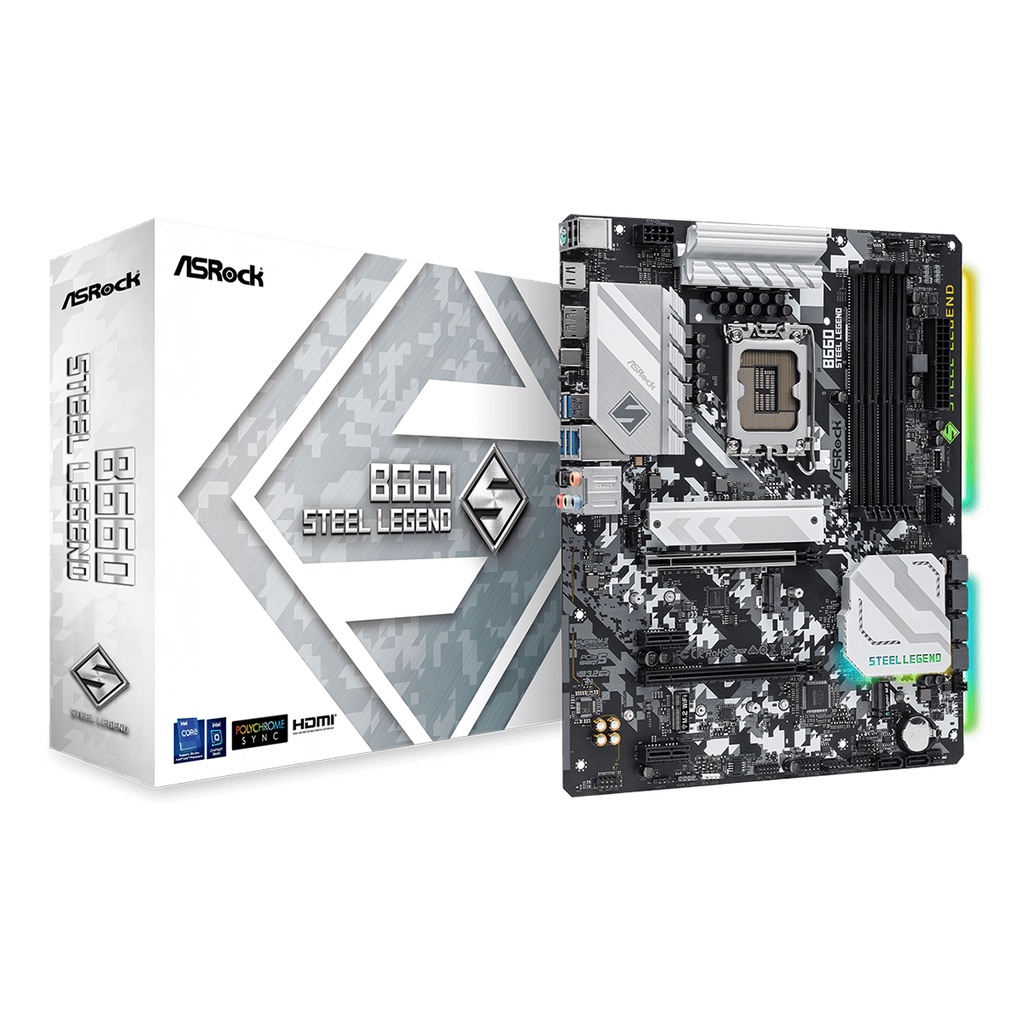

ASROCK MOTHERBOARD Intel Gen B660 ATX B660 Steel legend
Merek: Asrock | Lihat selengkapnya produk Komputer & Aksesoris dari AsrockDeskripsi singkat
Komputer & Aksesoris > Komponen Desktop & Laptop > Motherboard > ASROCK MOTHERBOARD Intel Gen B660 ATX B660 Steel legend
- Pengiriman Ekspres
- Barang yang diperiksa
- Bayar di tempat berlaku
- Kualitas, Prestise
- Pengembalian produk
- Dukung pembuatan faktur
Produk Terkait
Detail ASROCK MOTHERBOARD Intel Gen B660 ATX B660 Steel legend
Terima kasih Sudah berkunjung di Kurnia Abadi Semesta.Demi kenyamanan bersama terkait harga, stock, warna, dll, harap konfirmasi terlebih dahulu sebelum order.
Terima kasih
B660 Steel Legend
Supports 12th Gen Intel® Core™ Processors (LGA1700)
9 Phase Dr.MOS Power Design
Supports DDR4 5000MHz (OC)
1 PCIe 5.0 x16, 1 PCIe 4.0 x16, 2 PCIe 3.0 x1
1 M.2 Key-E for WiFi
Graphics Output Options: HDMI, DisplayPort
Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
6 SATA3
2 Hyper M.2 (PCIe Gen4 x4)
1 M.2 (PCIe Gen3 x2 & SATA3)
1 Front USB 3.2 Gen2x2 Type-C
1 Rear USB 3.2 Gen2 Type-C
6 USB 3.2 Gen1 (4 Rear, 2 Front)
4 USB 2.0 (2 Rear, 2 Front)
Dragon 2.5G LAN
Specifications :
Unique Feature
ASRock USB 3.2 Gen2
- ASRock Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)
- ASRock USB 3.2 Gen2 Type-C Port (10 Gb/s)
CPU
- Supports 12th Gen Intel® Core™ Processors (LGA1700)
- Digi Power design
- 9 Power Phase design
- Supports Intel® Hybrid Technology
- Supports Intel® Turbo Boost Max 3.0 Technology
Memory
- Dual Channel DDR4 Memory Technology
- 4 x DDR4 DIMM Slots
- Supports DDR4 non-ECC, un-buffered memory up to 5333+(OC)*
- Supports ECC UDIMM memory modules (operate in non-ECC mode)
- Max. capacity of system memory: 128GB
CPU:
- 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*
Chipset:
- 1 x PCIe 4.0 x16 Slot (PCIE3), supports x2 mode*
- 2 x PCIe 3.0 x1 Slots (PCIE2 and PCIE4)*
- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVi (Integrated WiFi/BT)
Storage
CPU:
- 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
Chipset:
- 1 x M.2 Socket (M2_2, Key M), supports type 2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x2 (16 Gb/s) modes*
- 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280/22110 PCIe Gen4x4 (64 Gb/s) modes*
- 4 x SATA3 6.0 Gb/s Connectors**
ASMedia ASM1061:
- 2 x SATA3 6.0 Gb/s Connectors
OS
- Microsoft® Windows® 10 64-bit / 11 64-bit
