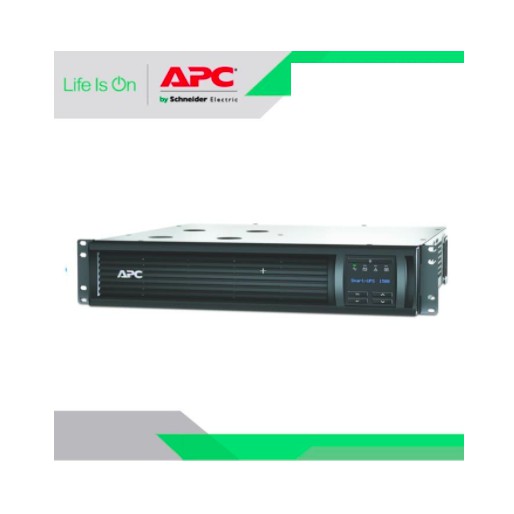

UPS APC SMT750RMI2UNC Smart-UPS 750VA LCD RM 2U 230V with SmartConnect

Detail UPS APC SMT750RMI2UNC Smart-UPS 750VA LCD RM 2U 230V with SmartConnect

OUTPUT
Max Configurable Power (Watts) : 500 Watts / 750VA
Output Voltage Distortion : Less than 5 %
Output Frequency (sync to mains) : 50/60 Hz +/- 3 Hz Sync to mains
Other Output Voltages : 220, 240
Topology : Line interactive
Waveform type : Sine wave
Transfer Time : 2 ms typical

INPUT
Input frequency : 50/60 Hz +/- 3 Hz Auto-sensing
Input voltage range for main operations : 151 - 302 Adjustable, 160 - 286V
Other Input Voltages : 220, 240

BATTERIES & RUNTIME
Battery type : Lead-acid battery
Typical recharge time : 3hour(s)
Replacement Battery : APCRBC123
Expected Battery Life (years) : 3 - 5
RBC Quantity : 1
Battery Charge Power (Watts) : 56 Watts

COMMUNICATIONS & MANAGEMENT

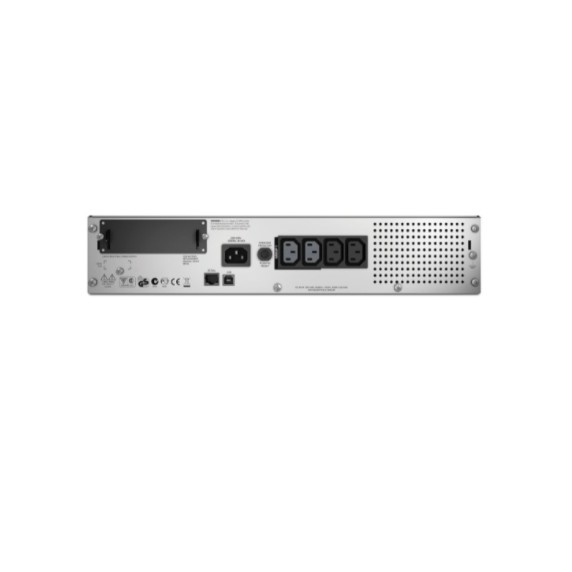

Interface Port(s) : RJ-45 10/100 Base-T, RJ-45 Serial, SmartSlot, USB
Pre-Installed SmartSlot™ Cards : AP9631
Control panel : LED status display with on line : on battery : replace battery and overload indicators, Multifunction LCD status and control console

SURGE PROTECTION & FILTERING
Surge energy rating : 459Joules

PHYSICAL
Maximum Height : 89MM, 8.9CM
Maximum Width : 432MM, 43.2CM
Maximum Depth : 406MM, 40.6CM
Net Weight : 17.24KG
Shipping weight : 21.18KG
Shipping Height : 241MM, 24.1CM
Shipping Width : 546MM, 54.6CM
Shipping Depth : 584MM, 58.4CM
Color : Black
Units per Pallet : 16.0

ENVIRONMENTAL
Operating Temperature : 0 - 40 °C
Operating Relative Humidity : 0 - 95 %
Operating Elevation : 0 - 3048meters
Storage Temperature : -15 - 45 °C
Storage Elevation : 0 - 15240meters
Audible noise at 1 meter from surface of unit : 42.0dBA
Online thermal dissipation : 46.0BTU/hr

CONFORMANCE
Approvals : CE, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, VDE
Standard warranty : 3 years repair or replace (excluding battery) and 2 years for battery
