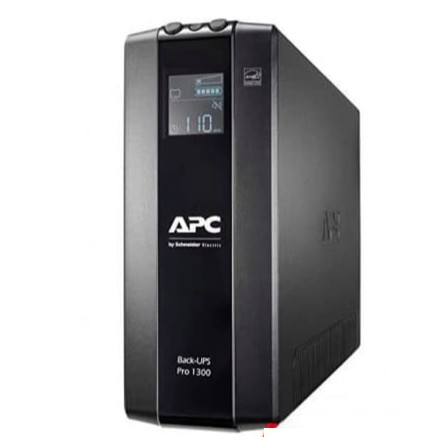

APC BR1300MI PRO 1300 1300VA 780WATT LCD

Detail APC BR1300MI PRO 1300 1300VA 780WATT LCD

PC BR1300MI PRO 1300 1300VA 780WATT LCD
PC BR1300MI PRO 1300 1300VA 780WATT LCD
Technical Specifications
Print Technical Specification
Download
Output
Max Configurable Power (Watts)
780Watts / 1.3kVA
Output Frequency (sync to mains)
50/60 Hz +/-1 Hz
Topology
Line Interactive
Input
Input frequency
50/60 Hz +/- 3 Hz (auto sensing)
Input voltage range for main operations
176 - 294V
Batteries & Runtime
Battery type
Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
Typical recharge time
16hour(s)
Expected Battery Life (years)
3 - 5
RBC Quantity
1
Battery Volt-Amp-Hour Capacity
177
Runtime
View Runtime Graph
View Runtime Chart
Communications & Management
Interface Port(s)
USB
Control panel
Multi-function LCD status and control console
Audible Alarm
Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
Surge Protection and Filtering
Surge energy rating
509Joules
Data Line Protection
RJ45 10/100/1000 Base-T Ethernet protection
Filtering
Full time multi-pole noise filtering :10% of IEEE surge let-through : zero clamping response time: instantaneous
Physical
Maximum Height
100MM, 10.0CM
Maximum Width
250MM, 25.0CM
Maximum Depth
382MM, 38.2CM
Net Weight
10.2KG
Shipping weight
11.85KG
Shipping Height
330MM, 33.0CM
Shipping Width
485MM, 48.5CM
Shipping Depth
225MM, 22.5CM
Color
Black
