Super Arc Generator Input 3-6 VDC Output 800 -1000 KV H901 DC Pulse High Voltage Pembangkit Tegangan Tinggi DC

Detail Super Arc Generator Input 3-6 VDC Output 800 -1000 KV H901 DC Pulse High Voltage Pembangkit Tegangan Tinggi DC

Pulse high voltage package inverter 901 DC high voltage module arc generator 3-6V 800-1000KV

This module is a finished module of high-voltage inverter , transformer / booster for scientific small production

After inputting DC3.7V-6V voltage at the input end, you can get tens of thousands of volts DC high voltage at the output end

It can be used as a high-voltage source for general experiments, electronic instruments, negative ion generators, and small scientific production

The module is made using the principle of Tesla coil, output high voltage pulse current, small size, high efficiency

The peripheral circuit is simple (just connect the switch, the battery can be) discharge intensity is violent.

Note that this is not a high-temperature arc, so you can’t lighten cigarettes and paper.

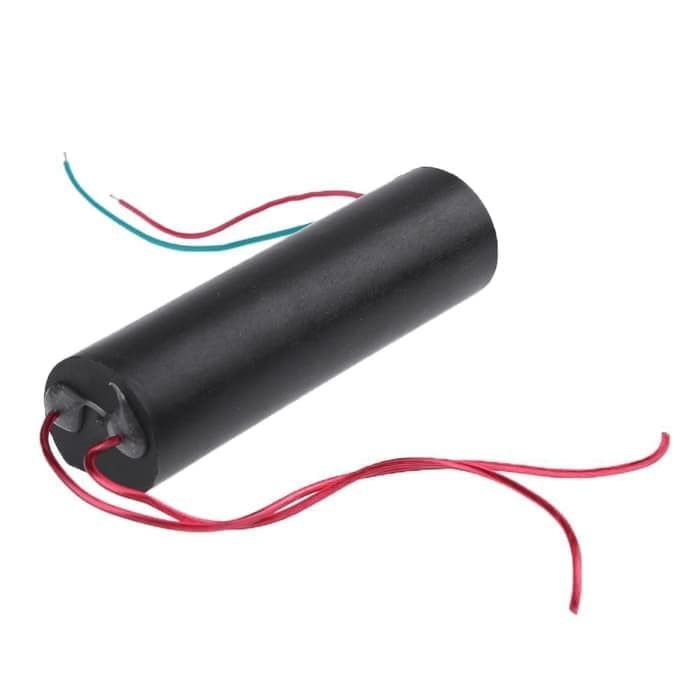

The module has an input terminal and an output terminal. The red and green wires are the input, the red positive and the green are negative, and the output is two high-voltage wires of the same color. A high-voltage arc can be generated by connecting the battery to the input.
Please operate the module strictly in accordance with the usage methods and precautions, otherwise it is easy to damage the module!

Regarding the input power supply: you can use a single 3.7V lithium battery or two in parallel, such as 18650 batteries, idle mobile phone batteries (with the protection board removed, the recommended capacity is more than 2000mAh) or nickel-cadmium/nickel-metal hydride battery packs, 4V or 6V lead Acid battery, etc. (6V battery can achieve the best effect)
1. The high-voltage module should be avoided when the high-voltage is energized when there is no load. The proper distance between the high-voltage wire ends must be adjusted before power-on. The arc distance of the high-voltage wire is proportional to the battery voltage and capacity used.

Gambar produk
