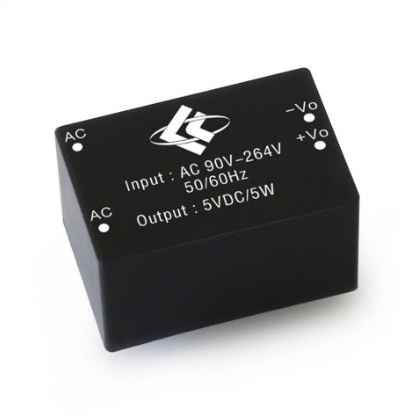

Power Module AC to DC Isolated Power AC 220V to DC 5V 1000mA 1A 5W AC DC Isolated Supply

Detail Power Module AC to DC Isolated Power AC 220V to DC 5V 1000mA 1A 5W AC DC Isolated Supply

Description:
Isolating the switching power supply, isolating the input and output, reducing the mutual influence and providing a safer output.

Features:
1>. Support over-voltage protection;
2>. Support over-current protection;
3>. Support over-temperature protection;
4>. Support short circuit protection;
5>. Isolated output;
6>. Dust-proof;
7>. Moisture proof;
8>. Shockproof;
9>. Flame retardant;
10>. Small size;
11>. High efficiency;
12>. High performance;
13>. Multiple protection;
14>. Stable.

Parameters:
1>. Input voltage: AC 90~264V;
2>. Output voltage: DC 4.8V~5.1V(Typical value 5V);
3>. Output power: 5W(max);
4>. Color: Black;
5>. Service life: 300000 hours;
6>. Operating Temperature: -20℃~70℃;
7>. Operating Humidity: 5%-90%RH;

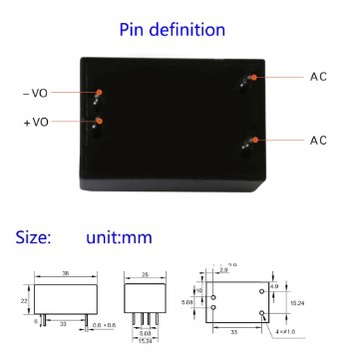

8>. Size: 38*25*30mm;

Function:
1>. Converter AC to DC;
2>. Converter high voltage to low voltage.

Using Steps:
1>. Step 1: Connect load at two output terminal;
2>. Step 2: Connect input power supply at two input terminal.
Note: Please pay attention to operation safety when using high voltage!

Application:
1>. Ordinary power supply
2>. Battery charger
3>. LED drive power
4>. Instrument voltage display
5>. Test meter
6>. Circuit test
7>. Power conversion

Package:
1pcs AC-DC Isolation Power Supply
