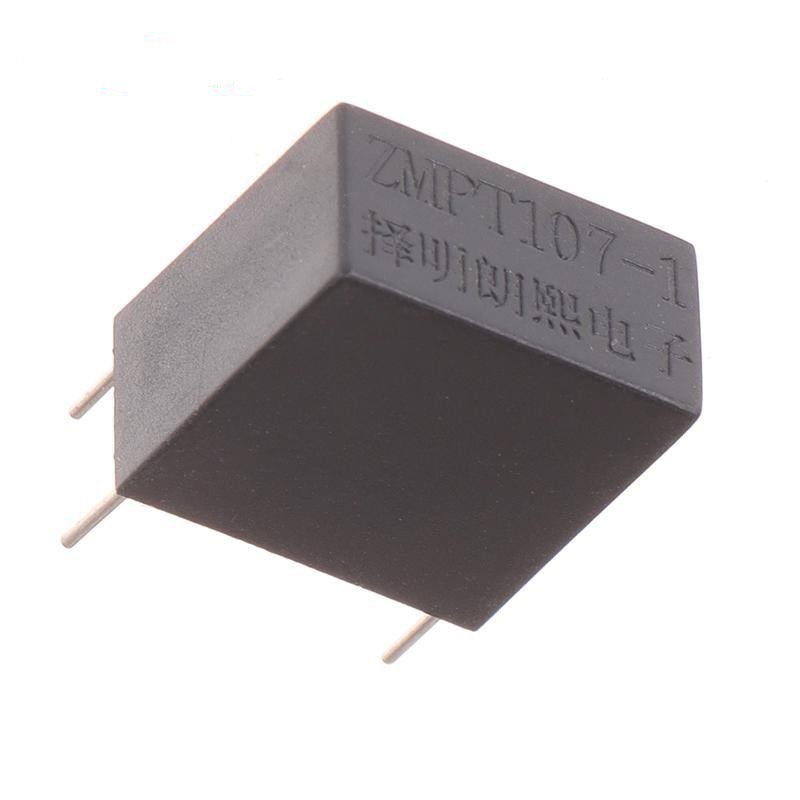

Detail 2mA/2mA precision current and voltage transformer ZMPT107 Alternatif

small, High precision, Consistency, For precise current and power measurement.

Rated Input Current: 2mA
Rated output current: 2mA
Ratio: 1000:1000
Phase (when the rated input) : <= 45(50 ohm)
The linear range: 0~1000V(50 ohm)
Linearity :<=0.3%
Isolation voltage: 3000V

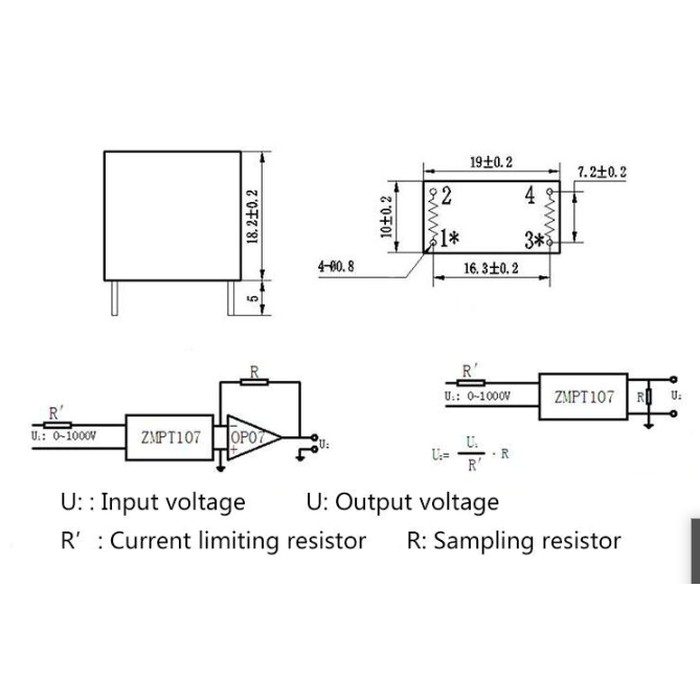

Use measuring:
For accurate measurement of voltage and power
Sealing material: Epoxy
Installation: PCB installation
Operating temperature: -40 to +60 degrees
