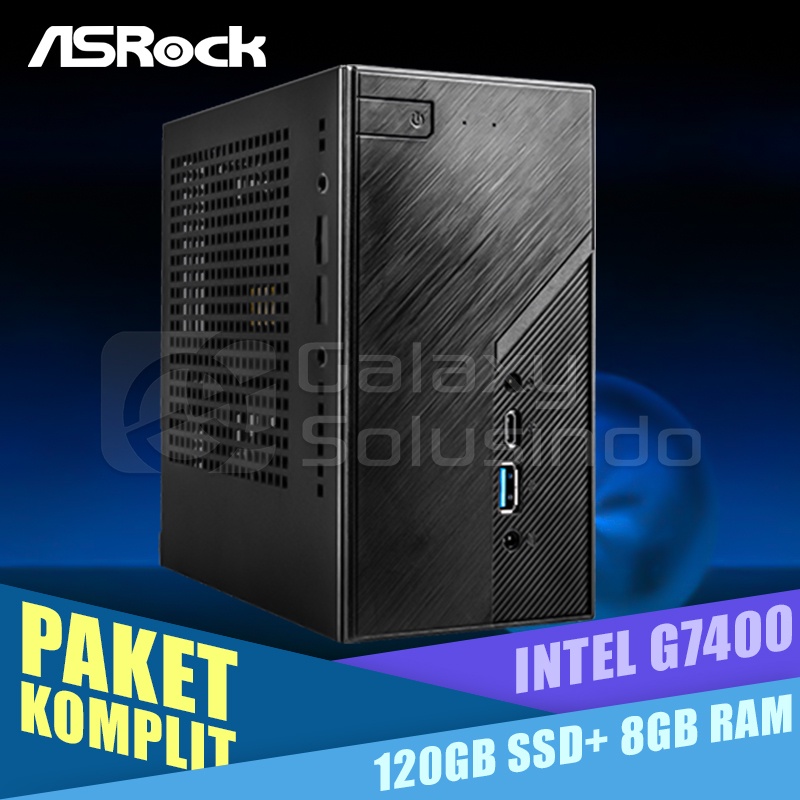

PAKET Asrock DESKMINI B660 Intel Pentium Gold G7400 + SSD 120Gb + Memory 8GB - PC Mini

Detail PAKET Asrock DESKMINI B660 Intel Pentium Gold G7400 + SSD 120Gb + Memory 8GB - PC Mini

Asrock DESKMINI B660

Paket Intel Pentium Gold G7400 + SSD 120Gb + Memory 8GB
SPECIFICATION :

CPU
- Supports 12th Gen Intel® Core™ Processors (LGA1700), Max. TDP 65W
Cooler
- Supports Intel® CPU Cooler (Max. Height ≦ 47mm)
Memory
- Supports 2 x SO-DIMM DDR4-3200MHz, Max. 64GB (non-ECC)
Chipset
- Intel® B660
Graphics
- HDMI (4K@60Hz)
- DisplayPort 1.4
- DisplayPort 1.4 (over USB Type-C Alt Mode)
- D-Sub

*Supports up to 4 displays simultaneously
Audio
- Realtek ALC269 Audio Codec
Storage
- 2 x SATA3 6Gb 2.5-inch 7mm/9.5mm Hard Drive (RAID 0/1)
- 1 x Blazing M.2 Socket (M2_1), support type 2280 PCIe Gen5x4 (128 Gb/s) mode*
- 1 x Hyper M.2 Socket (M2_2), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*

*Supports Intel® Optane™ Technology
Supports NVMe SSD as boot disks
Supports Intel® Volume Management Device (VMD)
LAN
- Gigabit LAN (Intel® I219V)
WLAN
- 1 x M.2 Socket (Key E), supports type 2230 Wi-Fi/BT module and Intel® CNVi (Integrated Wi-Fi/BT)
Front I/O
- 1 x MIC-In
- 1 x USB 3.2 Gen2x2 Type-C Port (20 Gb/s) (Supports ESD Protection)
- 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection)
- 1 x Head Phone with MIC Jack
Rear I/O
- 1 x DC-In Jack (Compatible with the 19V power adapter)
- 1 x D-Sub Port
- 1 x HDMI Port
- 1 x DisplayPort 1.4
- 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (Supports USB Type-C Alt Mode)
- 2 x USB 3.2 Gen1 Type-A Ports (Supports ESD Protection)
- 2 x USB 2.0 Ports (Supports ESD Protection)
- 1 x RJ-45 LAN Port with LED
Connectors
- 1 x USB 2.0 Header
- 1 x Front Panel Header
- 2 x 4-Pin fan connectors (CPU, SYS)
- 1 x Internal Speaker Header (4-Pin)
- 1 x Audio Header (4-Pin)
Accessory
- 2 x SATA Data with Power Cable
- 1 x 120W/19V adapter
- 1 x Screws Pack

Gambar produk
