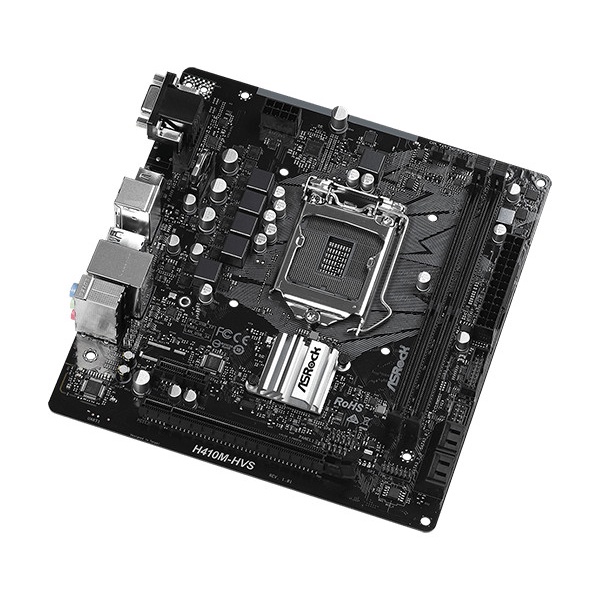

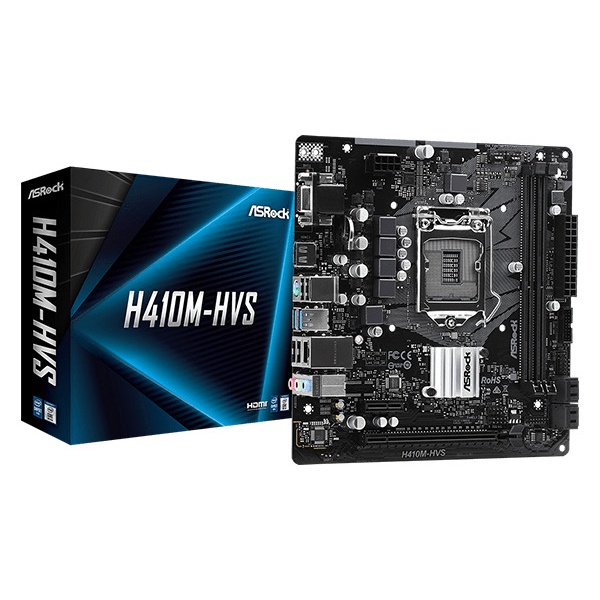

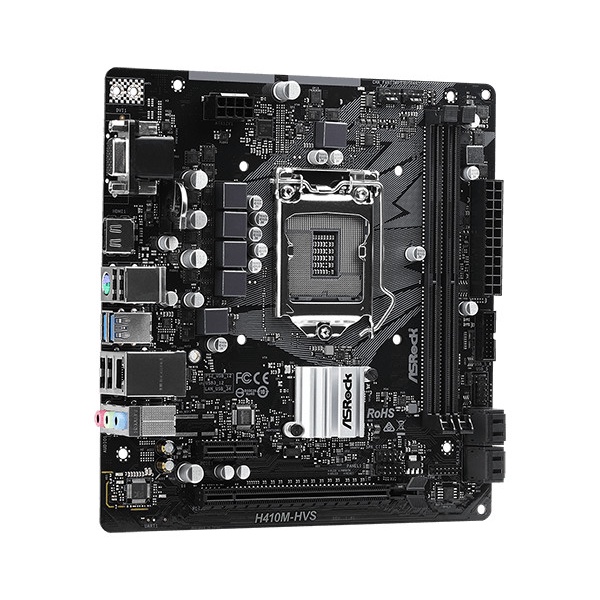

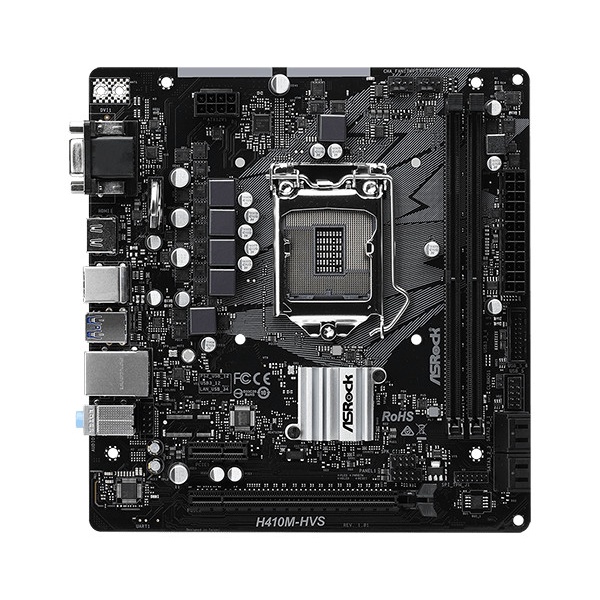

Motherboard M-ATX ASROCK H410M-HVS LGA 1200 Support Generasi 10

Detail Motherboard M-ATX ASROCK H410M-HVS LGA 1200 Support Generasi 10

Motherboard M-ATX ASROCK H410M-HVS LGA 1200 Support Generasi 10

H410M-HVS
Supports 10th Gen Intel® Core™ Processors (Socket 1200)
Supports DDR4 2933MHz
1 PCIe 3.0 x16, 1 PCIe 3.0 x1
Graphics Output Options : HDMI, D-Sub
7.1 CH HD Audio (Realtek ALC887 Audio Codec)
4 SATA3
4 USB 3.2 Gen1 (2 Front, 2 Rear)

CPU
- Supports 10th Gen Intel® Core™ Processors (Socket 1200)
- Digi Power design
- 5 Power Phase design
- Supports Intel® Turbo Boost Max 3.0 Technology

Chipset
- Intel® H410

Memory
- Dual Channel DDR4 Memory Technology
- 2 x DDR4 DIMM Slots
- Supports DDR4 2933 / 2800 / 2666 / 2400 / 2133 non-ECC, un-buffered memory*
- Supports ECC UDIMM memory modules (operate in non-ECC mode)
- Max. capacity of system memory: 64GB

Audio
- 7.1 CH HD Audio (Realtek ALC887 Audio Codec)
- Supports Surge Protection

LAN
- PCIE x1 Gigabit LAN 10/100/1000 Mb/s
- 1 x Realtek RTL8111H
- Supports Wake-On-LAN
- Supports Lightning/ESD Protection
- Supports Energy Efficient Ethernet 802.3az
- Supports PXE

Slots
- 1 x PCI Express 3.0 x16 Slot
- 1 x PCI Express 3.0 x1 Slot

Storage
- 4 x SATA3 6.0 Gb/s Connectors, support NCQ, AHCI and Hot Plug

Connector
- 1 x SPI TPM Header
- 1 x Chassis Intrusion and Speaker Header
- 1 x CPU Fan Connector (4-pin)*
- 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**
- 1 x 24 pin ATX Power Connector
- 1 x 8 pin 12V Power Connector
- 1 x Front Panel Audio Connector
- 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection)
- 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)
