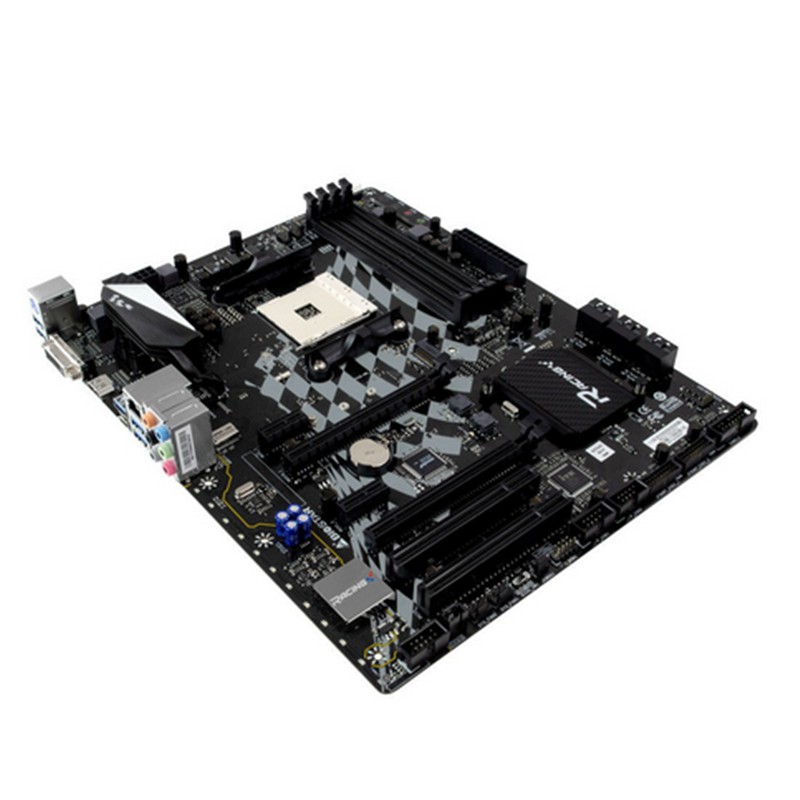

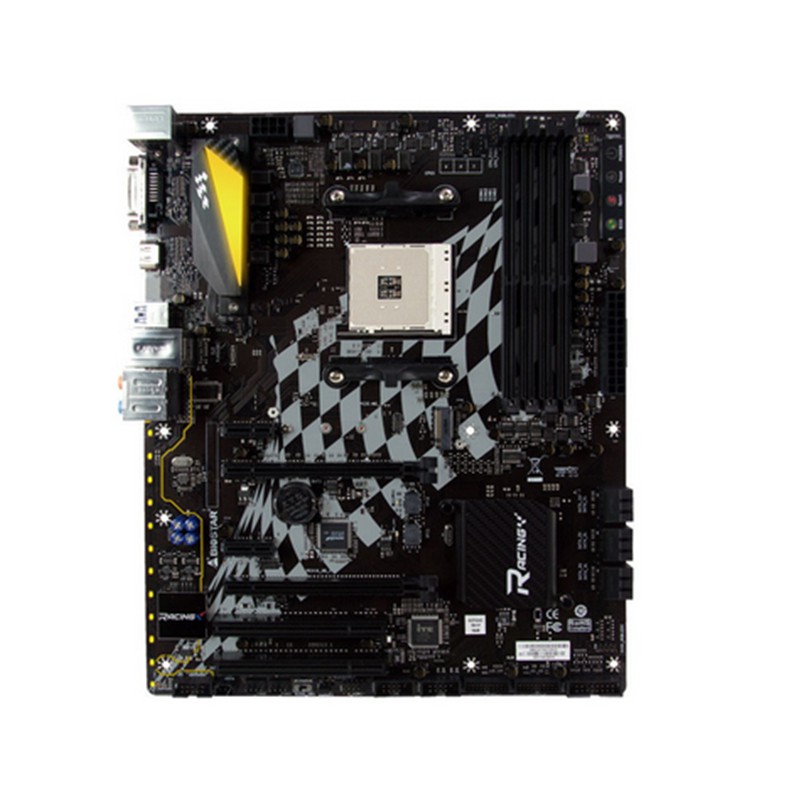

Motherboard Biostar RACING X370GT5 AMD Socket AM4

Detail Motherboard Biostar RACING X370GT5 AMD Socket AM4

FEATURES
VIVID LED DJ
5050 LED FUN ZONE
Supports Double Hi-Fi
GT TOUCH
Dual BIOS
Supports 100% Solid capacitor
Supports BIOS-Flasher
Supports BIOS Online Update

TECH SPECS
Chipset: AMD X370
CPU SUPPORT: AMD A-series APU / Ryzen CPU / NPU for Socket AM4; Maximum CPU TDP (Thermal Design Power): 95Watt
MEMORY: Support Dual Channel DDR4 3200(OC)/ 2933(OC)/ 2667/ 2400/ 2133/ 1866 MHz; Support Non-ECC & ECC Un-buffered DIMM Memory modules; 4 x DDR4 DIMM Memory Slot; Max. Supports up to 64GB Memory
EXPANSION SLOT: 1 x PCI-E 3.0 x16 Slot(x16 for Ryzen CPU only, NPU/APU run at x8 speed); 1 x PCI-E 2.0 x16 Slot(x4)(share bandwidth w/ PCI-E x1 slot, when PCI-E x1 is occupied, PCI-E x16(x4) will run at x1 speed); 2 x PCI-E 2.0 x1 Slot; 2 x PCI Slot
STORAGE: 6 x SATA3 Connector
USB: 1 x USB 3.1 Gen2 Type-C Port, 1 x USB 3.1 Gen2 Port, 4 x USB 3.1 Gen1 Port, 2 x USB 3.1 Gen1 Header, 2 x USB 2.0 Header
LAN: Realtek RTL8118AS - 10/100/1000 Controller
MULTI GRAPHICS: 2-way AMD Crossfire Technology
INTEGRATED VIDEO: By CPU model
CODEC: Realtek ALC892 8-Channel Blu-ray Audio
REAR I/O: 1 x PS/2, 1 x USB 3.1 Gen2 Type-C Port, 1 x USB 3.1 Gen2 Port, 4 x USB 3.1 Gen1 Port, 1 x HDMI Connector, resolution up to 4096 x 2160 @24Hz or 3840 x 2160 @30Hz, 1 x DVI-D Connector, resolution up to 1920 x 1200 @60Hz, 1 x RJ-45 Port, 6 x Audio Connector
INTERNAL I/O: 2 x USB 3.1 Gen1 Header, 2 x USB 2.0 Header, 6 x SATA3 6Gb/s Connector, 1 x M.2 Key M 32Gb/s Connector, support M.2 type 2242/ 2260/ 2280 SATA 6Gb/s & PCI-E Storage, 1 x Front Audio Header, 1 x Front Panel Header, 1 x S/PDIF-Out Header, 2 x CPU Fan Header, 2 x System Fan Header, 1 x Serial Header, 2 x 5050 LED Header
DIMENSION: ATX Form Factor Dimension: 30.5cm x 24.4cm ( W x L )
BUNDLE SOFTWARE: Racing GT Utility, FLY.NET, BullGuard
ACCESSORIES: 4 x SATA Cable, 1 x I/O Shield, 1 x DVD Driver, 1 x User Manual

Gambar produk
