BIOSTAR RACING B450GT3 AMD B450 AM4 DDR4 For ATX Motherboard

Detail BIOSTAR RACING B450GT3 AMD B450 AM4 DDR4 For ATX Motherboard

FEATURES
VIVID LED DJ

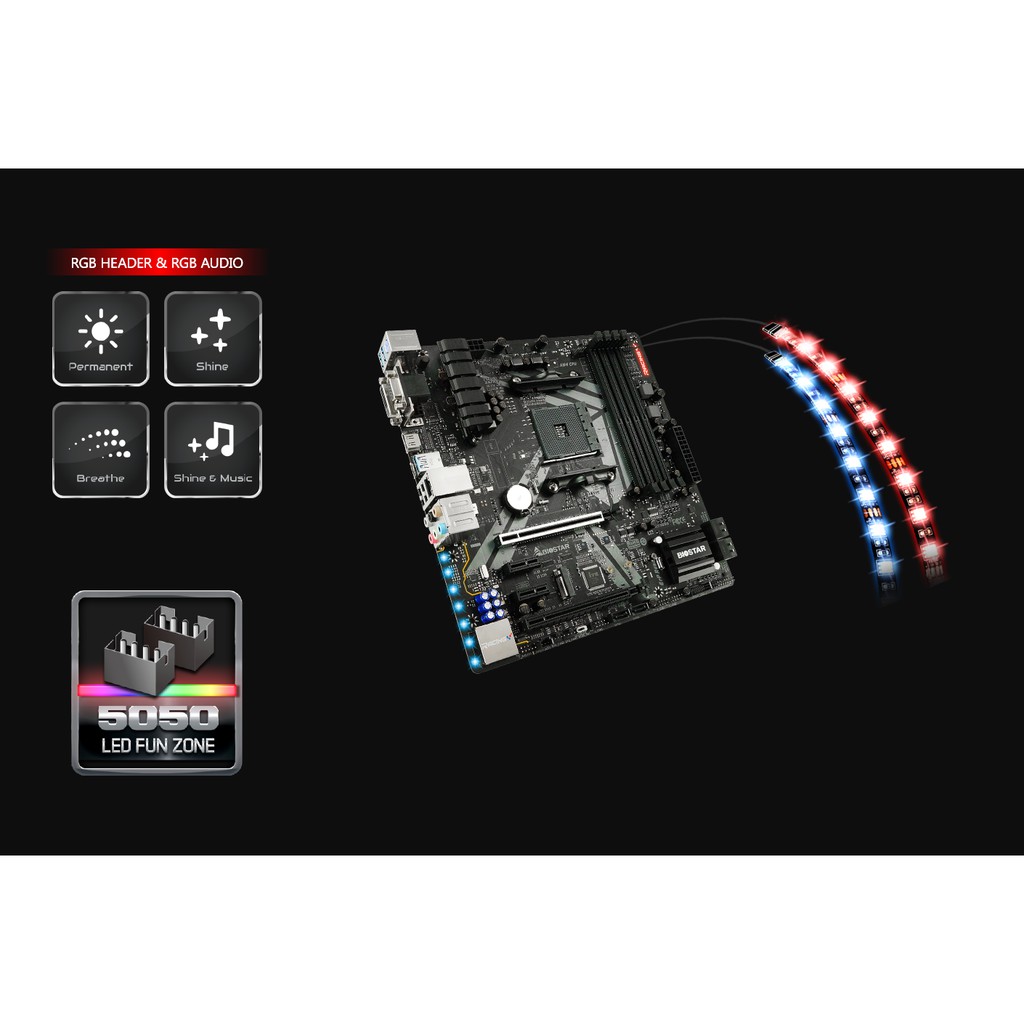

5050 LED FUN ZONE
Dual BIOS
Supports BIOS-Flasher
Iron Slot Protection

TECH SPECS
Chipset: AMD B450
CPU SUPPORT: AMD A-series APU / Ryzen CPU / NPU for Socket AM4; Maximum CPU TDP (Thermal Design Power): 105Watt
MEMORY: Support Dual Channel DDR4 1866/2133/2400/2666/2933/3200(OC) MHz; Max. Supports up to 64GB Memory; Each DIMM supports non-ECC 8/16 GB DDR4 module
INTEGRATED VIDEO: By CPU model
EXPANSION SLOT: 1 x PCI-E 3.0 x16 Slot(x16 for Ryzen CPU only, NPU/APU run at x8 speed), 1 x PCI-E 2.0 x16 Slot(x4)(share bandwidth w/ PCI-E x1 slot, when PCI-E x1 is occupied, PCI-E x16(x4) will run at x1 speed), 2 x PCI-E 2.0 x1 Slot, 2 x PCI Slot
STORAGE: 4 x SATA3 Connector
USB: 1 x USB 3.1 Gen2 Type-C Port, 1 x USB 3.1 Gen2 Port, 4 x USB 3.1 Gen1 Port, 1 x USB 3.1 Gen1 Header, 2 x USB 2.0 Header
LAN: Realtek RTL8118AS - 10/100/1000 Controller
MULTI GRAPHICS: 2-way AMD Crossfire Technology
INTEGRATED VIDEO: By CPU model
CODEC: Realtek ALC892 8-Channel Blu-ray Audio
REAR I/O: 1 x PS/2, 1 x USB 3.1 Gen2 Type-C Port, 1 x USB 3.1 Gen2 Port, 4 x USB 3.1 Gen1 Port, 1 x HDMI Connector, resolution up to 4096 x 2160 @24Hz or 3840 x 2160 @30Hz, 1 x DVI-D Connector, resolution up to 1920 x 1200 @60Hz, 1 x RJ-45 Port, 6 x Audio Connector
INTERNAL I/O: 1 x USB 3.1 Gen1 Header, 2 x USB 2.0 Header, 4 x SATA3 6Gb/s Connector, 1 x M.2 Key M 32Gb/s Connector, support M.2 type 2242/ 2260/ 2280 SATA 6Gb/s & PCI-E Storage, 1 x Front Audio Header, 1 x Front Panel Header, 1 x S/PDIF-Out Header, 2 x CPU Fan Header, 2 x System Fan Header, 1 x Serial Header, 2 x 5050 LED Header
DIMENSION: ATX Form Factor Dimension: 30.5cm x 24.4cm ( W x L )
BUNDLE SOFTWARE: Racing GT Utility, FLY.NET, BullGuard
ACCESSORIES: 4 x SATA Cable, 1 x I/O Shield, 1 x DVD Driver, 1 x User Manual
