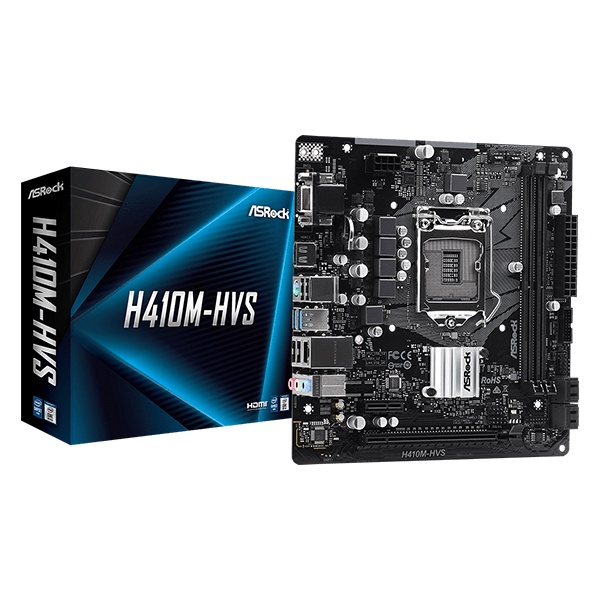

Motherboard ASRock H410M-HVS LGA1200

Detail Motherboard ASRock H410M-HVS LGA1200

CATATAN TOKO :
- Konfirmasi Stok Barang Terlebih Dahulu (Via chat)
- Penukaran Barang / Salah Kirim barang : WAJIB Video Unboxing Paket saat diterima sampai tujuan.
- TIDAK menerima komplain tanpa Video Unboxing Paket.
- Membeli berarti menyetujui ketentuan Toko. Terima kasih

Spesifikasi :
ASRock H410M-HVS
H410M-HVS
-Supports 10th Gen Intel® Core™ Processors (Socket 1200)
-Supports DDR4 2933MHz
-1 PCIe 3.0 x16, 1 PCIe 3.0 x1
-Graphics Output Options : HDMI, D-Sub
-7.1 CH HD Audio (Realtek ALC887 Audio Codec)
-4 SATA3
-4 USB 3.2 Gen1 (2 Front, 2 Rear)


Unique Feature
ASRock Super Alloy
- Premium 50A Power Choke
- Sapphire Black PCB
- High Density Glass Fabric PCB
ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
ASRock Live Update & APP Shop

CPU
- Supports 10th Gen Intel® Core™ Processors (Socket 1200)
- Digi Power design
- 5 Power Phase design
- Supports Intel® Turbo Boost Max 3.0 Technology

Chipset
- Intel® H410

Memory
- Dual Channel DDR4 Memory Technology
- 2 x DDR4 DIMM Slots
- Supports DDR4 2933/2800/2666 / 2400 / 2133 non-ECC, un-buffered memory*
- Supports ECC UDIMM memory modules (operate in non-ECC mode)
- Max. capacity of system memory: 64GB**
- Supports Intel® Extreme Memory Profile (XMP) 2.0
- 15μ Gold Contact in DIMM Slots

*Please refer to Memory Support List on ASRock's website for more information.
Core™ (i9/i7) support DDR4 up to 2933; Core™ (i5/i3), Pentium® and Celeron® support DDR4 up to 2666.

**Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.

BIOS
- 128Mb AMI UEFI Legal BIOS with multilingual GUI support
- ACPI 6.0 Compliant wake up events
- SMBIOS 2.7 Support
- CPU Core/Cache, GT, DRAM, PCH +1.0V, VCCST Voltage Multi-adjustment
