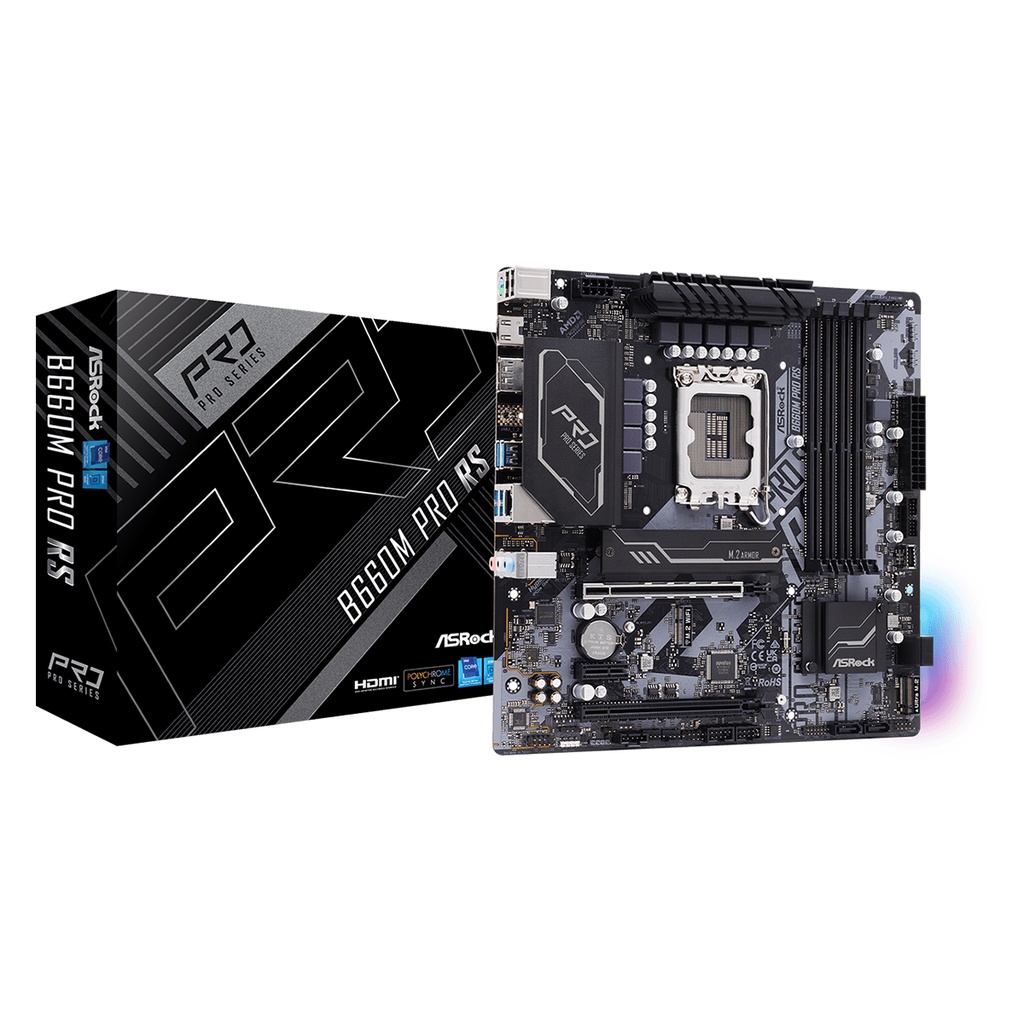

Motherboard ASROCK B660M Pro RS Intel B660 LGA 1700 Micro ATX

Detail Motherboard ASROCK B660M Pro RS Intel B660 LGA 1700 Micro ATX

CPU
- Intel® Socket LGA1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors

Chipset
- Intel B660

Memory
- 4 x DIMM, Max. 128GB, DDR4 up to 4800+ (OC)*
*Supports DDR4 3200 natively.

Graphics
- Intel® Xe Graphics Architecture (Gen 12)
- Dual graphics output: support HDMI and DisplayPort 1.4 ports by independent display controllers
- Supports HDMI 2.1 TMDS Compatible with max. resolution up to 4K x 2K (4096x2160) @ 60Hz
- Supports DisplayPort 1.4 with DSC (compressed) max. resolution up to 8K (7680x4320) @ 60Hz / 5K (5120x3200) @ 120Hz
- Supports HDCP 2.3 with HDMI 2.1 TMDS Compatible and DisplayPort 1.4 Ports
*Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.

Expansion Slots
- 2 x PCIe x16 Slots (PCIE1/PCIE3: single at Gen4x16 (PCIE1); dual at Gen4x16 (PCIE1) / Gen3x4 (PCIE3))*
- 1 x PCIe Gen3x1 Slot
- Supports AMD CrossFire™
- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVi (Integrated WiFi/BT)
*Supports NVMe SSD as boot disks

Storage
- 4 x SATA3 6.0 Gb/s Connectors** If M2_2 is occupied by a SATA-type M.2 device, SATA3_0 will be disabled.
- 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode**
- 1 x Ultra M.2 Socket (M2_2, Key M), supports type 2280 SATA3 6.0 Gb/s & PCIe Gen3 x4 (32 Gb/s) mode**

*Supports Intel® Optane™ Technology (M2_2 only)
Supports Intel® Volume Management Device (VMD)
Supports NVMe SSD as boot disks
Supports ASRock U.2 Kit
Ethernet
- 1x Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Form Factor
- microATX
- 24.4cm x 24.4cm

Garansi Resmi 3 Tahun

Gambar produk
