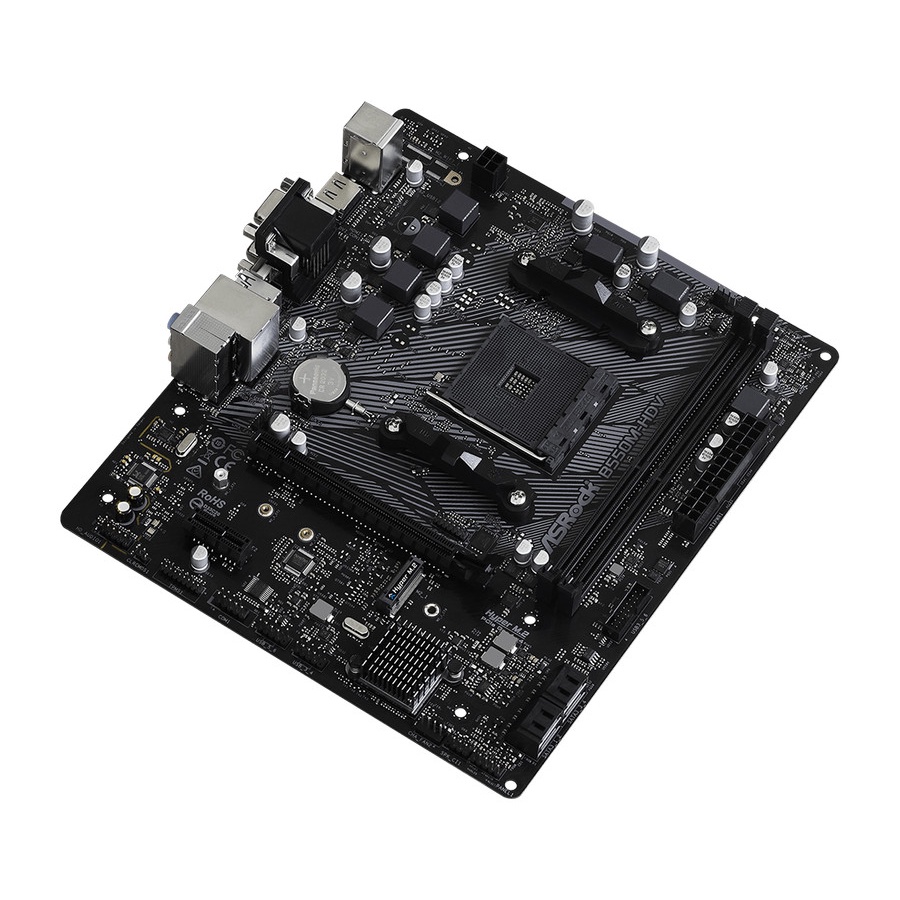

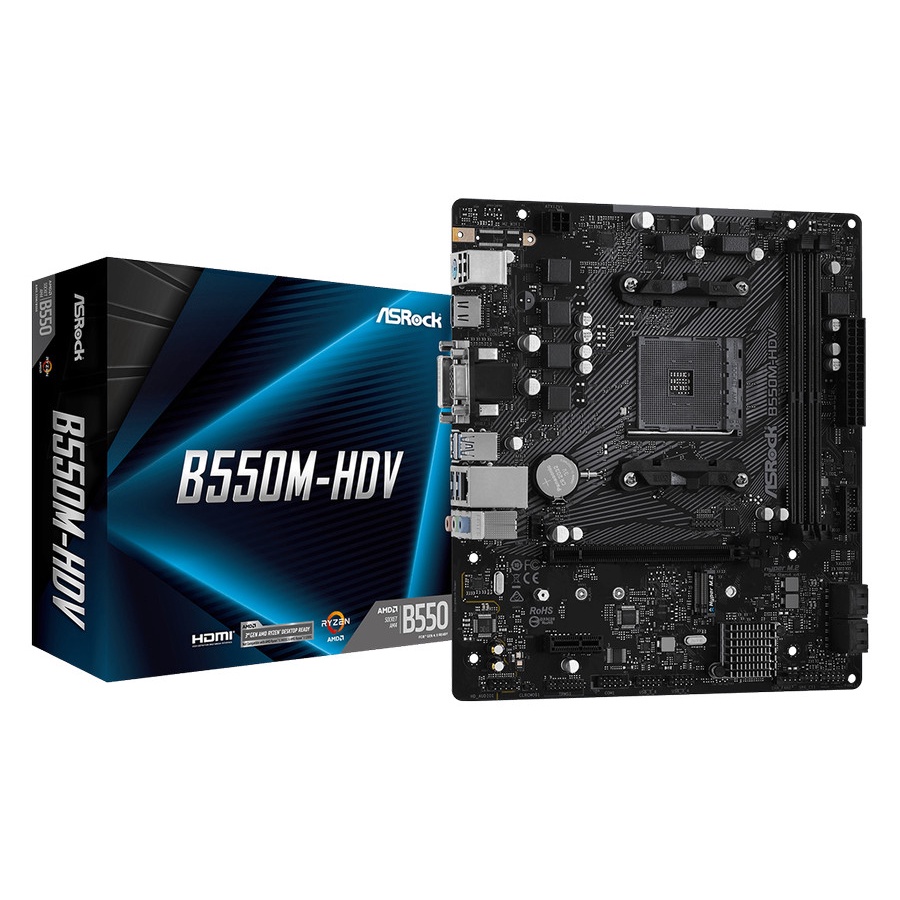

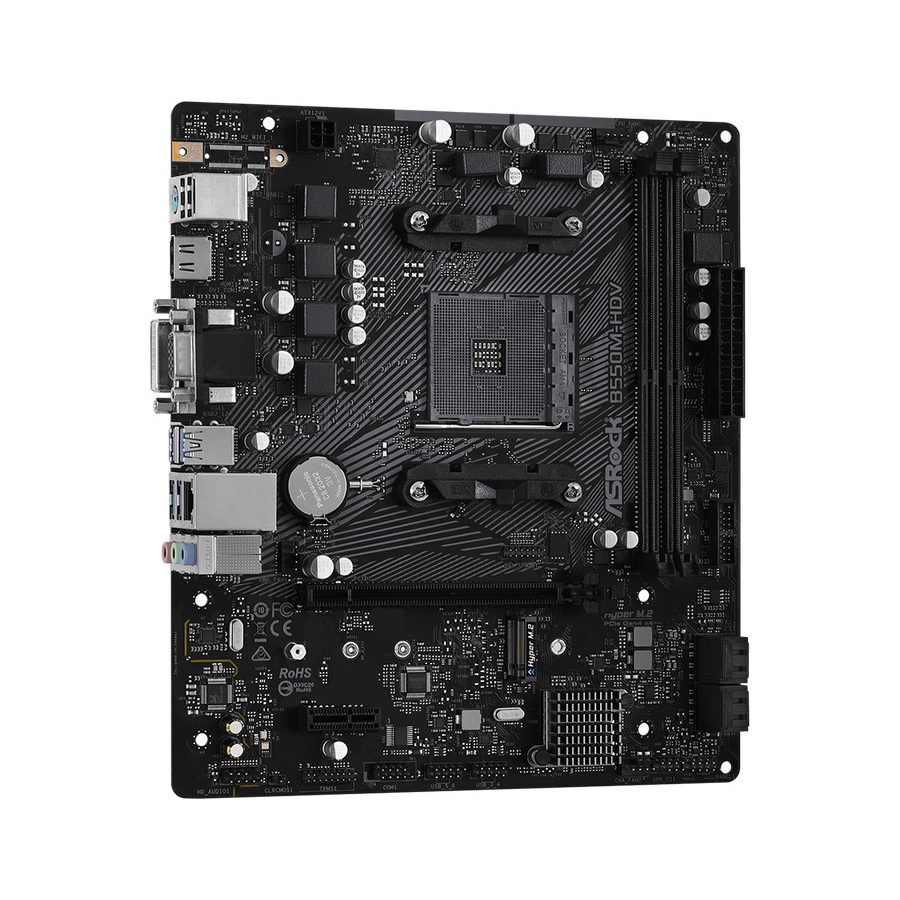

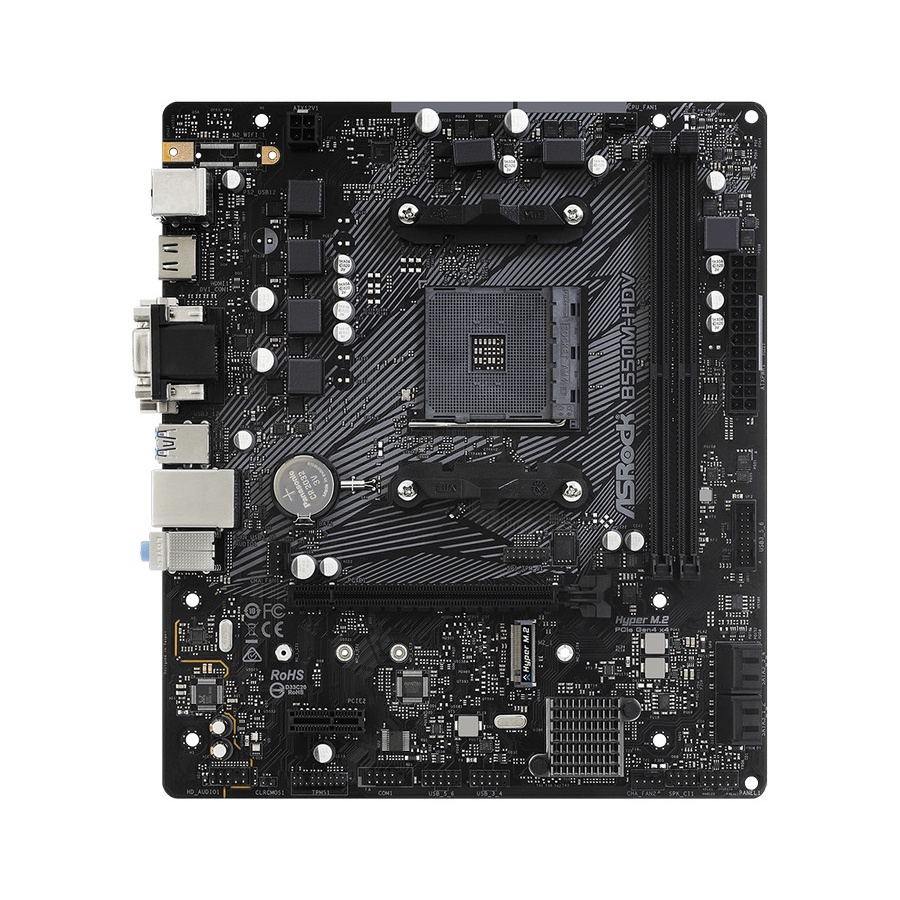

Motherboard ASRock B550M-HDV | AM4 DDR4 AMD B550

Detail Motherboard ASRock B550M-HDV | AM4 DDR4 AMD B550

Fitur :
• Supports AMD AM4 Socket Ryzen™ 3000, 3000 G-Series, 4000 G-Series, 5000 and 5000 G-Series Desktop Processors*
• 6 Power Phase Design
• Supports DDR4 4733+ (OC)
• 1 PCIe 4.0 x16, 1 PCIe 3.0 x1

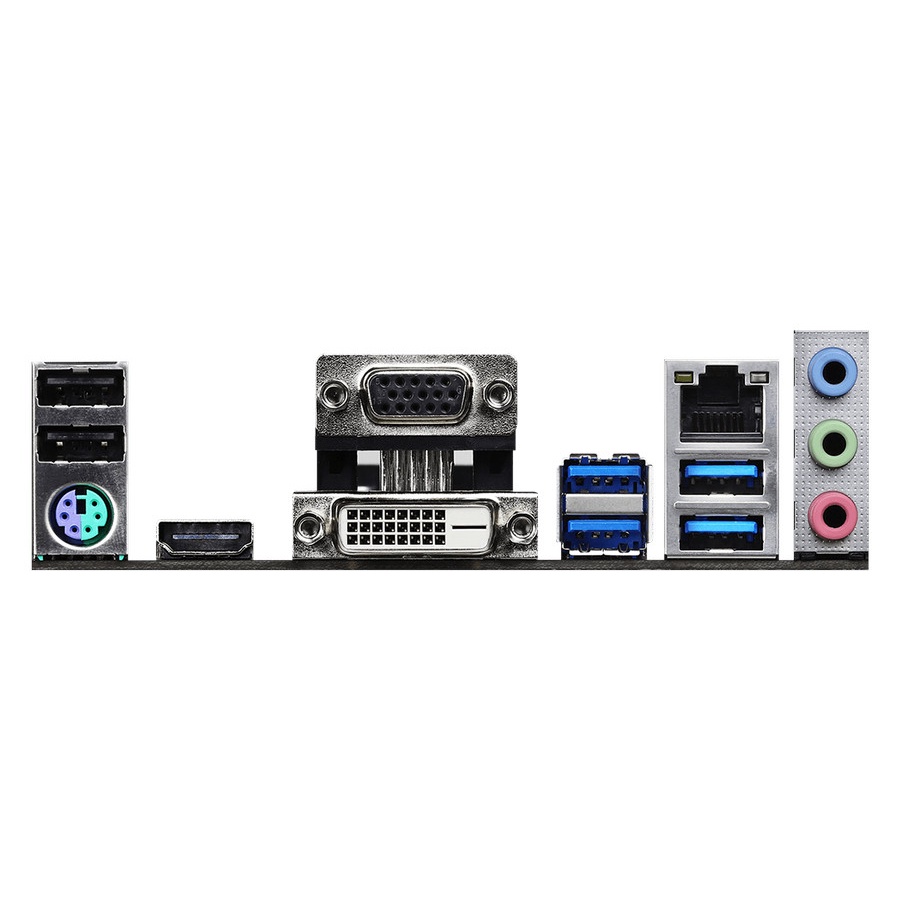

• Graphics Output Options: HDMI, DVI-D, D-Sub
• 7.1 CH HD Audio (Realtek ALC887/897 Audio Codec)
• 4 SATA3, 1 Hyper M.2 (PCIe Gen4 x4 & SATA3)
• 6 USB 3.2 Gen1 (2 Front, 4 Rear)
• Gigabit LAN

Spesifikasi :
Model
Brand ASRock
Model B550M-HDV
Supported CPU
CPU Socket Type AM4
CPU Type Supports AMD Ryzen 5000 / 5000 G-Series / 4000 G-Series / 3000 G-Series / 3000 Series Processors*

* BIOS update might require for AMD Zen 3 Ryzen 5000 series CPU. Refer to ASRock website for CPU support list.
Chipsets
Chipset AMD B550
Memory
Number of Memory Slots 2x288pin (DDR4)
Memory Standard DDR4 Up to 4733+(OC)
Maximum Memory Supported 64GB
Channel Supported Dual Channel
ECC Supported Yes
Buffer Supported Un-buffered
Expansion Slots
PCI Express 4.0 x16 1 x PCI Express 4.0 x16
PCI Express x1 1 x PCI Express 3.0 x1
Storage Devices
SATA 6Gb/s 4 x SATA 6Gb/s
M.2 1 x Hyper M.2 Socket, supports M Key type 2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen4x4 (64 Gb/s)
SATA RAID 0/1/10
Onboard Video
Onboard Video Chipset Supported only by CPU with integrated graphic
Onboard Audio
Audio Chipset Realtek ALC887
Audio Channels 7.1 Channels
Onboard LAN
LAN Chipset Realtek RTL8111H
Max LAN Speed 10/100/1000Mbps

Garansi Resmi 3 Tahun by PT. eMD

* Pembelian dapat dilengkapi Faktur Pajak.
* Membeli berarti setuju dengan Catatan Toko.
* Seluruh produk kami 100% Orginal dan Bergaransi Resmi.
