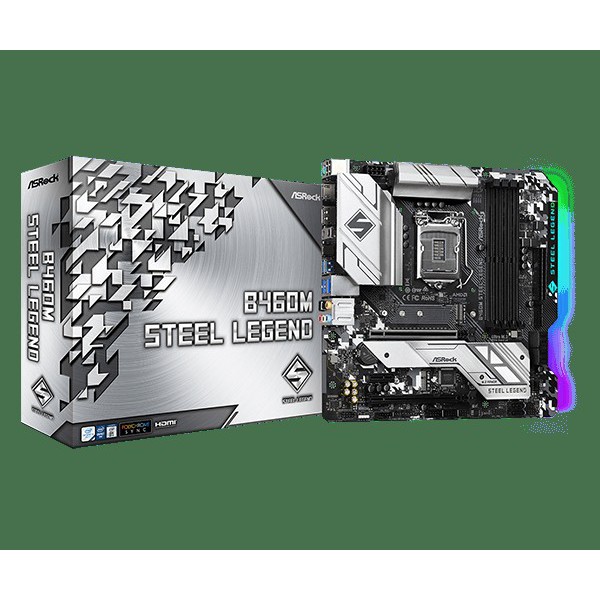

Motherboard ASROCK B460M STEEL LEGEND

Detail Motherboard ASROCK B460M STEEL LEGEND

Supports 10th Gen Intel® Core™ Processors (Socket 1200)
9 Phase Dr.MOS Power Design
Supports DDR4 2933MHz
2 PCIe 3.0 x16, 1 PCIe 3.0 x1, 1 M.2 (Key E) For WiFi
AMD CrossFireX™
Graphics Output Options: HDMI, DisplayPort
7.1 CH HD Audio (Realtek ALC1200 Audio Codec), Nahimic Audio
6 SATA3, 1 Ultra M.2 (PCIe Gen3 x4 & SATA3), 1 Ultra M.2 (PCIe Gen3 x4)
7 USB 3.2 Gen1 (2 Front, 4 Rear, 1 Rear Type-C)
Dragon 2.5 Gigabit LAN
ASRock Polychrome SYNC

CPU
- Supports 10th Gen Intel® Core™ Processors (Socket 1200)
- Digi Power design
- 9 Power Phase design
- Supports Intel® Turbo Boost Max 3.0 Technology
Chipset
- Intel® B460
Memory
- Dual Channel DDR4 Memory Technology
- 4 x DDR4 DIMM Slots
- Supports DDR4 2933 / 2800 / 2666 / 2400 / 2133 non-ECC, un-buffered memory*
- Supports ECC UDIMM memory modules (operate in non-ECC mode)
- Max. capacity of system memory: 128GB**
- Supports Intel® Extreme Memory Profile (XMP) 2.0
- 15μ Gold Contact in DIMM Slots
BIOS
- 128Mb AMI UEFI Legal BIOS with multilingual GUI support
- ACPI 6.0 Compliant wake up events
- SMBIOS 2.7 Support
Graphics
- Dual graphics output: support HDMI and DisplayPort 1.4 ports by independent display controllers
- Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096x2160) @ 30Hz
- Supports DisplayPort 1.4 with max. resolution up to 4K x 2K (4096x2304) @ 60Hz
LAN
- 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
- Dragon RTL8125BG
- Supports Dragon 2.5G LAN Software
Storage
- 6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel® Rapid Storage Technology 17), NCQ, AHCI and Hot Plug*
- 1 x Ultra M.2 Socket (M2_1), supports M Key type 2242/2260/2280 M.2 PCI Express module up to Gen3 x4 (32 Gb/s)**
- 1 x Ultra M.2 Socket (M2_2), supports M Key type 2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)**

Form Factor
- Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm
OS
- Microsoft® Windows® 10 64-bit
