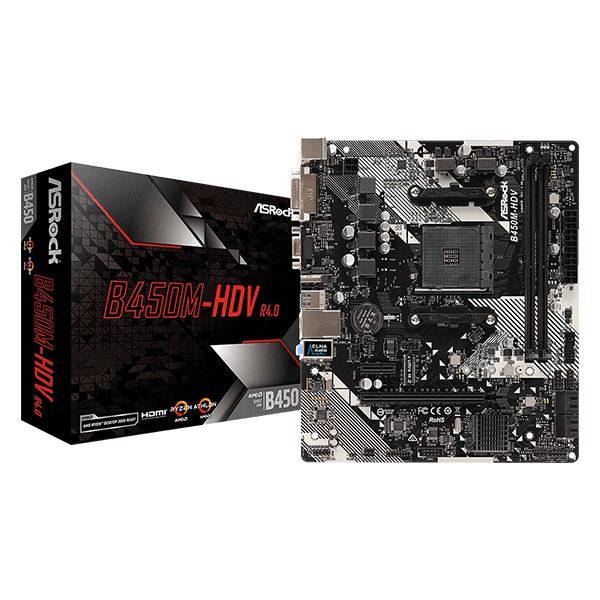

MOTHERBOARD ASROCK B450M HDV R4.0

Detail MOTHERBOARD ASROCK B450M HDV R4.0

Asrock B450M HDV R4.0

AMD AM4 Socket
2 DIMMs, Supports DDR4 3200 (OC)*
1 PCIe 3.0 x16, 1 PCIe 2.0 x1
Graphics Output : HDMI, DVI-D, D-Sub
7.1 CH HD Audio (Realtek ALC887 Audio Codec), ELNA Audio Caps
4 SATA3, 1 Ultra M.2 (PCIe Gen3 x4 & SATA3)*
6 USB 3.1 Gen1 (2 Front, 4 Rear)
Realtek Gigabit LAN
*Actual support may vary by CPU.


AMD Promontory B450
2 x DDR4 DIMM Slots
- Supports Triple Monitor
- Supports HDMI with max. resolution up to 4K x 2K (4096x2160) @ 24Hz / (3840x2160) @ 30Hz
- Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz
- Supports D-Sub with max. resolution up to 2048x1536 @ 60Hz
- 7.1 CH HD Audio (Realtek ALC887 Audio Codec)
- 1 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode)*
- 1 x PCI Express 3.0 x16 Slot (PCIE2: x8 mode)*
- 1 x PCI Express 3.0 x16 Slot (PCIE2: x4 mode)*
- 1 x PCI Express 2.0 x1 Slot
- 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug
- 1 x Ultra M.2 Socket, supports M Key type 2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s) (with Summit Ridge, Raven Ridge and Pinnacle Ridge) or Gen3 x2 (16 Gb/s) (with Athlon 2xxGE series APU)*
