Motherboard AMD BIOSTAR B650M SILVER Socket AM5 DDR5 M-ATX

Detail Motherboard AMD BIOSTAR B650M SILVER Socket AM5 DDR5 M-ATX

Motherboard AMD BIOSTAR B650M SILVER Socket AM5 DDR5 M-ATX
GARANSI 3TAHUN
Chipset AMD B650
CPU SUPPORT Socket AM5 support AMD Ryzen™ 7000 series Processors
Support for future AMD Ryzen processors with BIOS update
MEMORY AMD Ryzen 7000 series Processors:
Supports Dual Channel DDR5 4800/ 5200/ 5400(OC)/ 5600(OC)/ 6000+(OC)
4 x DDR5 DIMM Memory Slot, Max. Supports up to 128 GB Memory
Each DIMM supports non-ECC 8/ 16/ 32 GB DDR5 module

INTEGRATED VIDEO Supports DX12
Supports HDCP
STORAGE 4 x SATA III Connector (6Gb/s)
Total support 2 x M.2 Socket and 4 x SATA (6Gb/s) ports
1 x M.2 (Key M) Socket (M2M_CPU_1) :
Supports M.2 Type 2242/ 2260/ 2280 SSD module
Supports PCI-E 4.0 x4 (64Gb/s) - NVMe/ AHCI SSD
1 x M.2 (Key M) Socket (M2M_CPU_2) :
Support M.2 Type 2280 SSD module
Support PCI-E 4.0 x 4 (64Gb/s) - NVMe / AHCI SSD
LAN Realtek RTL8125B
10/ 100/ 1000/ 2500 Mb/s auto negotiation, Half / Full duplex capability
AUDIO CODEC Realtek ALC1220
7.1 Channels, High Definition Audio, Hi-Fi
USB 1 x USB 3.2 Gen2x2 Type-C port (1 on rear I/Os)
3 x USB 3.2 Gen2 port (1 on rear I/Os and 2 via internal headers)
2 x USB 3.2 Gen1 port (2 on rear I/Os)
6 x USB 2.0 port (2 on rear I/Os and 4 via internal headers)

EXPANSION SLOT 1 x PCIe 4.0 x 16 Slot (x16 or x8 mode)
1 x PCIe 4.0 x 16 Slot (x4 mode)
1 x PCIe 3.0 x 1 Slot (x1 mode)

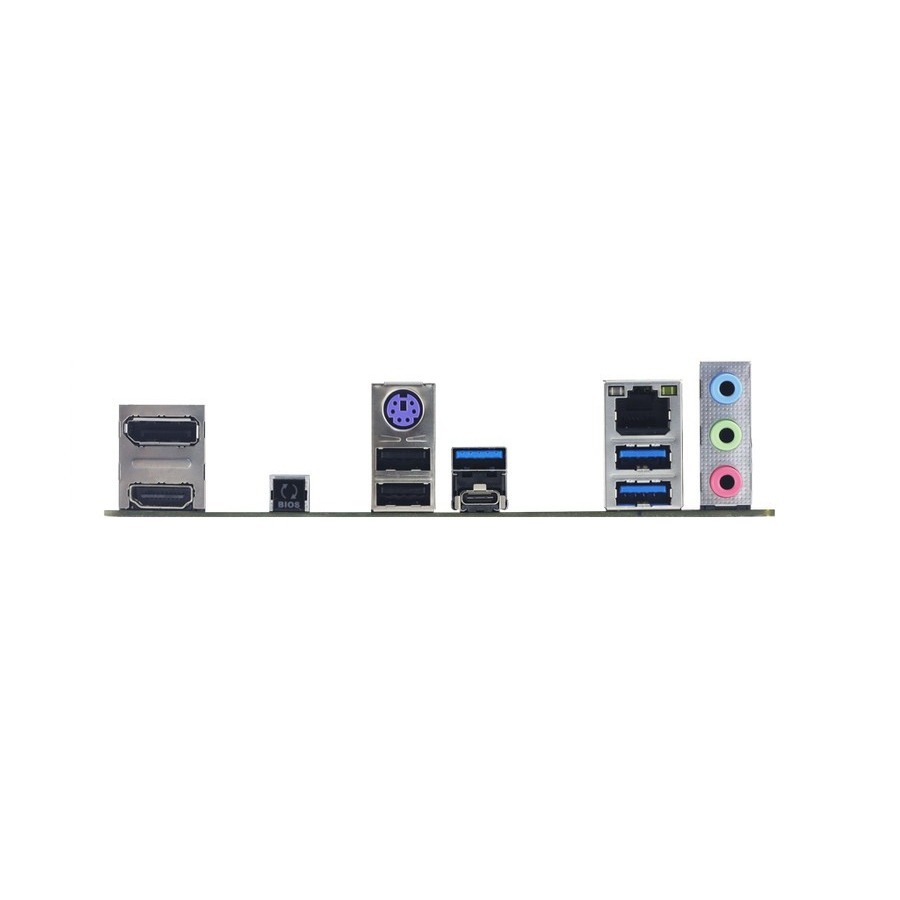

REAR I/O 2 x WiFi Antenna Ports
1 x PS/2 Keyboard/ Mouse Port
1 x BIOS update Button
1 x HDMI Port (HDMI1.4)
1 x DP Port (DP1.2)
1 x USB 3.2 (Gen2x2) Type-C Port
1 x USB 3.2 (Gen2) Type-A Port
2 x USB 3.2 (Gen1) Type-A Ports
2 x USB 2.0 Type-A Ports
1 x 2.5G LAN port
3 x Audio Jack
