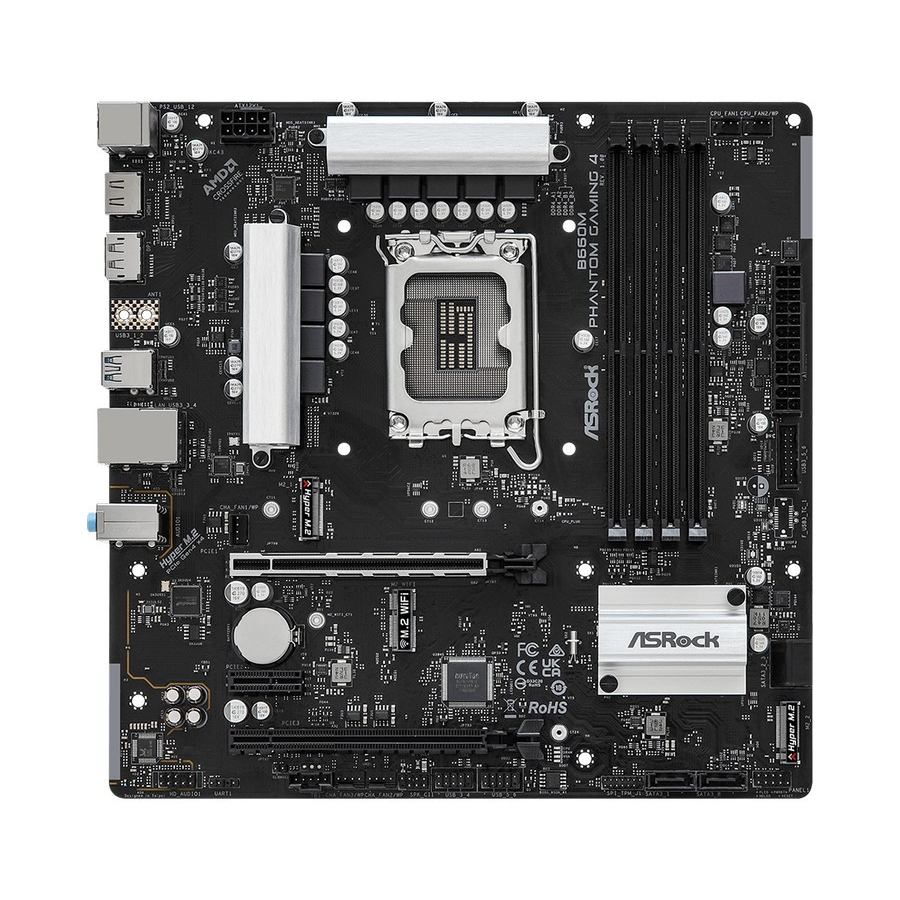

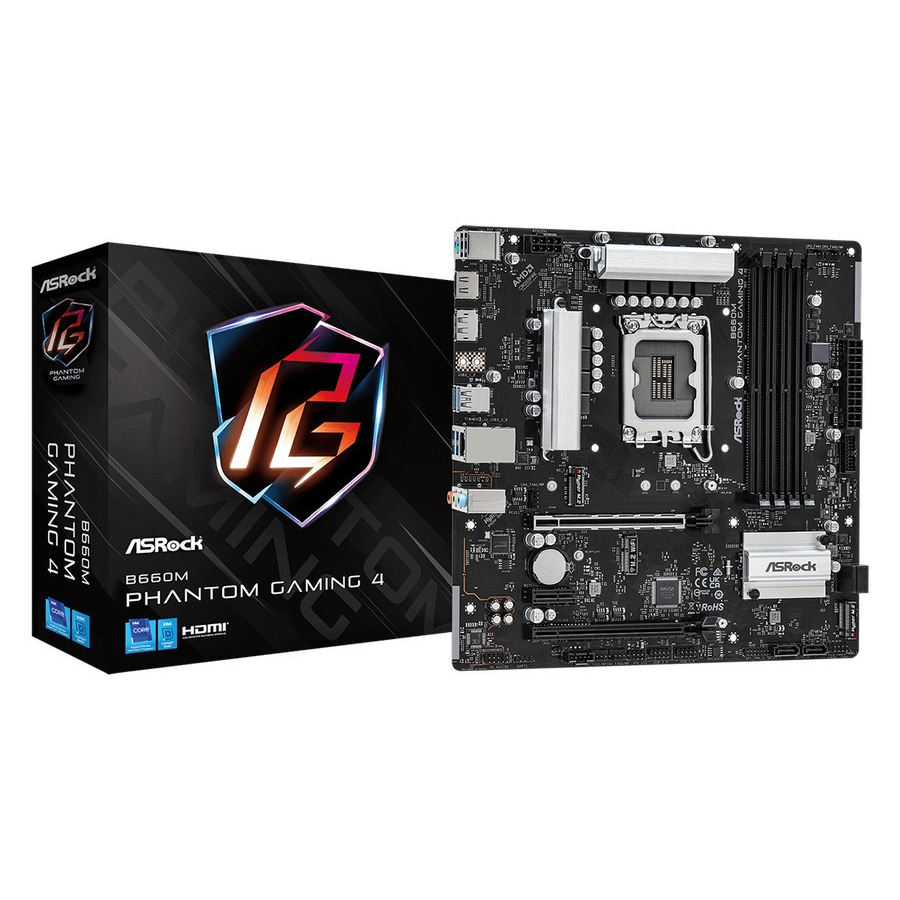

Mainboard ASRock B660M Phantom Gaming 4 - mATX LGA1700 Intel Gen12 dan gen 13

Detail Mainboard ASRock B660M Phantom Gaming 4 - mATX LGA1700 Intel Gen12 dan gen 13

Garansi Resmi 3 Tahun

Unique Feature
ASRock Super Alloy
- Premium Power Choke
- Sapphire Black PCB
- High Density Glass Fabric PCB
ASRock Intel® 4-Layer Memory POOL (Planes on Outer Layers) Technology
ASRock Steel Slot
ASRock Hyper M.2 (PCIe Gen4x4)
ASRock POST Status Checker (PSC)
ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
ASRock Live Update & APP Shop
CPU
- Supports 12th Gen Intel® Core™ Processors (LGA1700)
- Digi Power design
- 8 Power Phase design
- Supports Intel® Hybrid Technology
- Supports Intel® Turbo Boost Max 3.0 Technology
Chipset
- Intel® B660
Memory
- Dual Channel DDR4 Memory Technology
- 4 x DDR4 DIMM Slots
- Supports DDR4 non-ECC, un-buffered memory up to 5333+(OC)*
- Supports ECC UDIMM memory modules (operate in non-ECC mode)
- Max. capacity of system memory: 128GB
- Supports Intel® Extreme Memory Profile (XMP) 2.0

*Supports DDR4 3200 natively.
BIOS
- 128Mb AMI UEFI Legal BIOS with multilingual GUI support
- ACPI 6.0 Compliant wake up events
- SMBIOS 2.7 Support
- CPU Core/Cache, CPU GT, DRAM, VDD_IMC, VCCIN AUX, +1.05V PROC, +0.82V PCH, +1.05V PCH Voltage Multi-adjustment
Graphics
- Intel® Xe Graphics Architecture (Gen 12)
- Dual graphics output: support HDMI and DisplayPort 1.4 ports by independent display controllers
- Supports HDMI 2.1 TMDS Compatible with max. resolution up to 4K x 2K (4096x2160) @ 60Hz
- Supports DisplayPort 1.4 with DSC (compressed) max. resolution up to 8K (7680x4320) @ 60Hz / 5K (5120x3200) @ 120Hz
- Supports HDCP 2.3 with HDMI 2.1 TMDS Compatible and DisplayPort 1.4 Ports

*Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.
Audio
- 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
- Supports Surge Protection
- Nahimic Audio
LAN
- Gigabit LAN 10/100/1000 Mb/s
- Giga PHY Intel® I2
