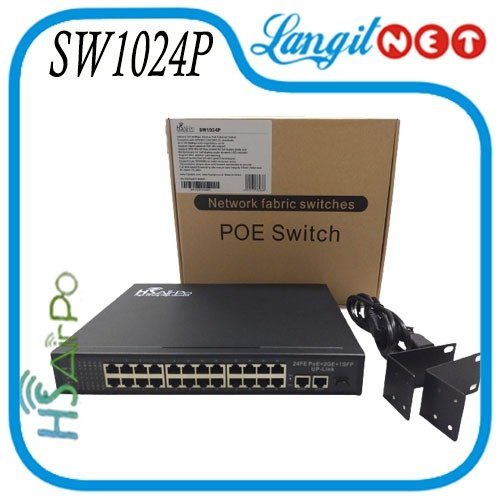

HSAIRPO SW1024P 24FE POE 2GE UPLINK 1GSFP 24V POE SWITCH METAL

Detail HSAIRPO SW1024P 24FE POE 2GE UPLINK 1GSFP 24V POE SWITCH METAL

VIDEO PRODUK : youtube.com/watch?v=LC56YtbPr0I

SW1024P

24Ports 10/100Mbps Passive PoE Ethernet Switch

Complies with IEEE802.3,IEEE802.3U standards

24 X 10/100Mbps auto-negotiation ports

Support 24port passive PoE 24V outport Support IEEE 802.3X flow control for full duplex mode and

Backpressure for half-duplex mode, dynamic LED indicator

Support MAC address auto-learning

Support barrier-free full wire speed transmission

Support Auto MDI/MDIX, no need crossover wires

Transmission adopts store and forward mechanism to provide

Full wire-speed forwarding rate ensure data integrity 19inch metal case

AC input 110-240V


product name :
24+2 port 100M non-standard 24V POE switch

Product Model :
WOR-24FE+2GE +1S- 24V

Pin Assignment :
4/5(+), 7/8(-)

Voltage spec. :
DC12-55V

Backplane bandwidth :
2.0 Gbps

Transmission Method :
Store and forward

Transmission Distance :
0-250m

Standard power supply :
DC 24V 5A 200W

Protocol :
IEEE 802.3AT IEEE802.3AF

Network medium :
Use Cat 5 or Super Cat 5 unshielded twisted pair

Temperature :
Working: -20°~65°C Storage: -40°~70°C

Humidity (Non-condensing)
Working: 10~90% Storage: 5~95%

Certifications :
CE, FCC, RoHS

Product Dimension :
(L*W*H/mm)
310mm×182mm×44.8mm

Gambar produk
