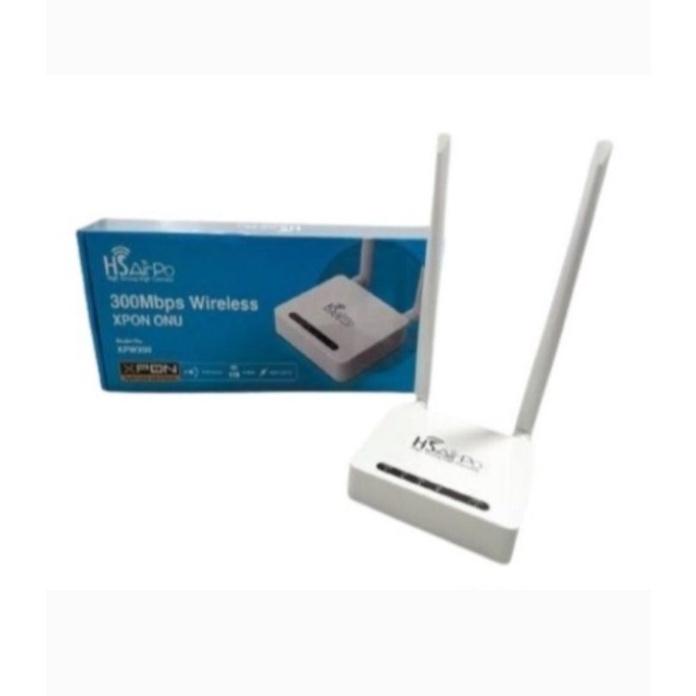

HSAirPo XPW300 300Mbps Router Fiber Optik Wireless 1 Port Gigabit XPON ONU HS AirPo XPW300 N1

Detail HSAirPo XPW300 300Mbps Router Fiber Optik Wireless 1 Port Gigabit XPON ONU HS AirPo XPW300 N1

Xpon - Epon bisa Gpon bisa, tanpa ribet ganti2 ONU
Support Epon = Huawei,ZTE, Hioso, BT-pon, Hsairpo
Support Gpon = Huawei, Zte, Bt-pon, Hsairpo

Specifications
Technical Item Details
PON interface :
- 1 G/EPON port(EPON PX20+ and GPON Class B+)
- Upstream: 1310nm; Downstream: 1490nm
- SC/APC connector
-Split Ratio: 1:64
- Receiving sensitivity: ≤-27dBm
- Transmitting optical power: 0~+4dBm
- Transmission distance: 20KM
LAN interface :
- 1x10/100/1000Mbps and 1x10/100Mbps auto adaptive Ethernet interfaces. Full/Half, RJ45 connector
WIFI Interface :
- Compliant with IEEE802.11b/g/n
CATV Interface :
- RF, optical power : +2~-18dBm
- Optical reflection loss: ≥45dB
- Optical receiving wavelength: 1550±10nm
- RF frequency range: 47~1000MHz,
- RF output impedance: 75Ω RF output level: ≥ 82dBuV(-7dBm optical input)
- AGC range: +2~-7dBm/-4~-13dBm/-5~-14dBm
- MER: ≥32dB(-14dBm optical input), >35(-10dBm)
LED :
- 9 LED, For Status of WIFI?WPS?PWR?LOS?PON?LAN1~LAN2? WORN? NORMAL(CATV)
Push-Button :
- 4, for Function of Power on/off, Reset, WPS, WIFI
Operating condition :
- Temperature : 0?~+50?

Panel lights and Introduction
Panel lights andIntroduction
Pilot Lamp Status
WIFI : On, Blink, Off
WPS : Blink Off
PWR : On Off
LOS : Blink Off
PON : On Blink Off
LAN1~LAN2 : On Blink Off
WORN : On
(CATV) : Off
Normal : On
(CATV) : Off

Pilot Lamp Status Description
WIFI On The WIFI interface is up.
Blink The WIFI interface is sending or/and receiving data (ACT).
Off The WIFI interface is down.
WPS
Blink The WIFI interface is securely establishing a connection.
Off The WIFI interface does not establish a secure connection.
PWR
On The device is powered up.
Off The device is powered down.
LOS
Blink The device doses not receive optical signals or with low signals.
Off The device has received optical signal.
PON
On The device has registered to the PON system.
Blink The device is registering the PON system.
