HSAIRPO EPT1004G L3 EPON OLT 4PON 10GE TANPA SFP

Detail HSAIRPO EPT1004G L3 EPON OLT 4PON 10GE TANPA SFP

SERTIFIKAT POSTEL
NOMOR : 79018/SDPPI/2021

MODEL : EPT1004G
MAIN CHIPSET : cs8022
FLASH SIZE : 32M
SADRM SIZE : 256M

INCLUDEKUPINGAN RACKMOUNT
HSAirpo
EPON OLT HS-EPT1004G
Specifications
PON standard : EPON IEEE802.3ah
PON interface :
- 4*EPON SFP Ports (PX20+), Receiving sensitivity: -
- 30dBm(Saturation Optical -6dBm). Power,
- Transmitting optical power: +2~+7dBm
- Transmission distance: 20KM. Max splitting ratio1:64
Speed :
- Upstream 1.25G
- Downstream 1.25G
Wavelength : Tx1310, Rx 1490
Uplink :
GE :
- 4*copper ethernet ports 10/100/1000M auto-negotiation
SFP :
- 2*10GE+2GE/4*GE SFP
Management Ports :
- 1*10/100BASE-T out-band port, 1*CONSOLE port
- Backplane : 128 Gbps
- MAC table : 32
Spanning Tree protocol :
- Support IEEE 802.1d (STP), 802.1w (RSTP) spanning tree protocols
QoS :
- Support 802.1p priority queue scheduling
- Support SPWRR and SP+WRR scheduling algorithms
- Operating condition : Operating temp: -5 ~ +55
- Storing condition Storing temp: -40 ~ +85
- Humidity : 5~90(non-condensing)

FEATURES :
1U19 inchstandard box EPON OLT with 4 PON ports
Compliant with IEEE802.3ah YD/T1475-2006EPON and China Telecom EPON Technical Requirements
QoS based on port, VID, TOS and MACaddress(32K Mac address)
Support priority queue scheduling, support SP, WRR or SP + WRR scheduling algorithm
Support 4096 VLAN, transparent transmission and conversion, support VLAN stacking (QinQ)
Support 32K MACs line speed learning and aging, support MAC address restriction
Support IEEE 802.1d (STP), 802.1w (RSTP) and MSTP Spanning Tree Protocol
Support multicast Groups, IGMP v1/v2 snooping and IGMP Proxy
Support port-based rate limitation and bandwidth control
Support PON line AES and triplechuringencryption
Support Dynamic Bandwidth Allocation (DBA)
Support ONU auto-MAC binding and filtering, support the ONU offline business configuration and automatically configure, manual/auto authentication
Support the use of the ACL rules for packet filtering
Support SNMP, telnet, CLI, OAM and Web management

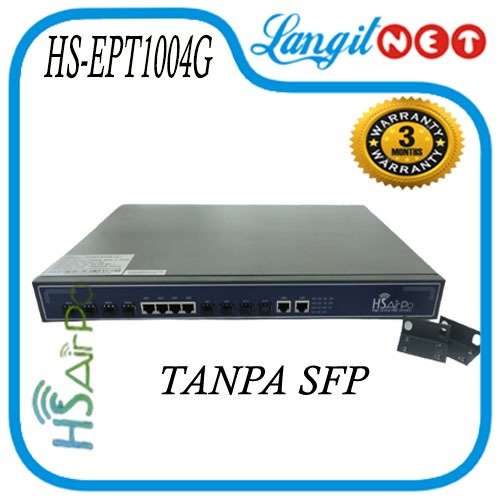

Gambar produk
