HSAirpo EPON OLT HS-EPT1002 2SFP 2PON PX20+++
Merek: Hsairpro | Lihat selengkapnya produk Komputer & Aksesoris dari HsairproDeskripsi singkat
Komputer & Aksesoris > Komponen Network > Modem & Router Wireless > HSAirpo EPON OLT HS-EPT1002 2SFP 2PON PX20+++
Toko:Future Computer & NetworkingLihat semua produk Komputer & Aksesoris oleh Future Computer & Networking
- Pengiriman Ekspres
- Barang yang diperiksa
- Bayar di tempat berlaku
- Kualitas, Prestise
- Pengembalian produk
- Dukung pembuatan faktur
Produk Terkait
Detail HSAirpo EPON OLT HS-EPT1002 2SFP 2PON PX20+++
Parameter SpecificationsOperating
wavelength
1310（RX）/1490（TX）
Optical power +0 ~ +3dBm
Receiving sensitivity -27dBm
Max distance 20km
Max splitter ratio 1:64
Capacity 2 PON, standard: 64 ONUs maximum:128 ONUs
MAC 8K
Uplink port 2 10/100/1000 Ethernet RJ45 ports / 2 Gigabit SFP ports optional
PON port 2 SC fiber ports
Control port RJ45 console port, to debug the device
MTBF 100,000 hours
EPON traits
Support IEEE802.3ah
Support DBA with minimum1Kbps granularity adjustable
Support 1Gbps up link and down link symmetrical bandwidth
Support AES-128 encryption to each Logical Link Identifier
Support powerful OAM function, implement telnet management, maintenance and upgrade
Support auto discovery and auto register of ONU (real-time
operation)
Protocols supported
Support IEEE802.3, IEEE802.3u, IEEE802.3ab
Support IEEE802.1Q VLAN
Support IEEE 802.1P QoS
Management CLI and GUI, SNMP, WEB
Support DHCP Snooping
Support Ipv4 address learning based at DHCP Snooping
Support ARP Snooping, QoS etc

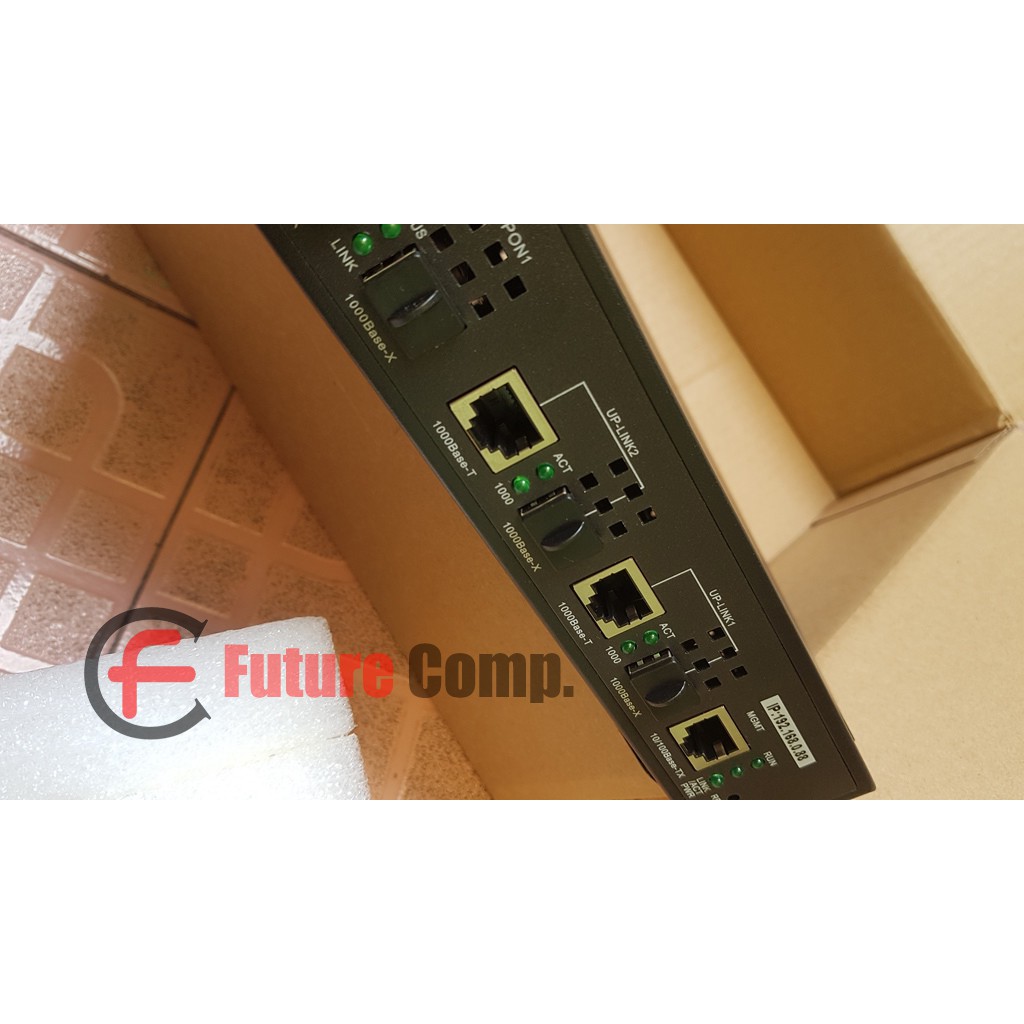

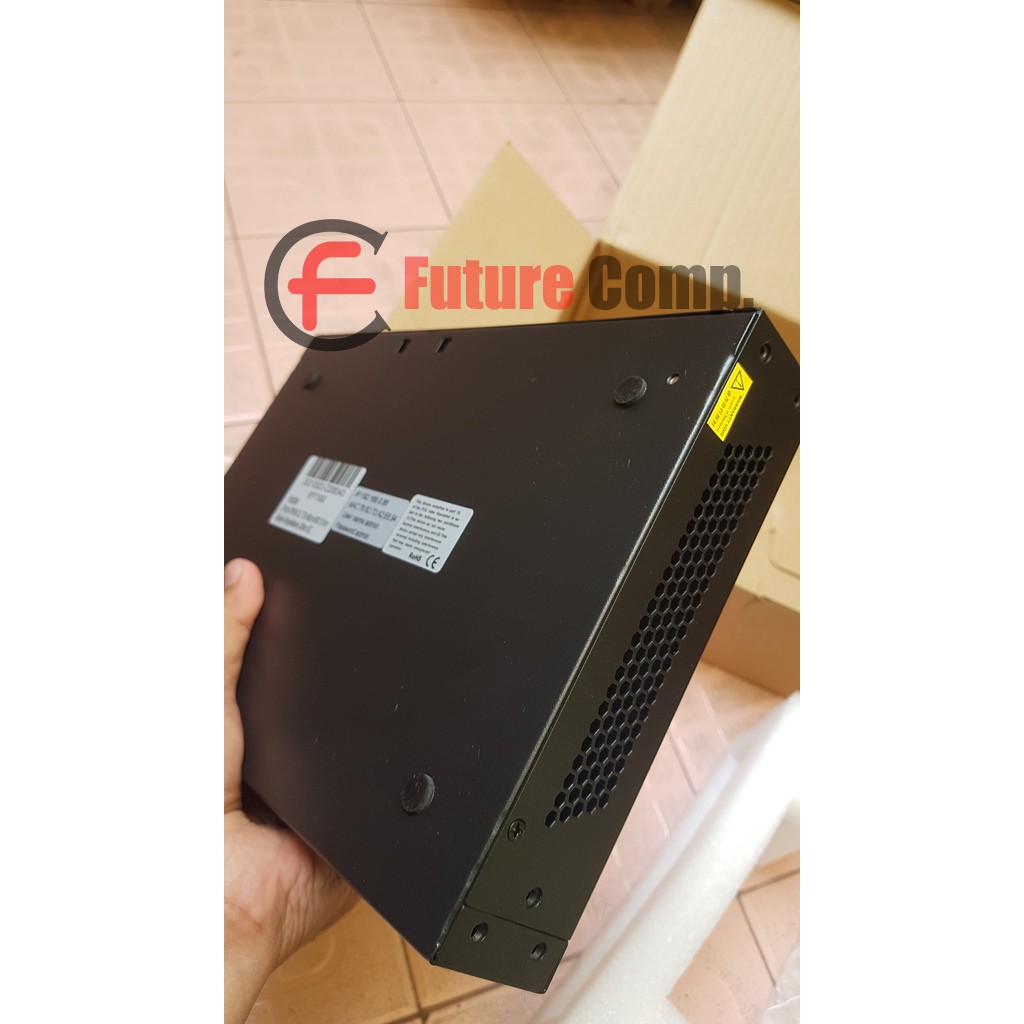

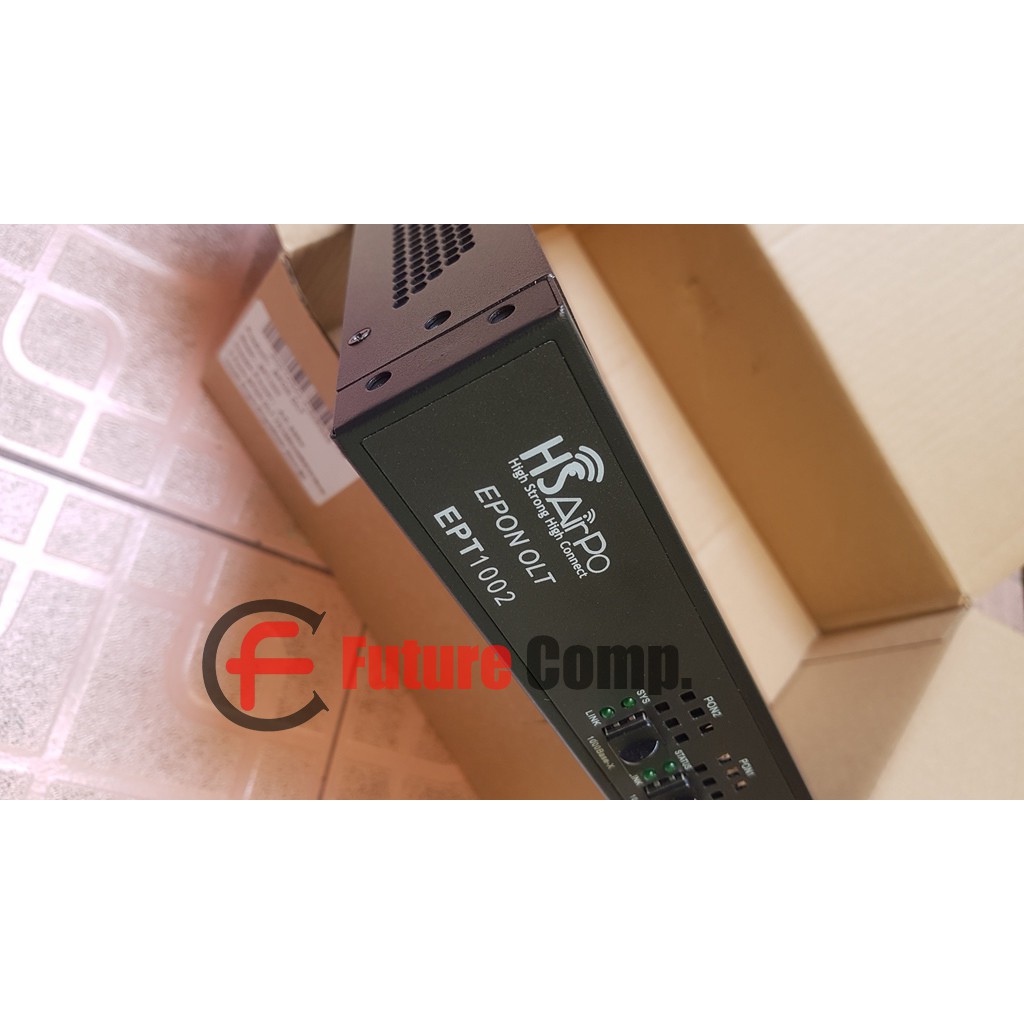

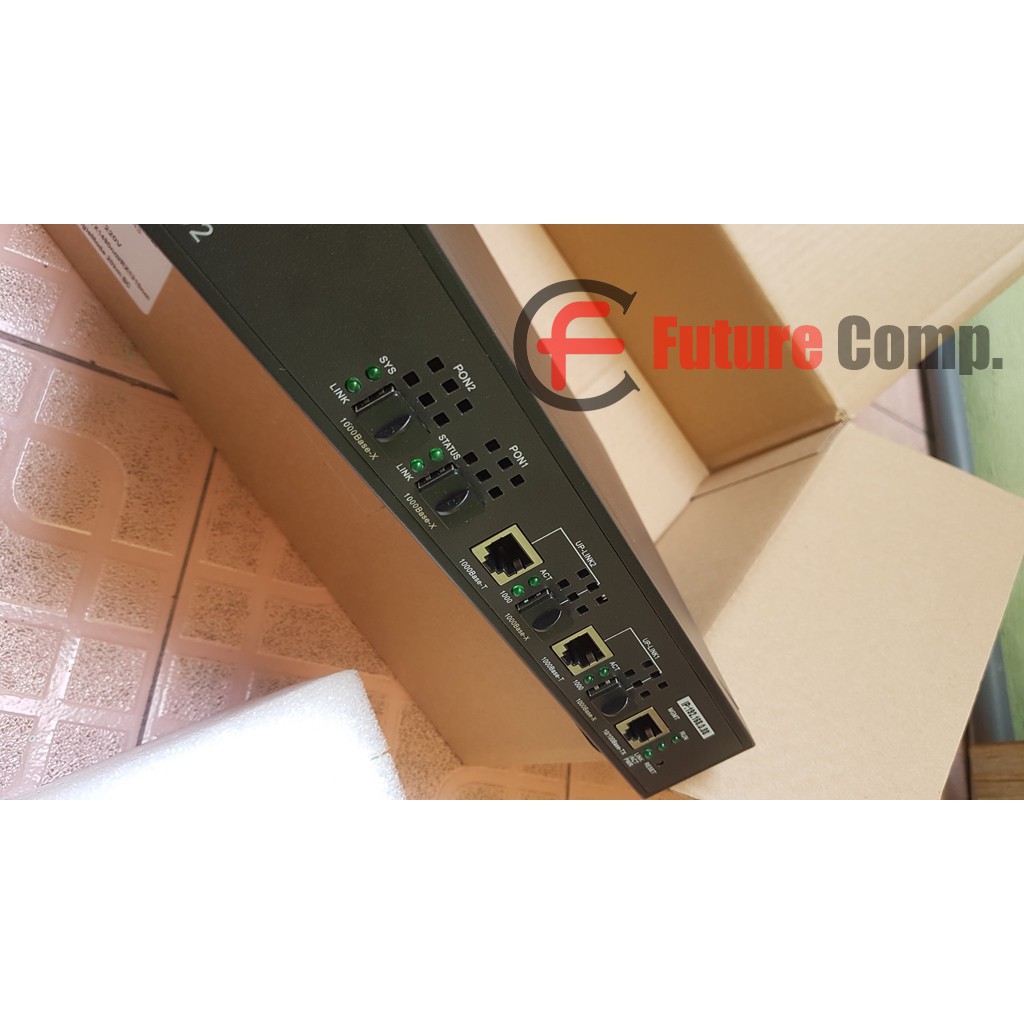

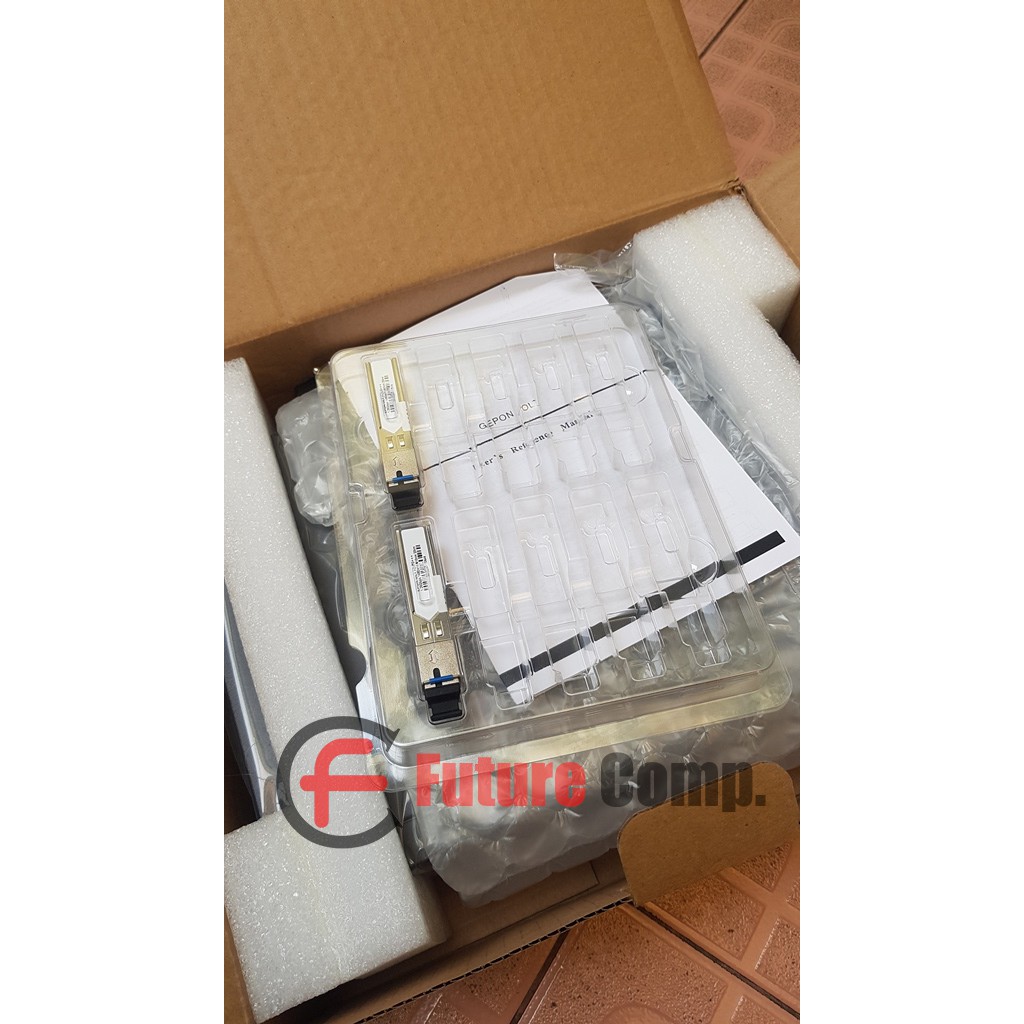

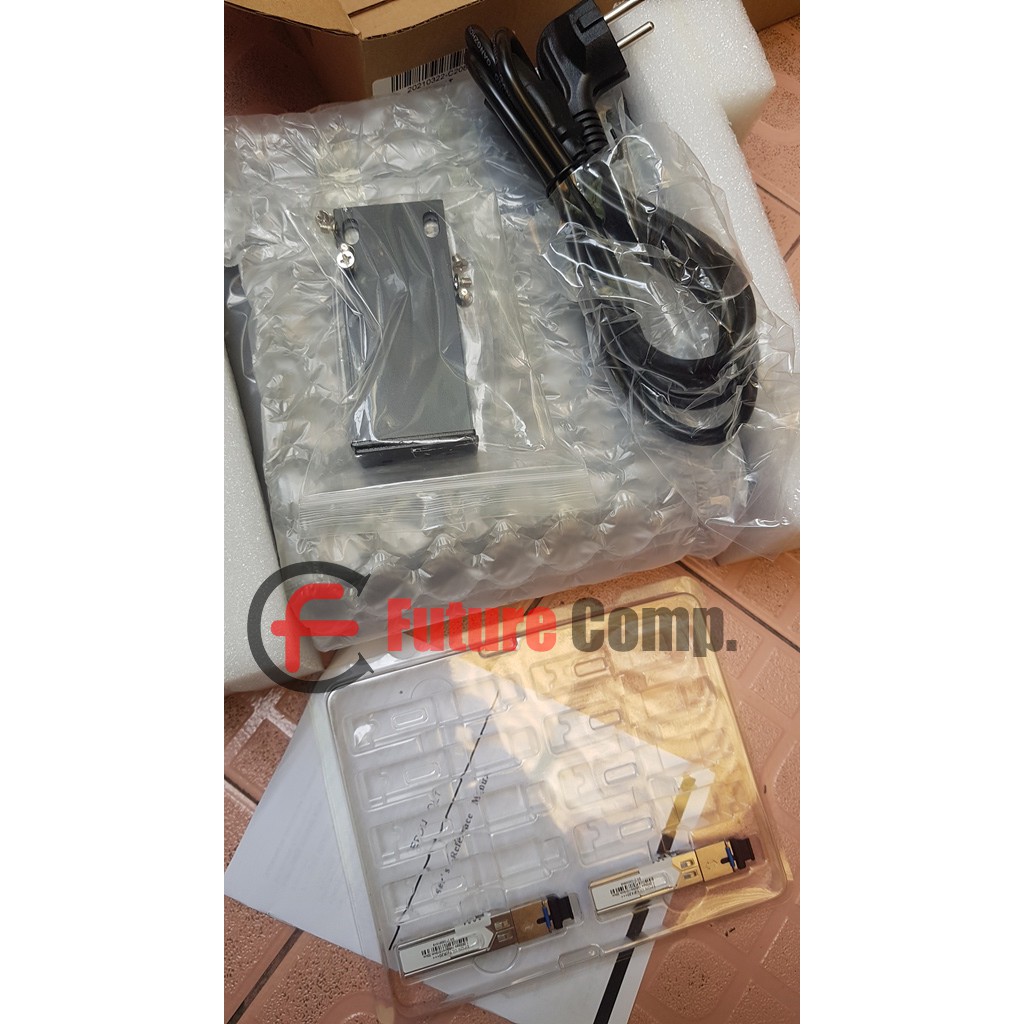

Gambar produk
