BIOSTAR Motherboard RACING Z270GTN Intel Z270 LGA1151 DDR4 MINI-ATX
Merek: Biostar | Lihat selengkapnya produk Komputer & Aksesoris dari BiostarDeskripsi singkat
Komputer & Aksesoris > Komponen Desktop & Laptop > Motherboard > BIOSTAR Motherboard RACING Z270GTN Intel Z270 LGA1151 DDR4 MINI-ATX
- Pengiriman Ekspres
- Barang yang diperiksa
- Bayar di tempat berlaku
- Kualitas, Prestise
- Pengembalian produk
- Dukung pembuatan faktur
Produk Terkait
Detail BIOSTAR Motherboard RACING Z270GTN Intel Z270 LGA1151 DDR4 MINI-ATX
Terima kasih Sudah berkunjung di Kurnia Abadi Semesta.Demi kenyamanan bersama terkait harga, stock, warna, dll, harap konfirmasi terlebih dahulu sebelum order.
Terima kasih
Z270GTN
Socket : 1151
Supports 7th Generation Intel® Core™ Processor
Intel Z270 single chip architecture
Support 2-DIMM DDR4-3200(OC)/ 2400/ 2133/ 1866 up to 32G maximum capacity
BIOSTAR Hi-Fi Technology inside
Support HDMI
Support U.2 32Gb/s
Support M.2 32Gb/s
Chipset
Intel Z270
CPU SUPPORT
7th & 6th Gen Intel® Core™ i7 LGA 1151 Processor
7th & 6th Gen Intel® Core™ i5 LGA 1151 Processor
7th & 6th Gen Intel® Core™ i3 LGA 1151 Processor
7th & 6th Gen Intel® Pentium® LGA 1151 Processor
7th & 6th Gen Intel® Celeron® LGA 1151 Processor
Maximum CPU TDP (Thermal Design Power): 95Watt
MEMORY
Support Dual Channel DDR4 3200(OC)/2400/ 2133/1866 MHz
2 x DDR4 DIMM Memory Slot
Max. Supports up to 32GB Memory
STORAGE
4 x SATA III Connector
Support SATA RAID: 0,1,5,10
1 x U.2 32Gb/s Connector, support PCI-E Storage(Intel® Optane Technology ready)
1 x M.2 (M Key) 32Gb/s Connector, support M.2 type 2260/2280 SATA 6Gb/s & PCI-E Storage(Intel® Optane Technology ready)(on the back of the motherboard)
USB
4 x USB 3.0 Port
1 x USB 3.0 Header
2 x USB 2.0 Port
1 x USB 2.0 Header
EXPANSION SLOT
1 x PCI-E 3.0 x16 Slot
1 x PCI-E M.2 Key E Slot for M.2 type 2230 Wi-Fi card
INTERNAL I/O
1 x USB 3.0 Header
1 x USB 2.0 Header
4 x SATA III Connector (6Gb/s)
1 x U.2 32Gb/s Connector, support PCI-E Storage(Intel® Optane Technology ready)
1 x M.2 Key M 32Gb/s Connector, support M.2 type 2260/ 2280 SATA 6Gb/s & PCI-E Storage(Intel® Optane Technology ready)(on the back of the motherboard)
1 x Front Audio Header
1 x Front Panel Header
1 x CPU Fan Connector
1 x System Fan Connector
2 x 5050 LED Header
H/W MONITORING
CPU / System Temperature Monitoring
CPU / System Fan Monitoring
Smart / Manual CPU / System Fan Control
System Voltage Monitoring
DIMENSION
Mini ITX Form Factor Dimension: 17cm x 17cm

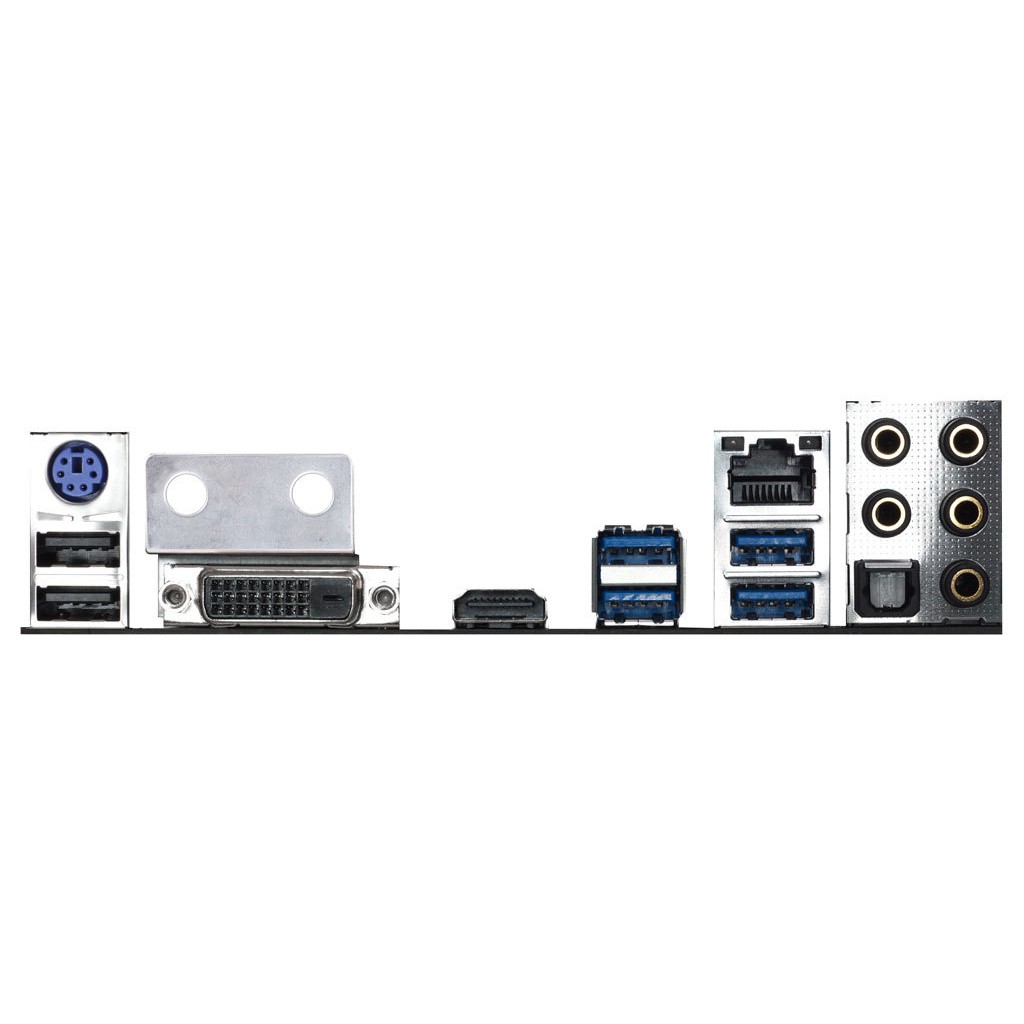

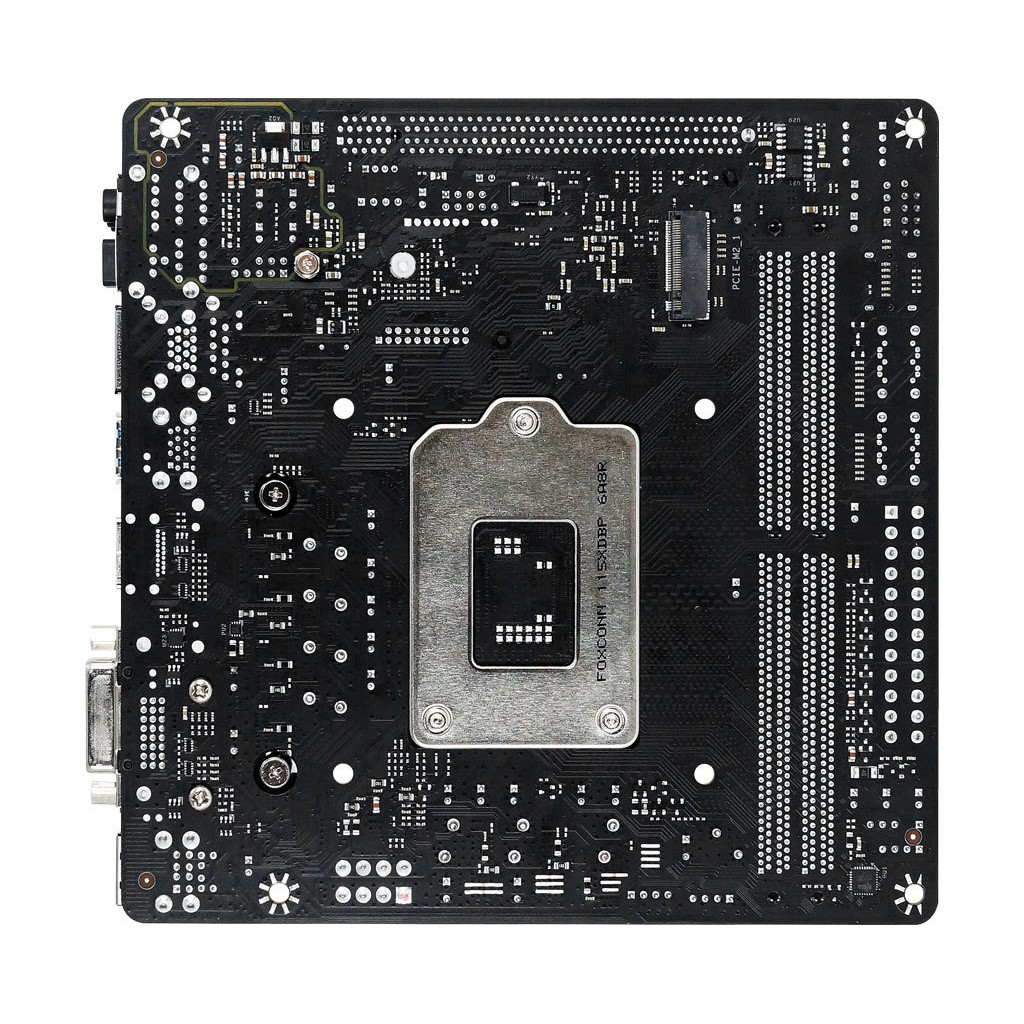

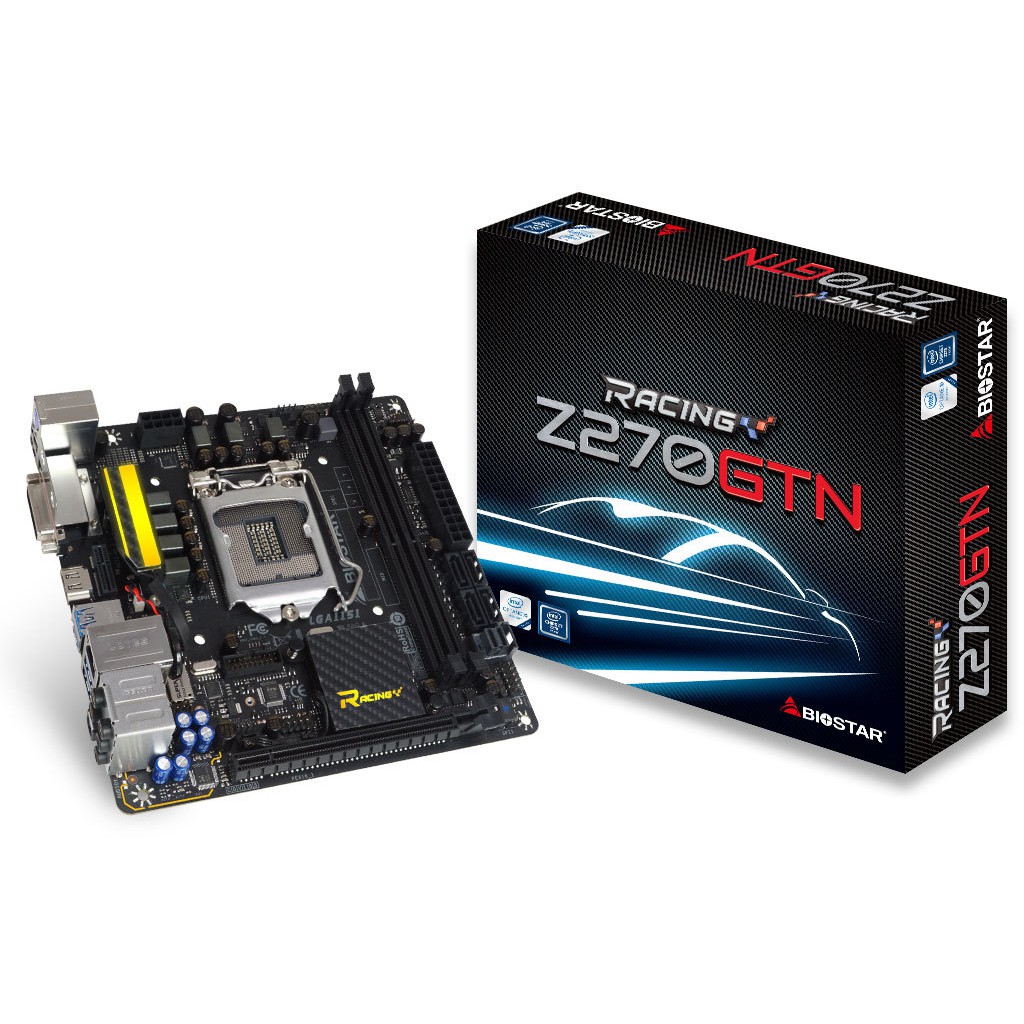

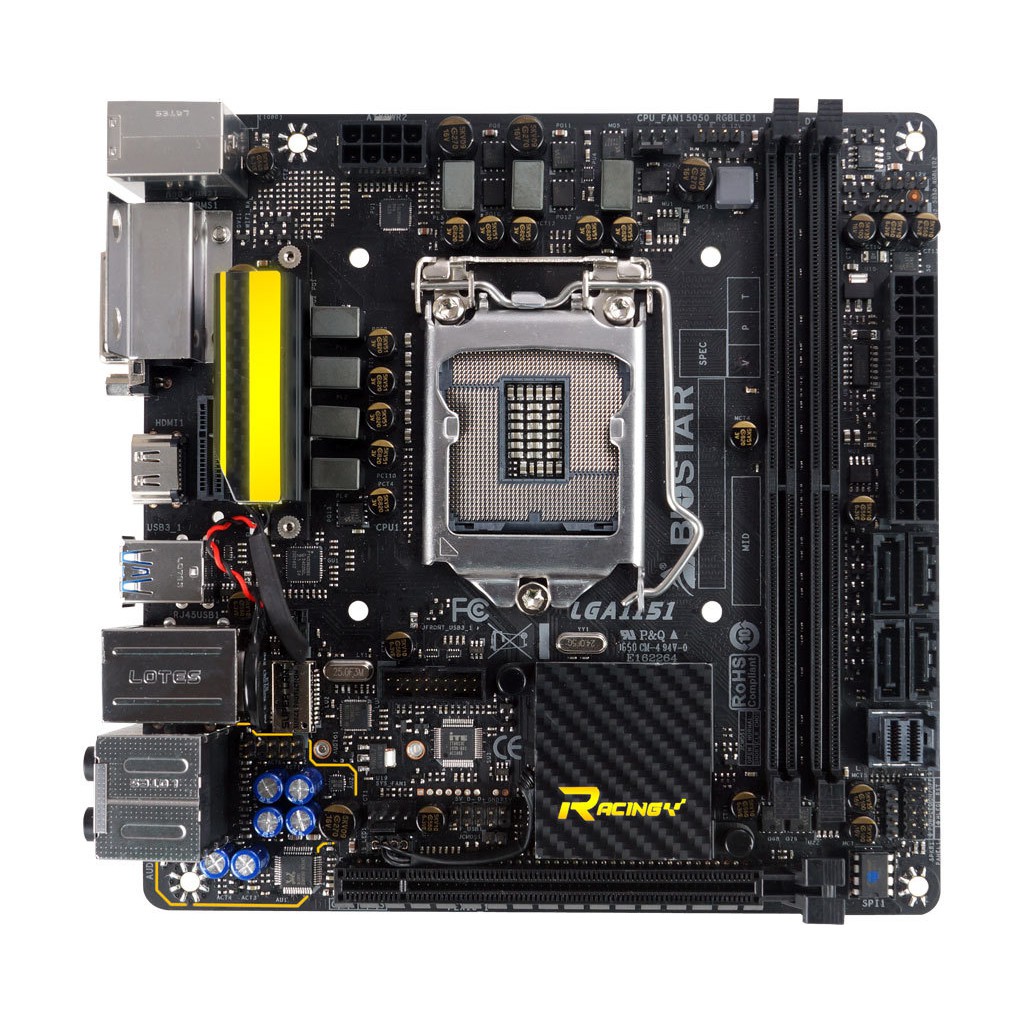

Gambar produk
