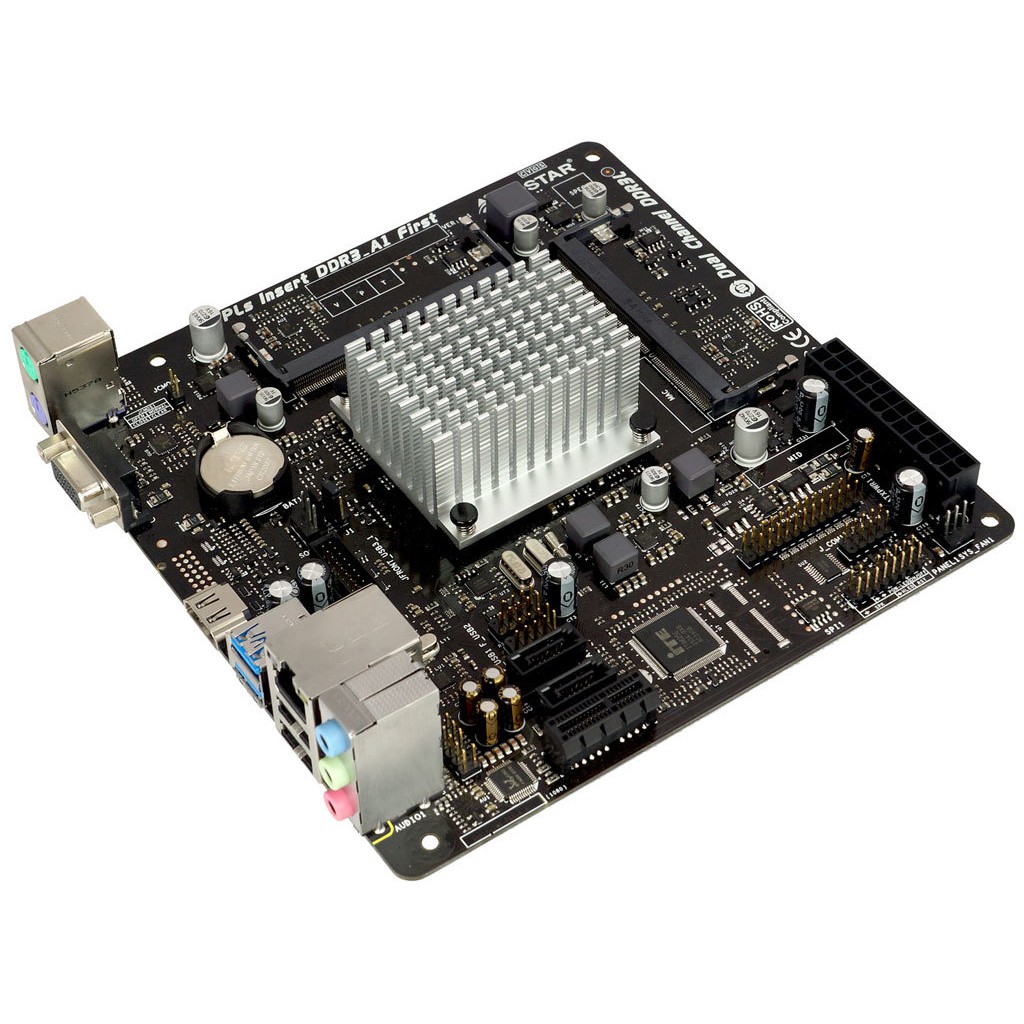

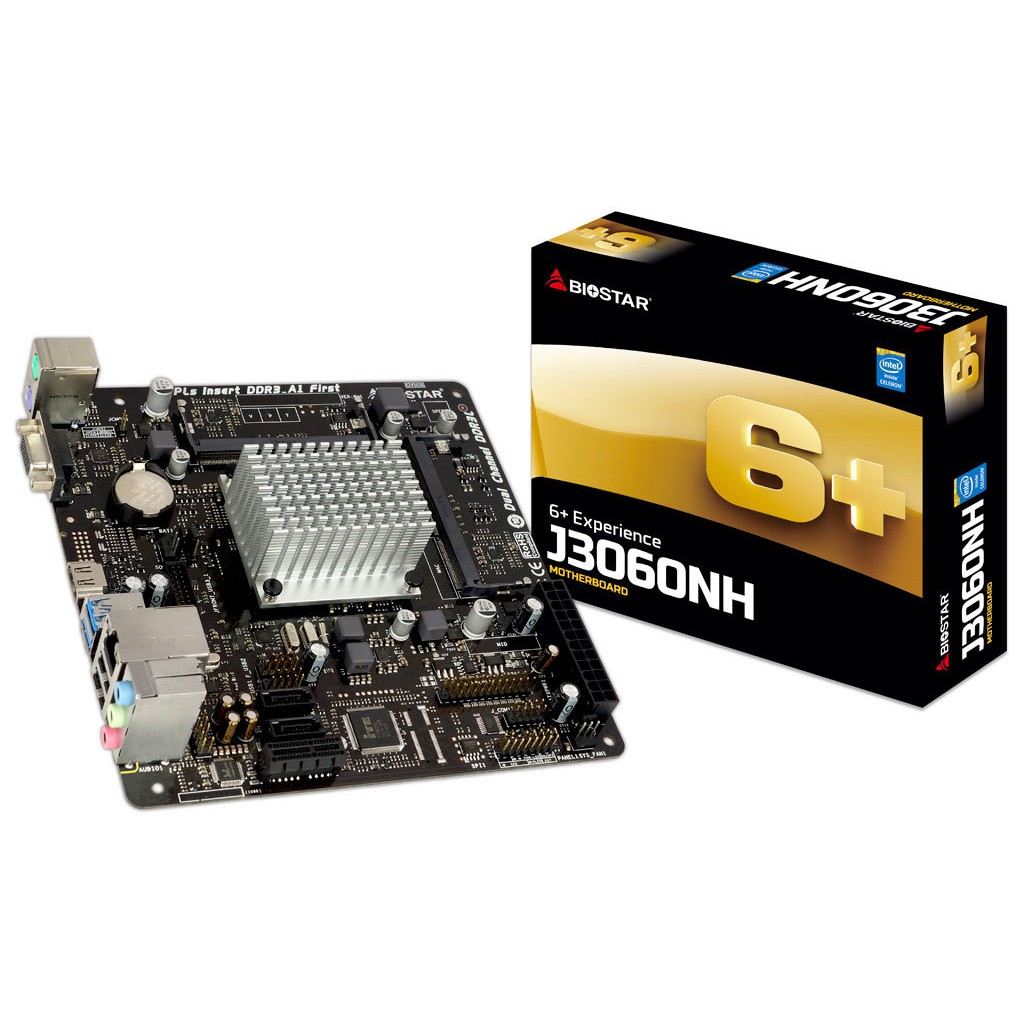

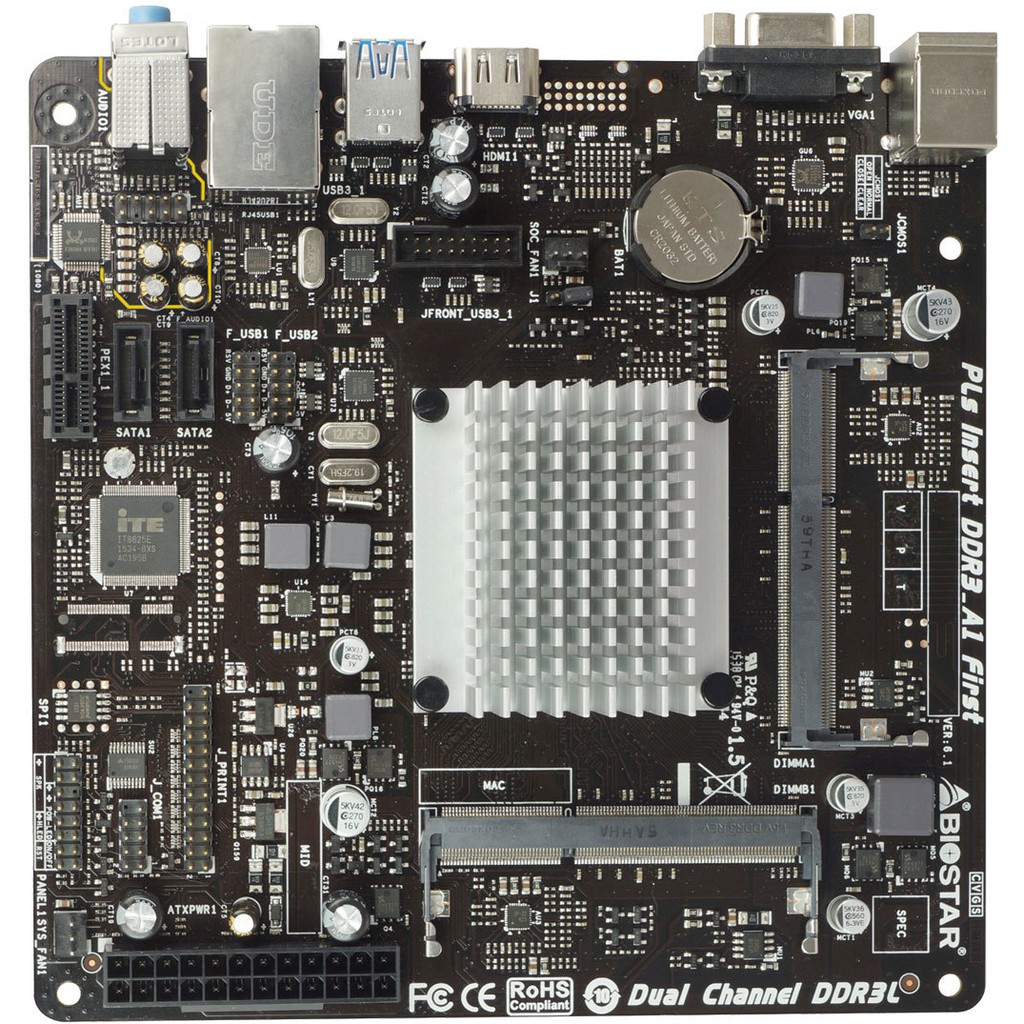

BIOSTAR Motherboard INTEL J3060NH Onboard Celeron J3060 Quad Core 2.48Ghz

Detail BIOSTAR Motherboard INTEL J3060NH Onboard Celeron J3060 Quad Core 2.48Ghz

Terima kasih Sudah berkunjung di Kurnia Abadi Semesta.
Demi kenyamanan bersama terkait harga, stock, warna, dll, harap konfirmasi terlebih dahulu sebelum order.
Terima kasih

J3060NH Ver. 6.x

CPU onboard

On board Intel Celeron J3060 Dual-core turbo boost up to 2.48G
Supports 2 SO-DIMM of DDR3L 1600/1066MHz up to 16G maximum capacity
Intel HD Graphics
Mini ITX (17*17cm ) for flexible use
Support HDMI multimedia port
Supports BIO-Remote 2 Technology
Supports Charger Booster Technology

Chipse
Braswell

CPU
Intel® Celeron J3060 Dual-core turbo boost up to 2.48G

MEMORY
Support Dual Channel DDR3L 1600/1066 MHz
2 x DDR3 SO-DIMM Memory Slot
Max. Supports up to 8GB Memory for DDR3L-1600 OR 16GB Memory for DDR3L-1066

INTEGRATED VIDEO
Intel HD Graphics
Supports DX11.1
Supports HDCP

STORAGE
2 x SATA III Connector

AUDIO CODEC
Realtek ALC662 6-Channel HD Audio

LAN
Realtek RTL8111H - 10/100/1000Mb/s Controller

USB
2 x USB 3.0 Port
1 x USB 3.0 Header
2 x USB 2.0 Port
2 x USB 2.0 Header

EXPANSION SLOT
1 x PCI-E 2.0 x1 Slot

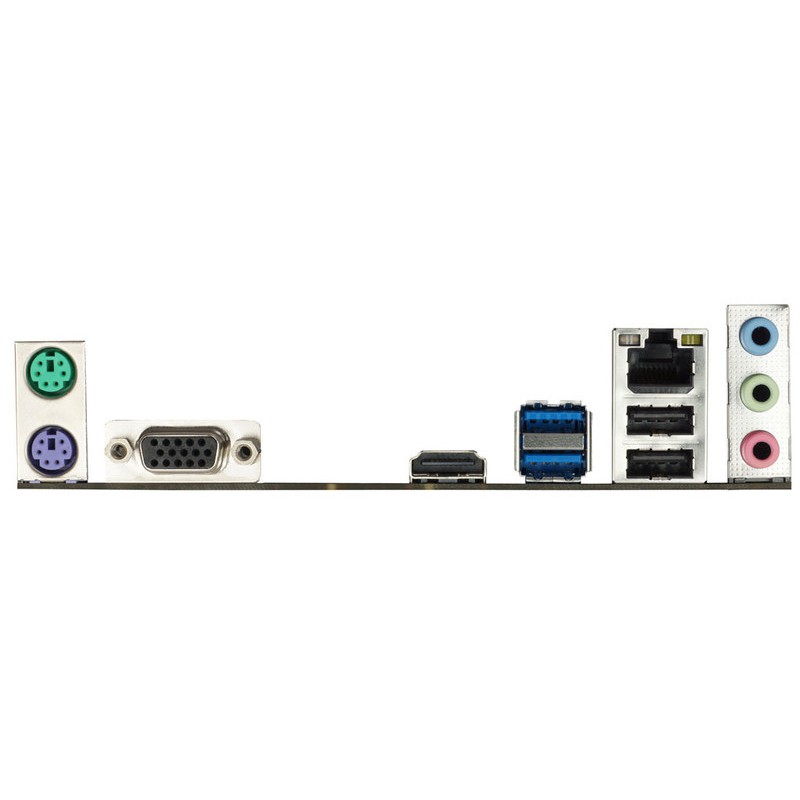

REAR I/O
1 x PS/2 Mouse
1 x PS/2 Keyboard
2 x USB 3.0 Port
2 x USB 2.0 Port
1 x HDMI Connector
1 x VGA Port
1 x LAN Port
3 x Audio Jacks

INTERNAL I/O
1 x USB 3.0 Header
2 x USB 2.0 Header
2 x SATA III Connector (6Gb/s)
1 x Front Audio Header
1 x Front Panel Header
2 x System Fan Connector
1 x COM Port Header
1 x Printer Port Header

H/W MONITORING
CPU / System Temperature Monitoring
System Fan Monitoring
System Voltage Monitoring

DIMENSION
Mini ITX Form Factor Dimension: 17cm x 17cm ( W x L )

OS SUPPORT
Supports Windows 7(x64) / 8.1(x64) / 10

BUNDLE SOFTWARE
BullGuard
BIO-Remote2
Smart Speed LAN

ACCESSORIES
2 x SATA Cable
1 x I/O Shield
1 x DVD Driver
1 x Quick Guide

Gambar produk
