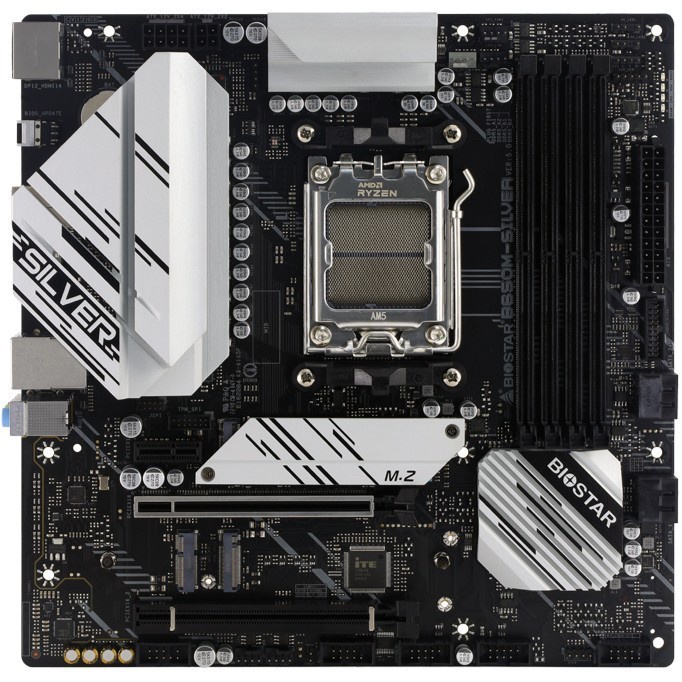

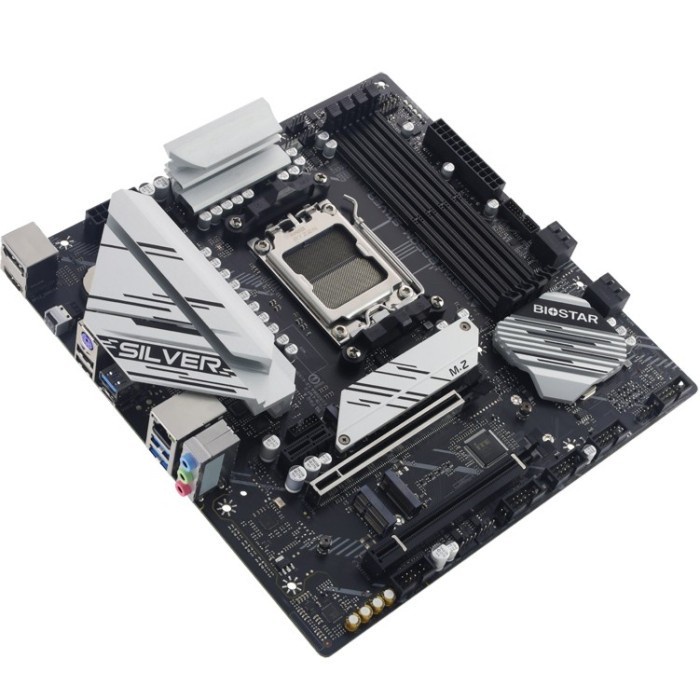

Biostar B650M-SILVER - Micro ATX Motherboard AM5 DDR5

Detail Biostar B650M-SILVER - Micro ATX Motherboard AM5 DDR5

B650M-SILVER Ver. 5.x

Socket : AM5
Supports Ryzen 7000 series processors (AM5)
AMD B650 Chip Architecture
Supports DDR5 Memory
Supports AMD EXPO™ Technology (Extended Profiles for Overclocking) & XMP
14 Phase & 90A Dr.MOS Power Design
1 PCIe 4.0 x16 slot
4 SATA3, 2 x M.2 (PCIe Gen4 x4)
Graphics Output Options: HDMI 1.4 & Display 1.2

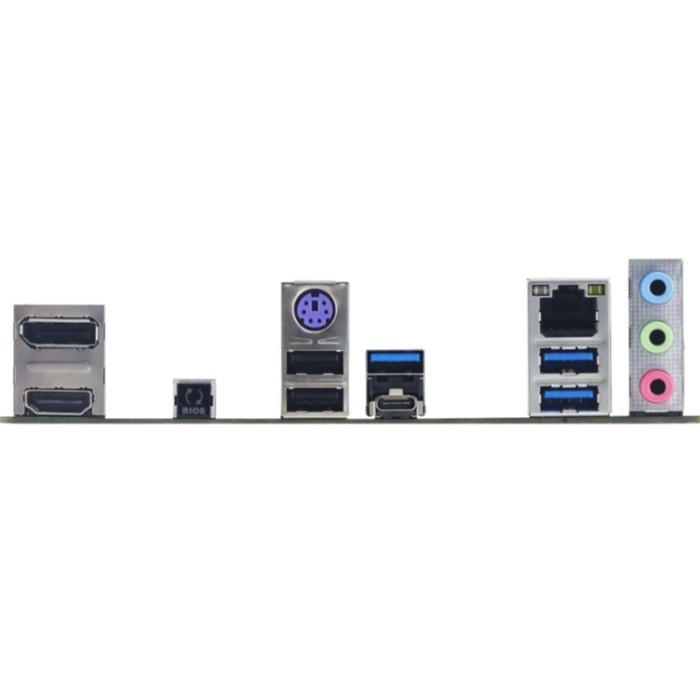

1 Rear USB 3.2 Gen2x2 Type-C, 1 Rear USB 3.2 Gen2 Type-A
Realtek® ALC1220 7.1 CH HD Audio Codec, Gold Audio Caps
Realtek® RTL8125B 2.5G Ethernet LAN Chip
Supports SMART BIOS UPDATE button & SMART BIOS UPDATE USB port

Chipset AMD B650

CPU SUPPORT Socket AM5 support AMD Ryzen™ 7000 series Processors
Support for future AMD Ryzen processors with BIOS update

MEMORY AMD Ryzen 7000 series Processors:
Supports Dual Channel DDR5 4800/ 5200/ 5400(OC)/ 5600(OC)/ 6000+(OC)
4 x DDR5 DIMM Memory Slot, Max. Supports up to 128 GB Memory
Each DIMM supports non-ECC 8/ 16/ 32 GB DDR5 module

INTERNAL I/O 4 x SATA III Connector (6Gb/s)
1 x M.2 (E Key) Socket : Supports 2230 type Wi-Fi & Bluetooth module
2 x USB 2.0 Header (each header supports 2 USB 2.0 ports)
1 x USB 3.2 (Gen2) Header (each header supports 2 USB 3.2 (Gen2) ports)
1 x 4-Pin Power Connector
1 x 8-Pin Power Connector
1 x 24-Pin Power Connector
1 x CPU Fan Connector
1 x CPU water cooling connector (CPU_OPT)
3 x System Fan Connector
1 x Front Panel Header
1 x Front Audio Header
1 x Internal Stereo Speaker Header
1 x Clear CMOS Header
1 x COM Port Header
1 x TPM Header
2 x LED Header (5V)
1 x LED Header (12V)
* M.2 (E key) Wi-Fi card is not provided

H/W MONITORING CPU / System Temperature Monitoring
Smart / Manual CPU Fan Control
CPU/DDR Voltage Monitoring

DIMENSION
Micro ATX Form Factor Dimension: 24.4cm x 24.4cm ( W x L )
