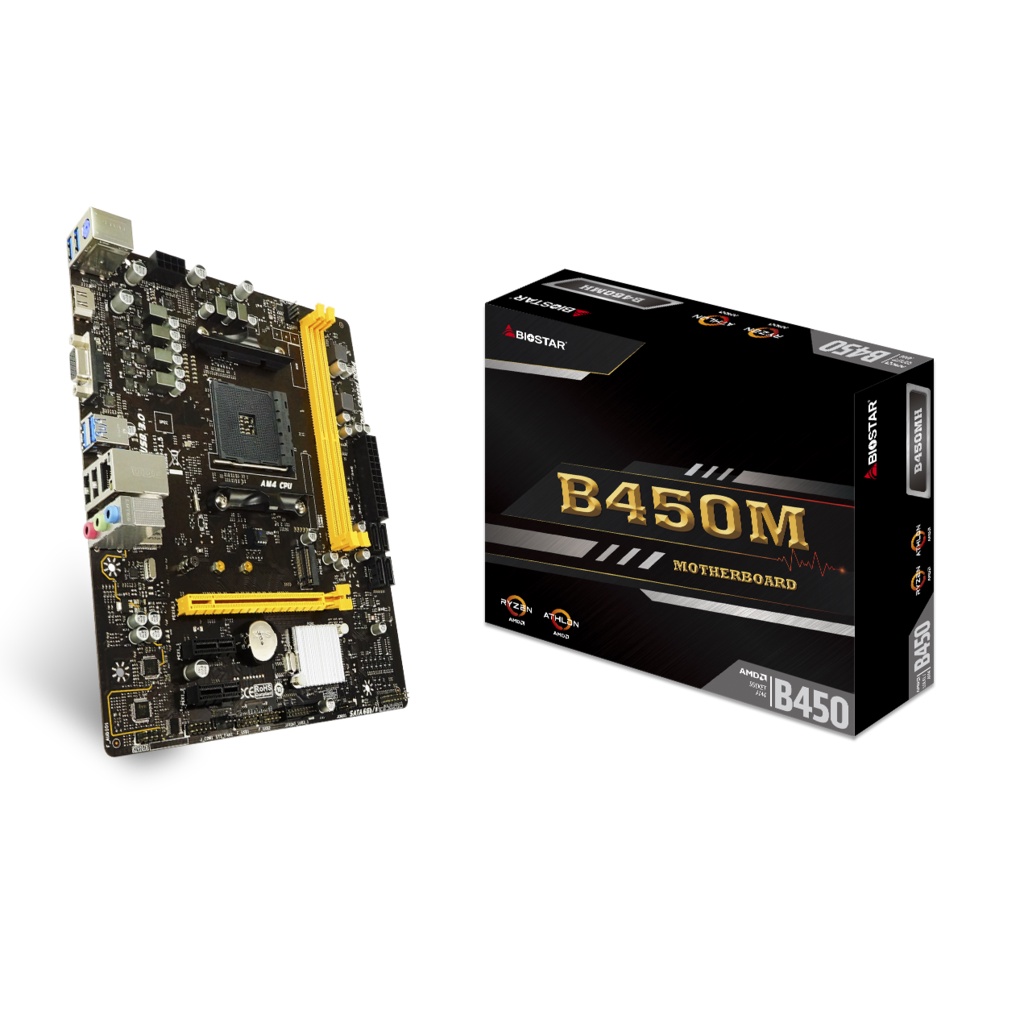

BIOSTAR Motherboard B450MH AMD B450 AM4 DDR4

Detail BIOSTAR Motherboard B450MH AMD B450 AM4 DDR4

Terima kasih Sudah berkunjung di Kurnia Abadi Semesta.
Demi kenyamanan bersama terkait harga, stock, warna, dll, harap konfirmasi terlebih dahulu sebelum order.
Terima kasih

B450MH Ver. 6.x
Socket : AM4

Supports AMD Ryzen CPU / APU
AMD B450 single chip architecture
Supports 2-DIMM DDR4-1866/ 2133/ 2400/ 2667/ 2933/ 3200(OC)
Supports Realtek Gigabit LAN
Supports USB 3.2 Gen1
Supports PCIe M.2
Supports HDMI

Chipset AMD B450
CPU SUPPORT
Supports AMD AM4 Socket for 3rd, 2nd and 1st Gen Ryzen/2nd and 1st Gen Ryzen with Radeon Vega
MEMORY
Support Dual Channel DDR4 1866/ 2133/ 2400/ 2667/ 2933/ 3200(OC) MHz
2 x DDR4 DIMM Memory Slot
Max. Supports up to 32GB Memory
Each DIMM supports non-ECC 8/16 GB DDR4 module
INTEGRATED VIDEO
By CPU model
Supports DX12
Supports HDCP
STORAGE
4 x SATA III Connectors (6Gb/s) :
- Supports AHCI & RAID 0, 1, 10
1 x M.2 (M Key) 32Gb/s Connector:
- Supports PCIe (32Gb/s) & SATA III (6Gb/s) SSD (Ryzen series - Summit Ridge / Pinnacle Ridge / Raven Ridge)
- Supports SATA III (6Gb/s) SSD (A-series APU - Bristol Ridge)
LAN
Realtek RTL8111H - 10/100/1000Mb/s Controller
Support Super LAN Surge Protection
AUDIO CODEC
ALC887
7.1 Channels, High Definition Audio
USB
6 x USB 3.2 Gen1 ports (4 on rear I/Os and 2 via internal headers)
6 x USB 2.0 ports (2 on rear I/Os and 4 via internal headers)
EXPANSION SLOT
2 x PCIe 2.0 x1 Slots
1 x PCIe 3.0 x16 Slot (When using APU, the bandwidth is x8 speed)

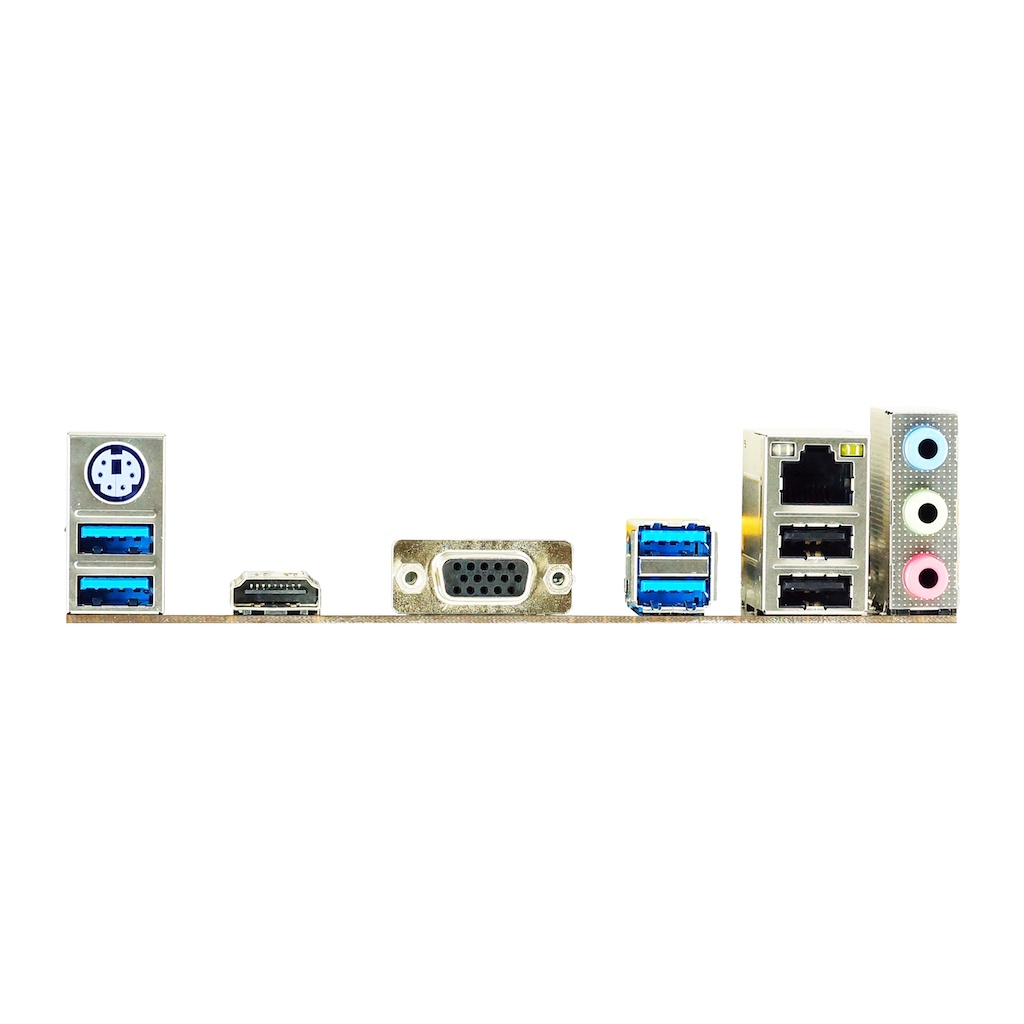

REAR I/O
1 x PS/2 Keyboard/Mouse
4 x USB 3.2 Gen1 (5Gb/s) Ports
2 x USB 2.0 Ports
1 x HDMI Port
1 x VGA Port
H/W MONITORING
CPU / System Temperature Monitoring
CPU / System Fan Monitoring
Smart / Manual CPU Fan Control
CPU/DDR Voltage Monitoring
DIMENSION
Micro ATX Form Factor Dimension: 19.8cm x 24.4cm ( W x L )
OS SUPPORT
Supports Windows 10(64bit) / 11(64bit)
Windows 7(64bit) for Bristol Ridge/ Summit Ridge/ Pinnacle Ridge only7(64bit) / 10(64bit)
1 x LAN Port
3 x Audio Jacks

Gambar produk
