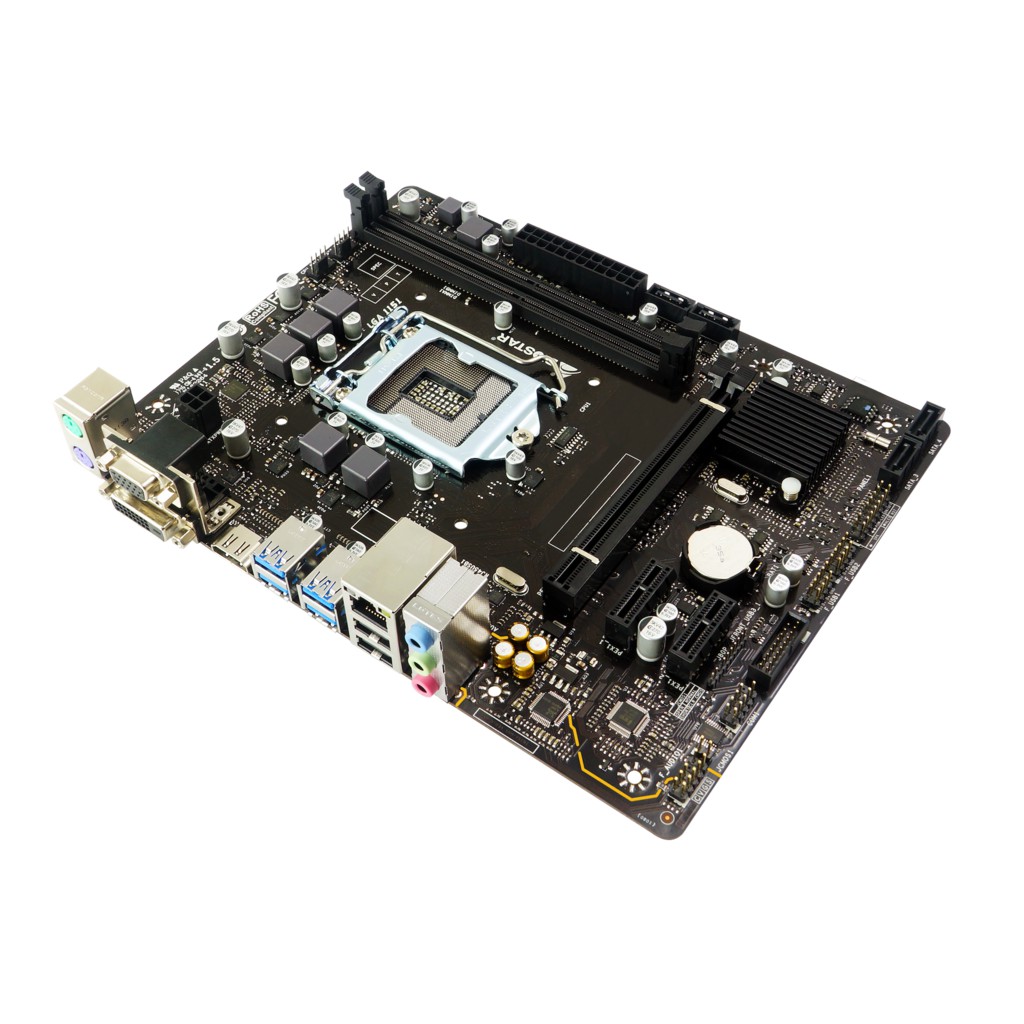

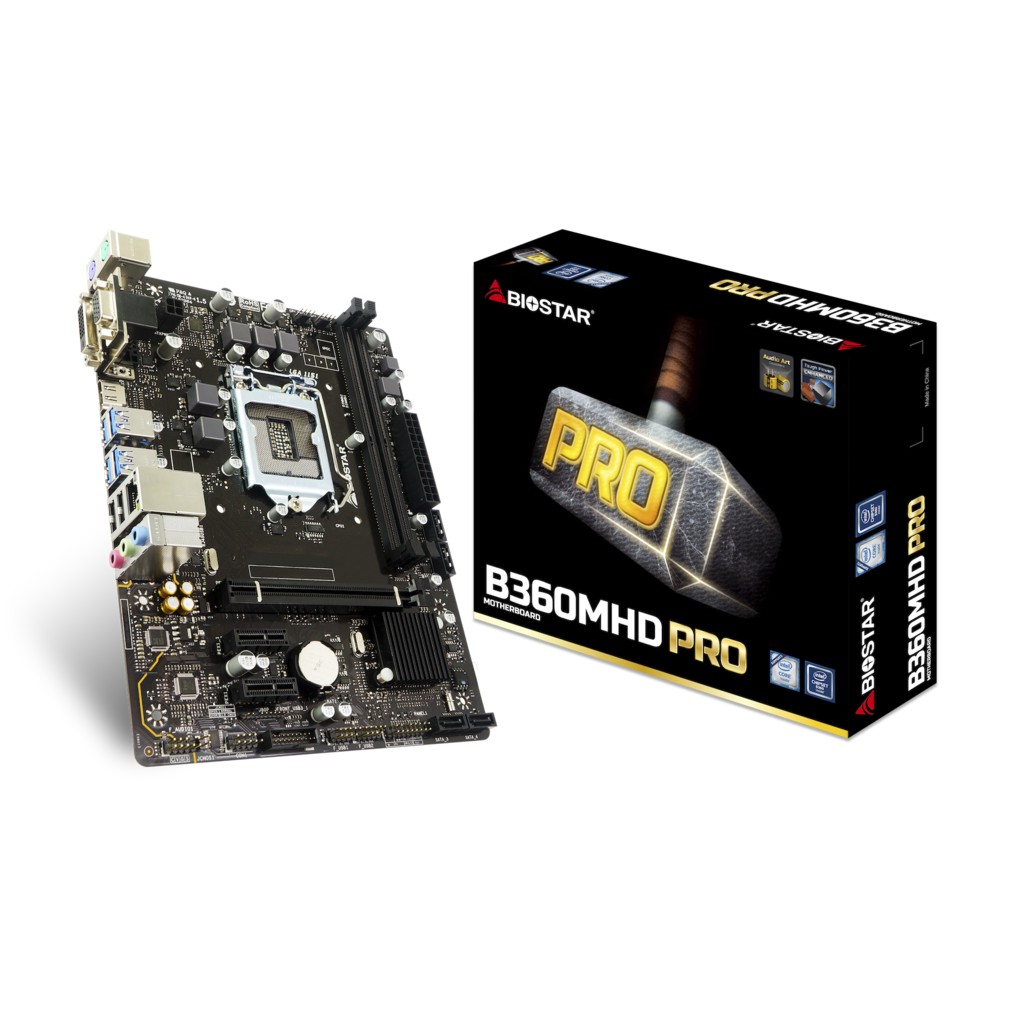

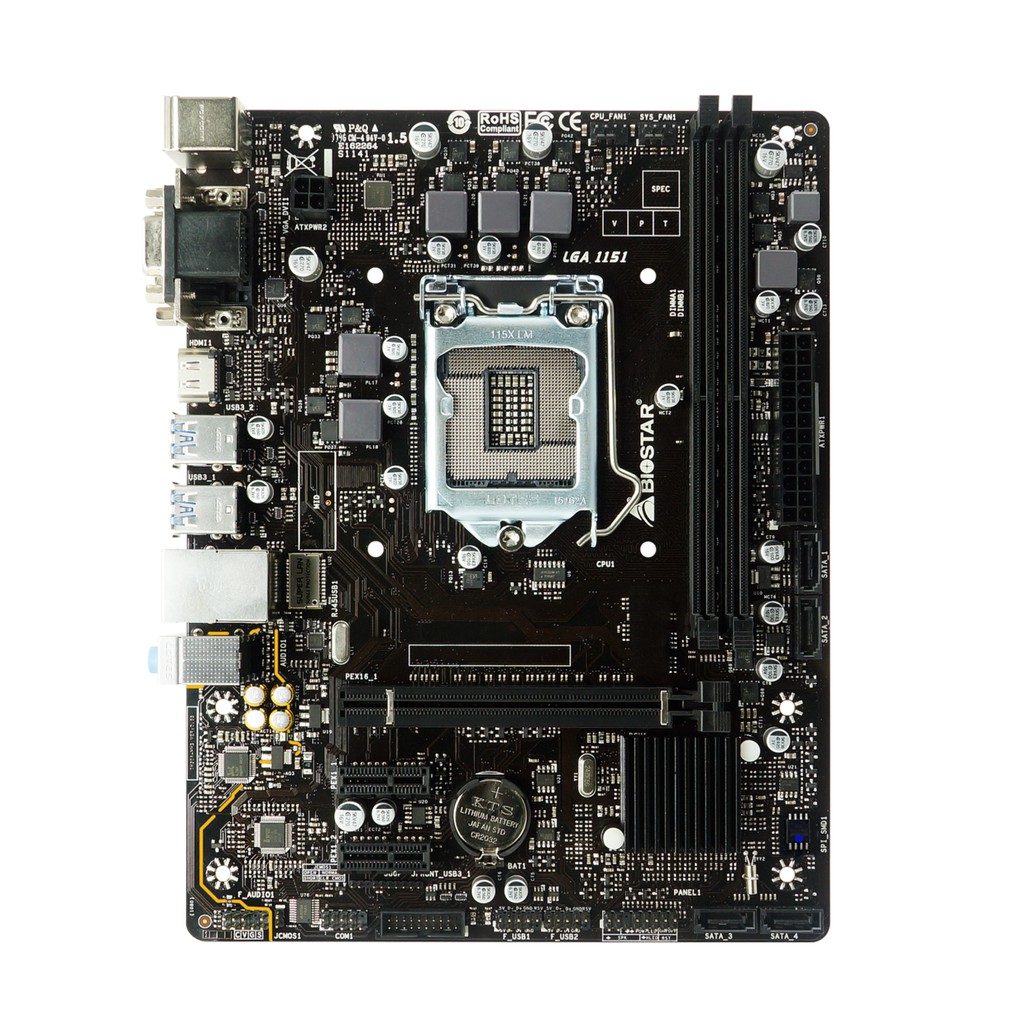

BIOSTAR Motherboard B360MHD PRO LGA1151 Intel B360 DDR4

Detail BIOSTAR Motherboard B360MHD PRO LGA1151 Intel B360 DDR4

Terima kasih Sudah berkunjung di Kurnia Abadi Semesta.
Demi kenyamanan bersama terkait harga, stock, warna, dll, harap konfirmasi terlebih dahulu sebelum order.
Terima kasih

B360MHD PRO Ver. 6.x
Socket : 1151
Supports 9th & 8th Generation Intel® Core™ Processor
Intel B360 single chip architecture
Support 2-DIMM DDR4-1866/ 2133/ 2400/ 2666 up to 32G maximum capacity
Support USB 3.1 Gen1
Support HDMI display port
Support GbE LAN
Chipset
Intel B360

CPU SUPPORT
9th Gen Intel® Core™ i9 LGA 1151 Processor
9th Gen Intel® Core™ i7 LGA 1151 Processor
9th Gen Intel® Core™ i5 LGA 1151 Processor
9th Gen Intel® Core™ i3 LGA 1151 Processor
8th Gen Intel® Core™ i7 LGA 1151 Processor
8th Gen Intel® Core™ i5 LGA 1151 Processor
8th Gen Intel® Core™ i3 LGA 1151 Processor
8th Gen Intel® Pentium® LGA 1151 Processor
8th Gen Intel® Celeron® LGA 1151 Processor
Maximum CPU TDP (Thermal Design Power) : 95Watt

MEMORY
Support Dual Channel DDR4 1866/2133/2400/2666 MHz
2 x DDR4 DIMM Memory Slot
Max. Supports up to 32GB Memory

STORAGE
4 x SATA III Connectors (6Gb/s)

USB
6 x USB 3.1 Gen1 Ports(4 on rear I/Os and 2 via internal header)
1 x USB 3.1 Gen1 Header
6 x USB 2.0 Ports(2 on rear I/Os and 4 via internal header)
2 x USB 2.0 Header

EXPANSION SLOT
1 x PCI-E 3.0 x16 Slot
2 x PCI-E 3.0 x1 Slots

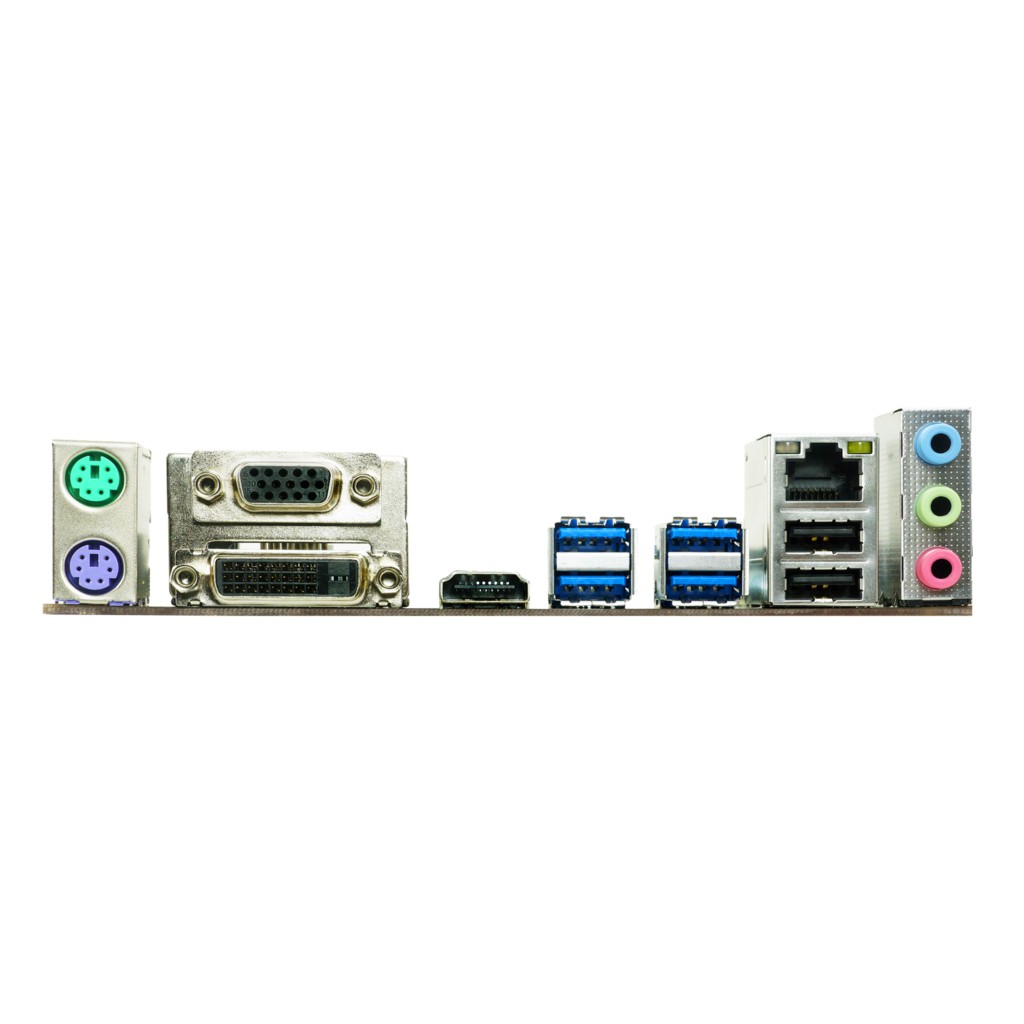

INTERNAL I/O
1 x USB 3.1 Gen1 Header(each header supports 2 USB 3.1(Gen1) ports)
2 x USB 2.0 Headers(each header supports 2 USB 2.0 ports)
4 x SATA III Connector (6Gb/s)
1 x Front Audio Header
1 x Front Panel Header
1 x CPU Fan Connector
1 x System Fan Connector
1 x Clear CMOS Header
1 x COM Port Header

H/W MONITORING
CPU / System Temperature Monitoring
CPU / System Fan Monitoring
Smart / Manual CPU Fan Control
System Voltage Monitoring

DIMENSION
Micro ATX Form Factor Dimension: 22.8 cm x 17.7 cm ( W x L ) ( W x L )

ACCESSORIES
1 x SATA Cable
1 x I/O Shield
1 x DVD Driver
1 x User Manual

Gambar produk
