BIOSTAR Motherboard A68MHE AMD A68H FM2+ DDR3 Micro ATX

Detail BIOSTAR Motherboard A68MHE AMD A68H FM2+ DDR3 Micro ATX

Terima kasih Sudah berkunjung di Kurnia Abadi Semesta.
Demi kenyamanan bersama terkait harga, stock, warna, dll, harap konfirmasi terlebih dahulu sebelum order.
Terima kasih

A68MHE Ver. V7.x
Socket : FM2+
Support AMD Socket FM2+ Athlon™/A- Series Processors
AMD AMD A68H Chipset
Support 2-DIMM DDR3-2600(OC) up to 32G maximum capacity
Support USB 3.2
Support HDMI
Support GbE LAN
AMD Dual Graphics Technology

Chipset AMD A68H
CPU SUPPORT AMD FM2+ A-series APU
Maximum CPU TDP (Thermal Design Power) : 100Watt

MEMORY Support Dual Channel DDR3 800/ 1066/ 1333/ 1600/ 1866/ 2133/ 2400(OC)/ 2600(OC) MHz
2 x DDR3 DIMM Memory Slot
Max. Supports up to 32GB Memory

INTEGRATED VIDEO By CPU model
Supports DX12
Supports HDCP
AMD Dual Graphics Technology

STORAGE 4 x SATA III Connectors (6Gb/s) : Supports AHCI & RAID 0, 1, 10
LAN Realtek RTL8111H - 10/100/1000Mb/s Controller
AUDIO CODEC Realtek ALC662 6-Channel HD Audio
USB 2 x USB 3.2 Gen1 Port (5Gb/s) (2 on rear I/Os)
6 x USB 2.0 Port(2 on rear I/Os and 4 via internal headers)

EXPANSION SLOT 1 x PCI-E 3.0 x16 Slot
1 x PCI-E 2.0 x1 Slot

REAR I/O 1 x PS/2 Mouse
1 x PS/2 Keyboard
2 x USB 3.2 Gen1 (5Gb/s) Port
2 x USB 2.0 Port
1 x HDMI Connector
1 x VGA Port
1 x LAN Port
3 x Audio Jacks

INTERNAL I/O 2 x USB 2.0 Header(each header supports 2 USB 2.0 ports)
4 x SATA III Connector (6Gb/s)
1 x Front Audio Header
1 x Front Panel Header
1 x CPU Fan Connector
1 x System Fan Connector
1 x 4-Pin Power Connector
1 x 24-Pin Power Connector
1 x Clear CMOS Header

H/W MONITORING CPU / System Temperature Monitoring
CPU / System Fan Monitoring
Smart / Manual CPU Fan Control
CPU/DDR Voltage Monitoring
DIMENSION Micro ATX Form Factor Dimension: 21.5 cm x 17 cm ( W x L )
OS SUPPORT Supports Windows XP/ 7/ 8/ 8.1(64bit)/ 10(64bit)
ACCESSORIES 2 x SATA Cable
1 x I/O Shield
1 x DVD Driver
1 x Quick Guide

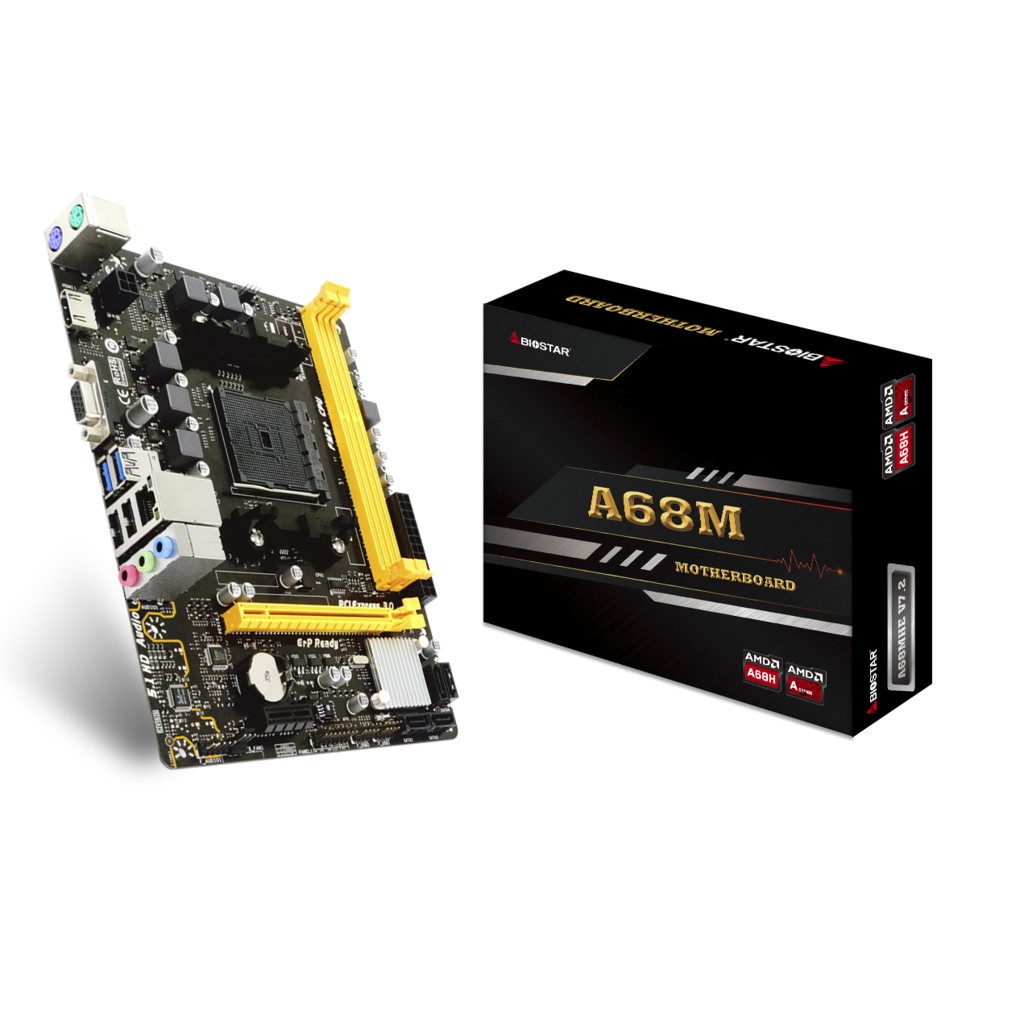

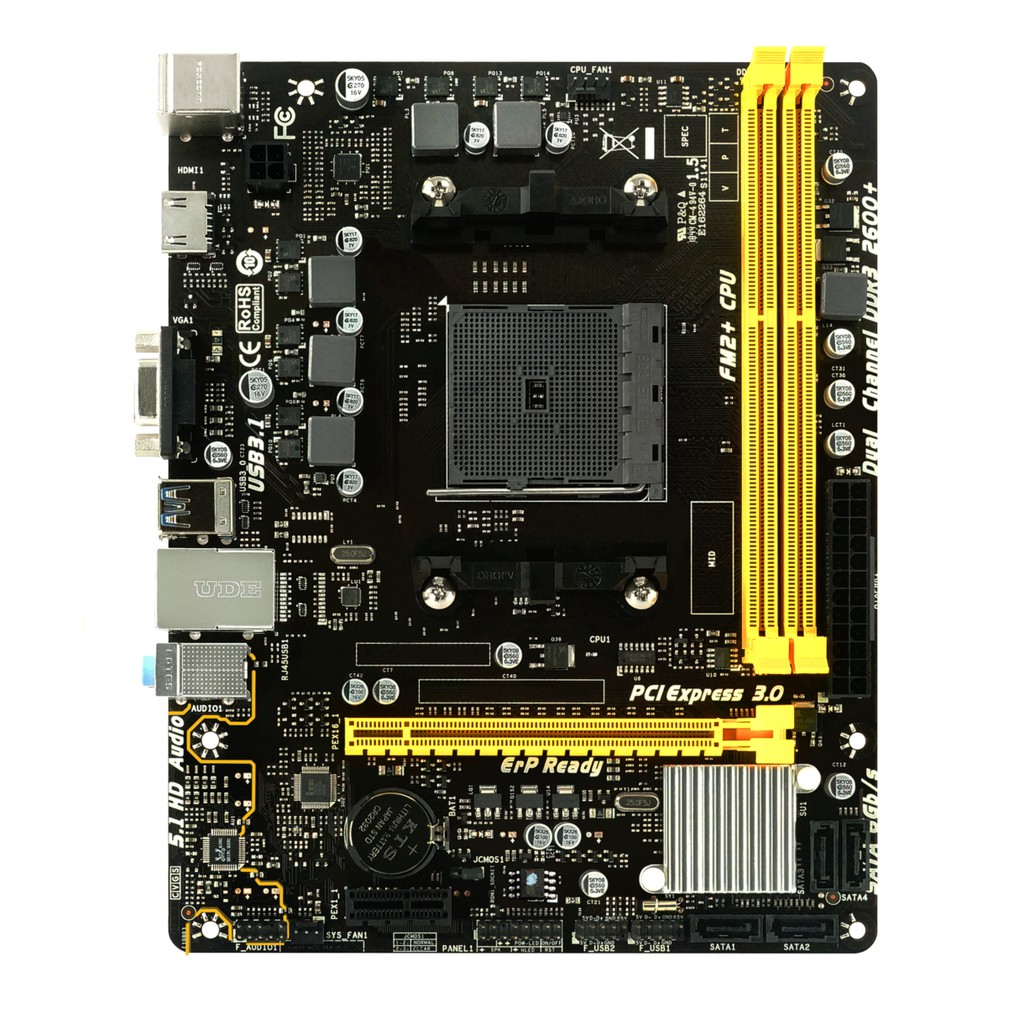

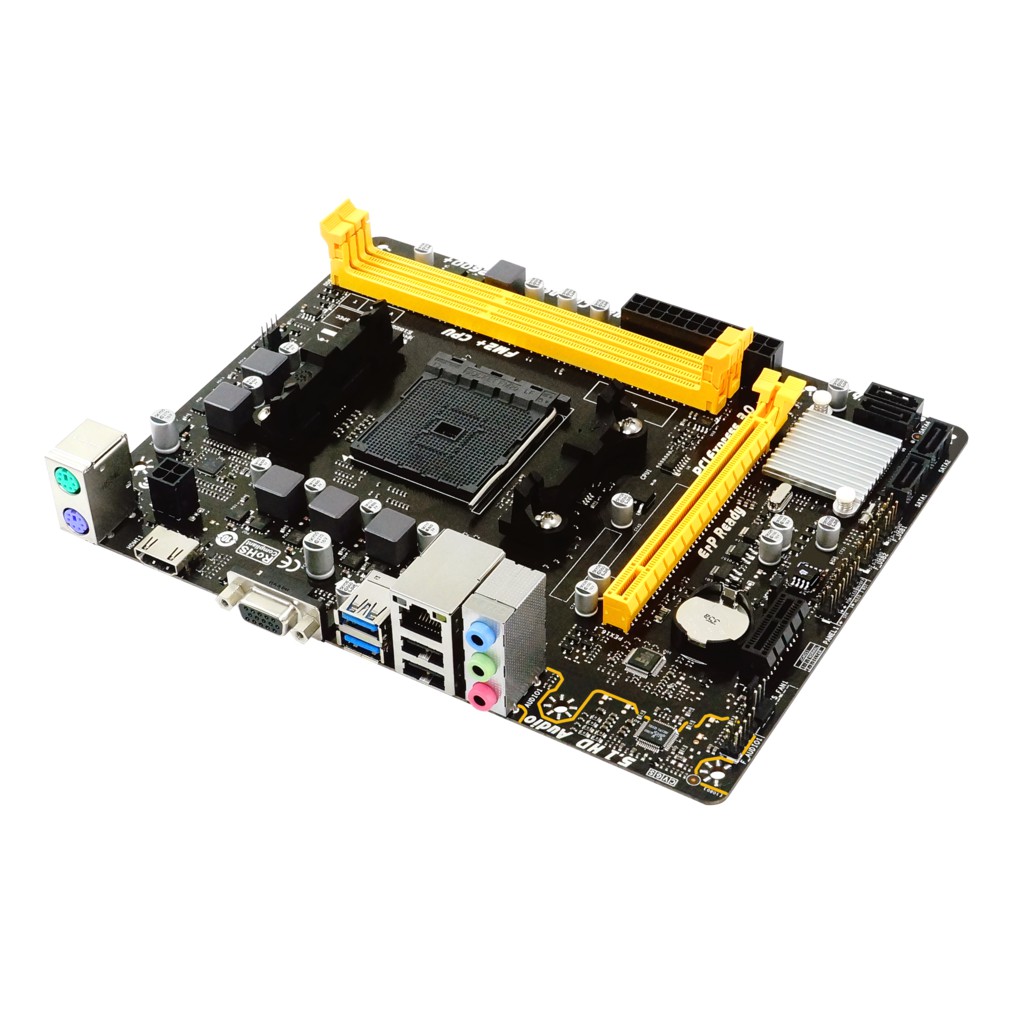

Gambar produk
