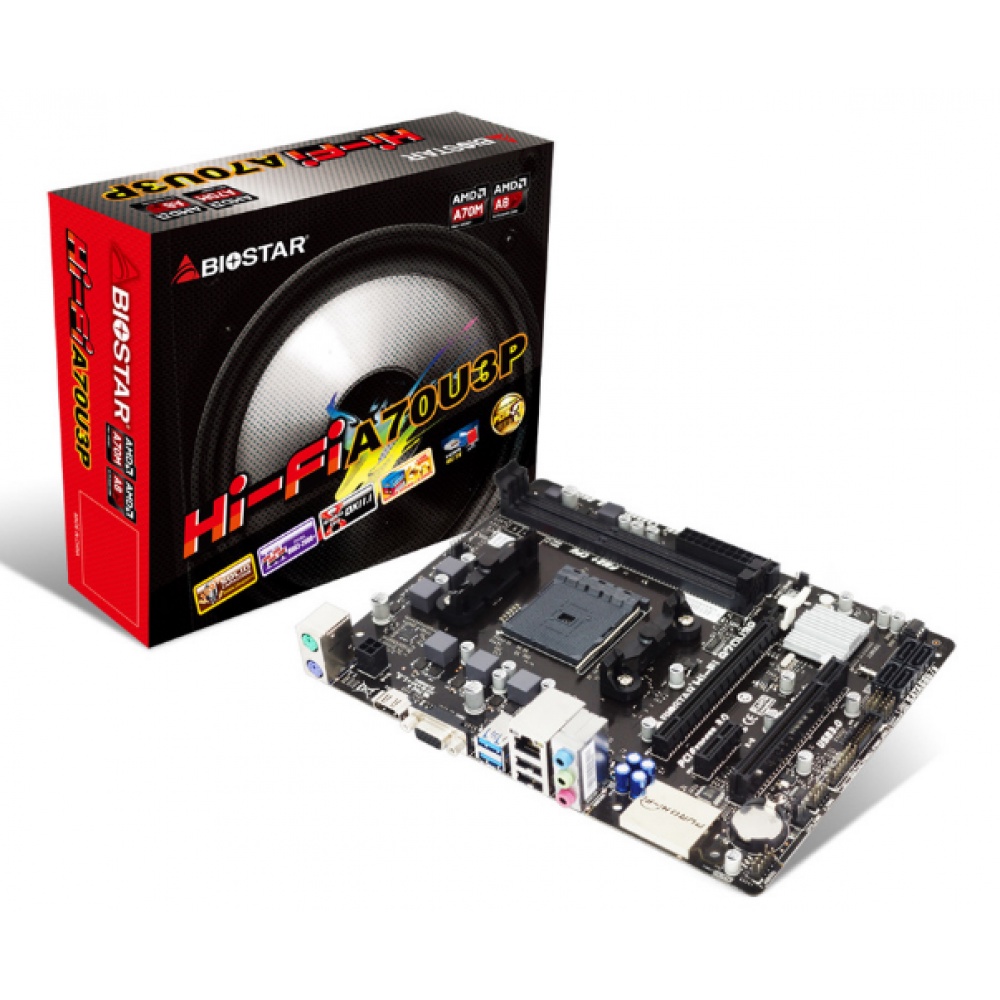

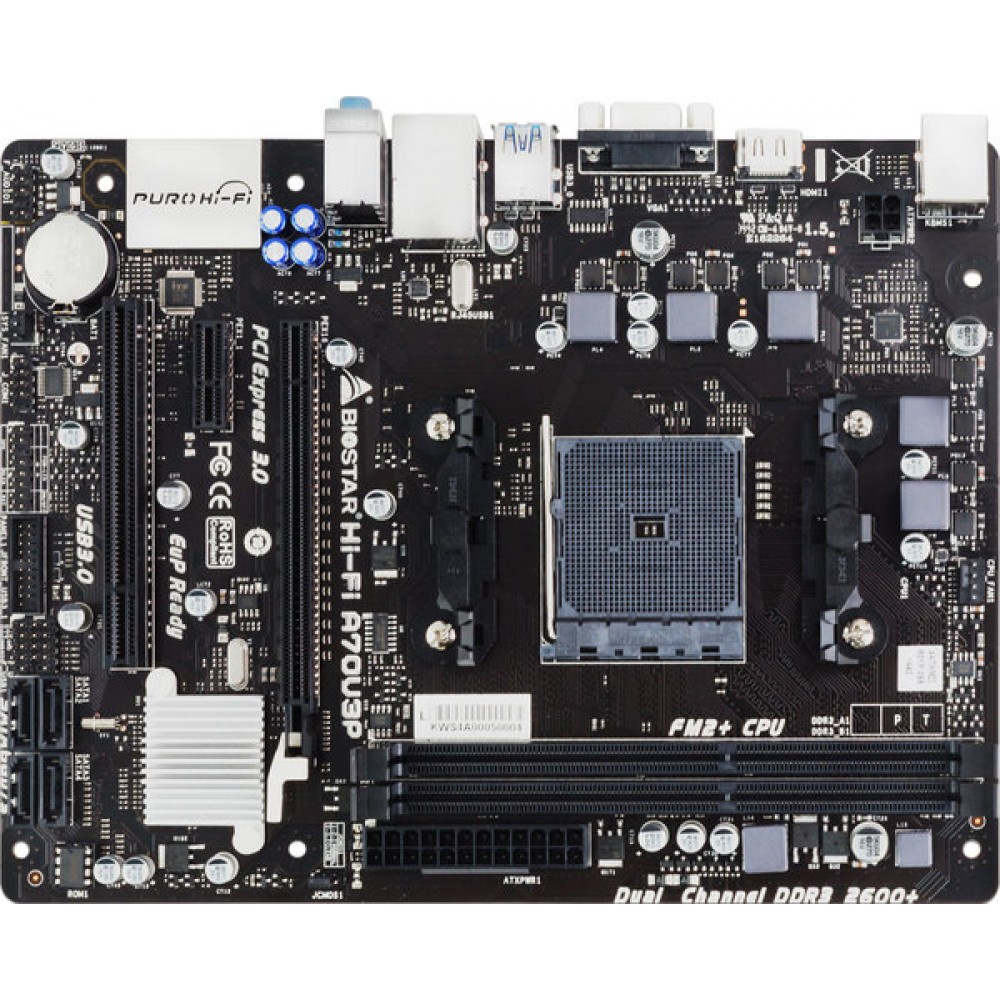

BIOSTAR Hi-Fi A70U3P

Detail BIOSTAR Hi-Fi A70U3P

Supported Socket FM2+/FM2 processors
AMD A-series/ E2-series processor
Supported AMD Mutil Core(x4,x2)
AMD 100W processor support
AMD A70M Chipset
2 DIMM supported DDR3-2600(OC)/
2400(OC)/ 2133/ 1866/ 1600/ 1333/
1066/ 800
Biostar PURO Hi-Fi Power Amplifier
2 x USB 3.0 Port
1 x USB 3.0 Header
100% Solid capacitor
Support Super LAN Surge Protection
GbE LAN
HDMI 4K2K & VGA Connector
4 x SATA3 6Gb/s Connector
BIOSTAR Hi-Fi Technology
AMD Dual Graphics Technology
Super LAN Surge Protection

Specification :

Chipset

AMD A70M

CPU SUPPORT

AMD A10 Processor
AMD A8 Processor
AMD A6 Processor
AMD A4 Processor
AMD E2 Processor
AMD Athlon II X4 Processor
Maximum CPU TDP (Thermal Design Power) : 100Watt

MEMORY

Support Dual Channel DDR3 2600(OC)/2400(OC)/2133/1866/1600/1333/1066/800 MHz
2 x DDR3 DIMM Memory Slot
Max. Supports up to 32GB Memory

EXPANSION SLOT

1 x PCI-E x16 3.0 Slot(supported by FM2+ CPU)
1 x PCI-E x1 2.0 Slot
1 x PCI Slot

STORAGE

4 x SATA3 Connector
Support SATA RAID: 0,1,10

USB

2 x USB 3.0 Port
1 x USB 3.0 Header
2 x USB 2.0 Port
2 x USB 2.0 Header

LAN

Realtek RTL8111G - 10/100/1000 Controller
Support Super LAN Surge Protection

MULTI GRAPHICS

-

INTEGRATED VIDEO

By CPU model
AMD Dual Graphics Technology
Supports DX11.1
Supports HDCP

CODEC

Realtek ALC662 6-Channel HD Audio
