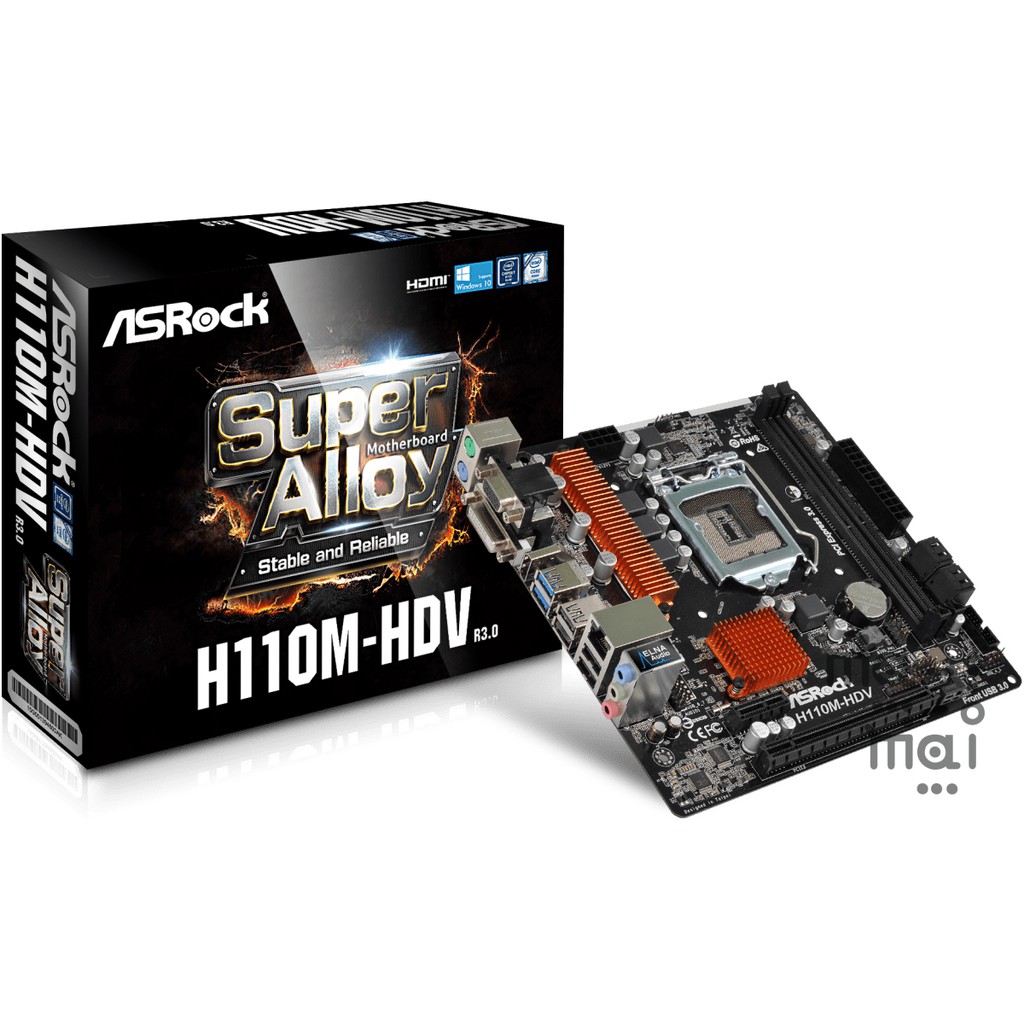

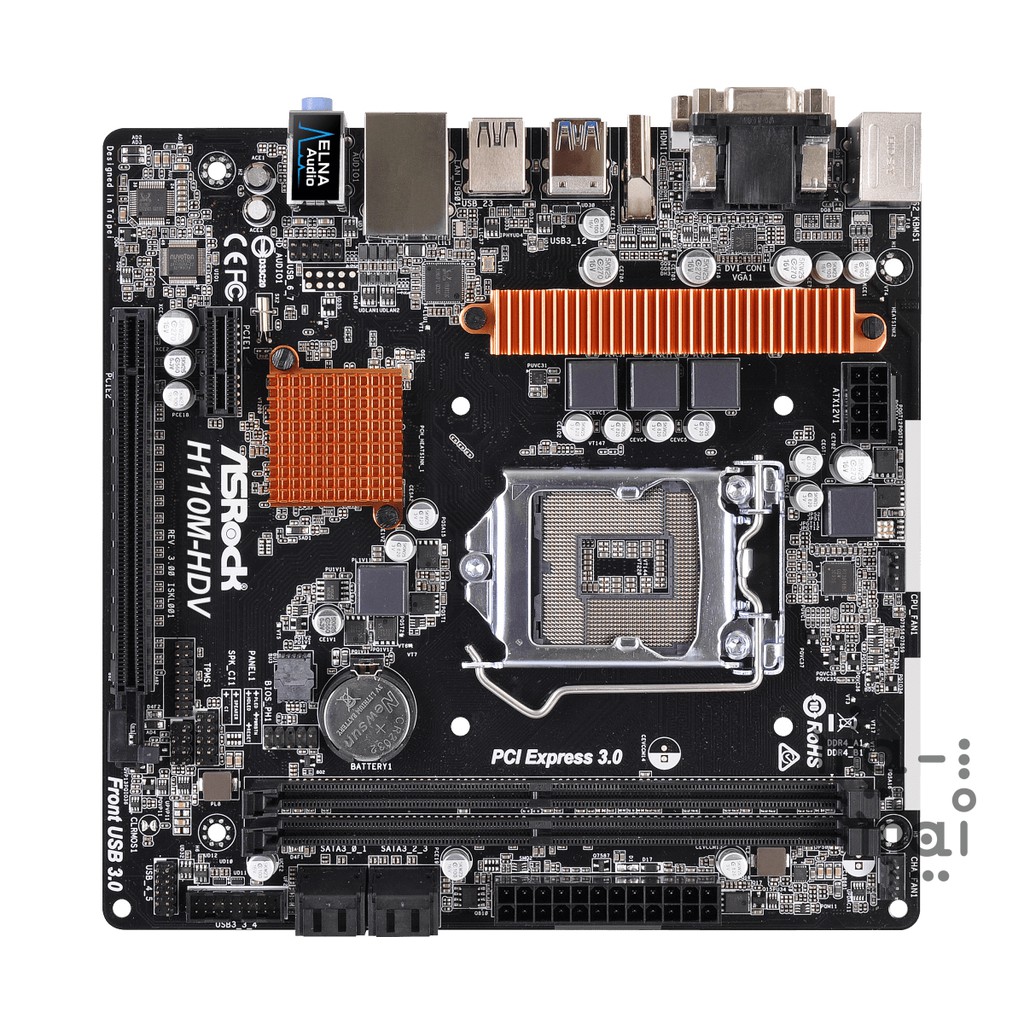

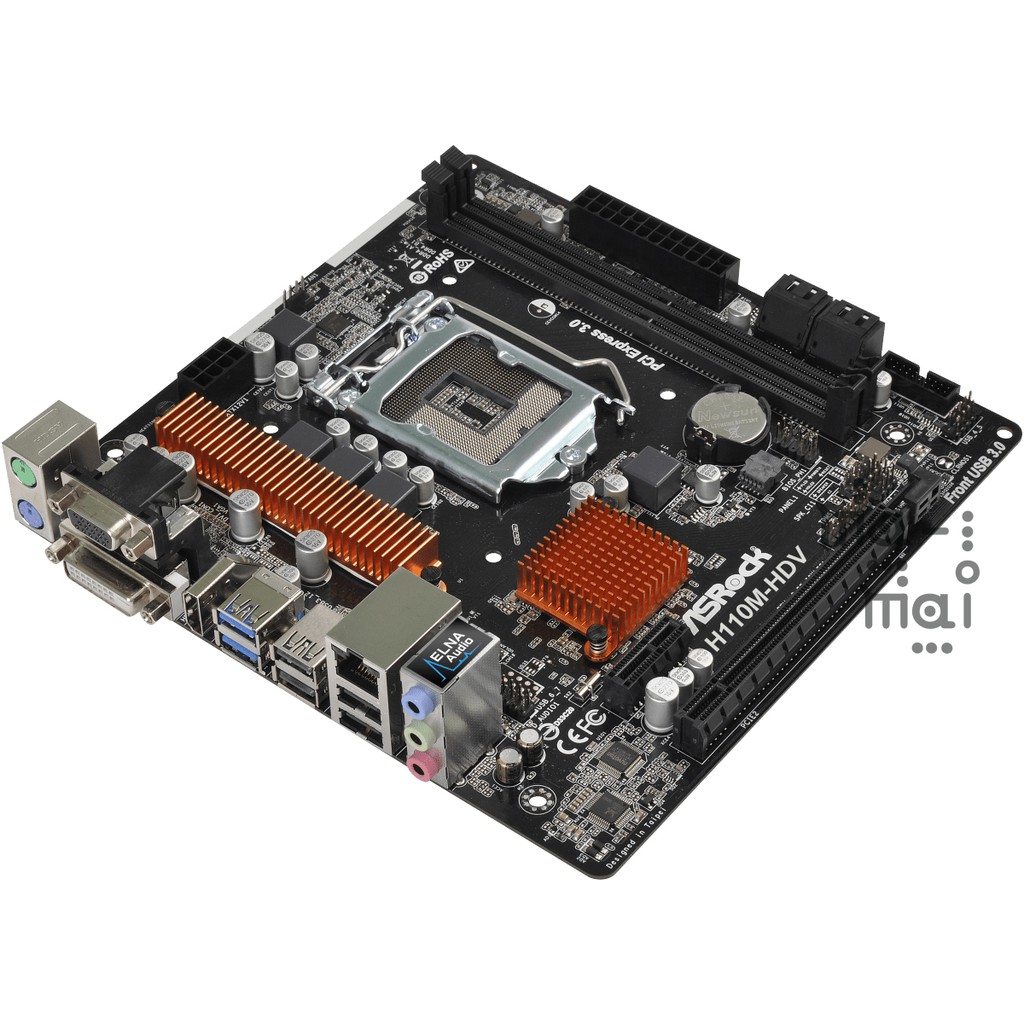

ASROCK MOTHERBOARD Intel-H110 Micro ATX H110M-HDV R3.0

Detail ASROCK MOTHERBOARD Intel-H110 Micro ATX H110M-HDV R3.0

H110M-HDV R3.0

ASRock Super Alloy
Supports 7th and 6th Generation Intel® Core™ Processors (Socket 1151)
*8th Gen Intel® Core™ desktop processors are supported with Intel® 300 Series chipset motherboards only
Supports DDR4 2133
1 PCIe 3.0 x16, 1 PCIe 2.0 x1

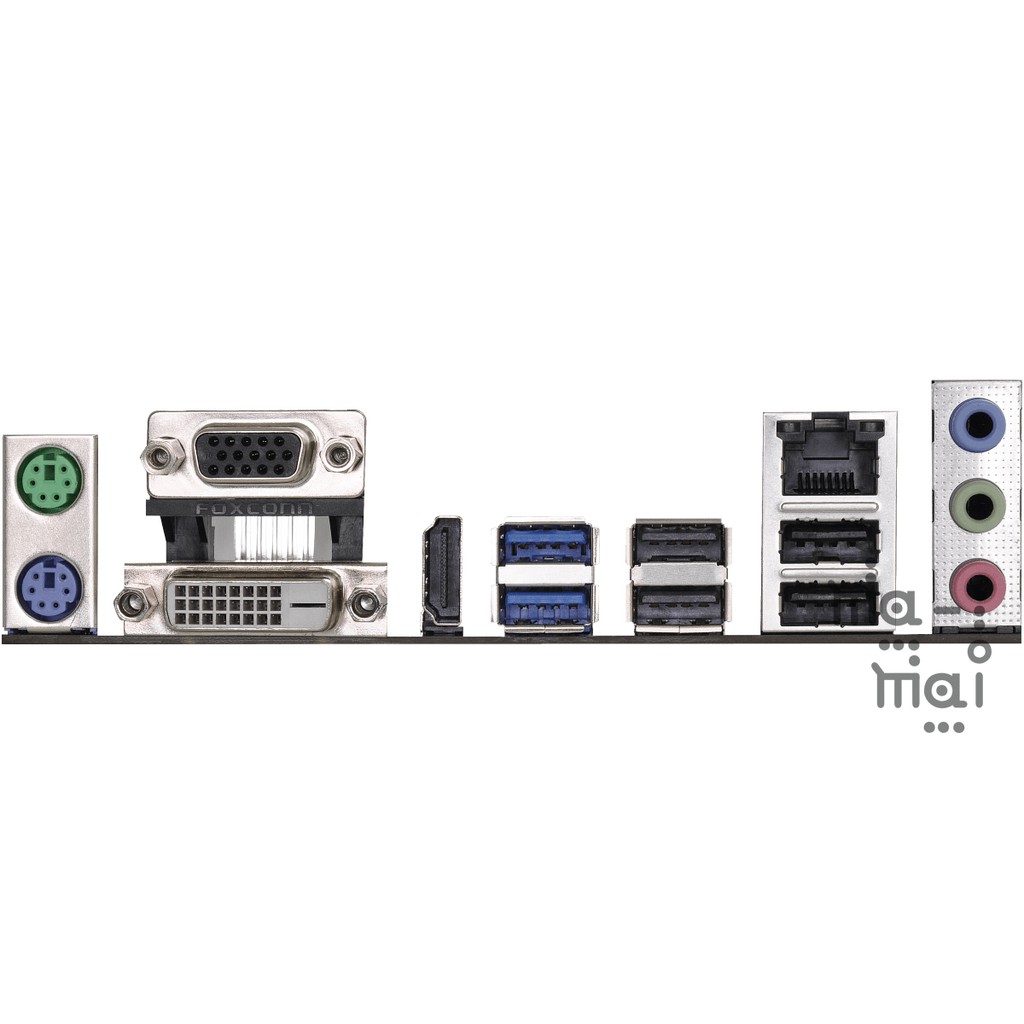

Graphics Output Options: DVI-D, D-Sub, HDMI
7.1 CH HD Audio (Realtek ALC887 Audio Codec), ELNA Audio Caps
4 SATA3
4 USB 3.1 Gen1 (2 Front, 2 Rear)
Supports Full Spike Protection, ASRock Live Update & APP Shop

Specification

Unique Feature
ASRock Super Alloy
- High Density Glass Fabric PCB
ASRock Full Spike Protection
ASRock Live Update & APP Shop
CPU
- Supports 7th and 6th Generation Intel® Core™ i7 / i5 / i3 / Pentium® / Celeron® Processors (Socket 1151)
- 4 Power Phase design
- Supports CPU up to 95W
- Supports Intel® Turbo Boost 2.0 Technology
Chipset
- Intel® H110
Memory
- Dual Channel DDR4 Memory Technology
- 2 x DDR4 DIMM Slots
- Supports DDR4 2400/2133 non-ECC, un-buffered memory*
- Supports ECC UDIMM memory modules (operate in non-ECC mode)
- Max. capacity of system memory: 32GB**
- Supports Intel® Extreme Memory Profile (XMP) 2.0

*7th Gen Intel® CPU supports DDR4 up to 2400; 6th Gen Intel® CPU supports DDR4 up to 2133.

**Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.
BIOS
- 64Mb AMI UEFI Legal BIOS with multilingual GUI support
- ACPI 5.0 Compliant wake up events
- SMBIOS 2.7 Support
- DRAM, PCH 1.0V Voltage Multi-adjustment
Graphics
- Supports Intel® HD Graphics Built-in Visuals : Intel® Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel® InTru™ 3D, Intel® Clear Video HD Technology, Intel® Insider™, Intel® HD Graphics 510/530/630
- Pixel Shader 5.0, DirectX 12
